Installing Hydraulic Cylinder

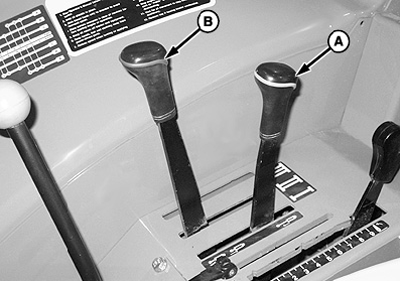

P15253C-UN-11AUG10

A - SCV I Lever

B - SCV II Lever

CAUTION: Before connecting or disconnecting tractor hoses, release the tractor's hydraulic system pressure. To do this, stop the engine and move the remote hydraulic cylinder control lever forward and backward several times.

1.
   P5926-UN-20APR94

   Install and secure the remote cylinder on the plow.

---




2.
   P3744-UN-21MAR94

   Thoroughly clean the hose ends, connect them to coupler (A) and bleed the air trapped in the cylinder. (See the tractor Operator's Manual.)

   Hoses can be connected to either side of the safety coupling as needed by the operator.

   IMPORTANT: Make sure the hoses are securely installed in the coupling.

---
