Every 10 Hours or Daily

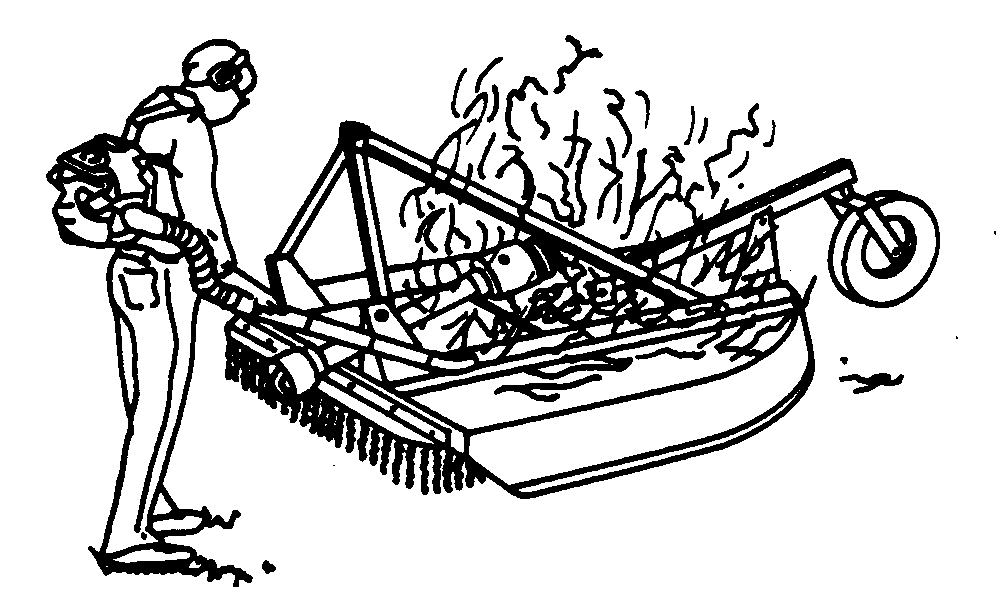

Keep Cutter Clean

IMPORTANT:

W14599
W14599-UN-05OCT88

Avoid machine damage due to build up of debris on cutter deck. Remove cuttings from deck DAILY or more often if necessary.

Accumulation of material on deck surface can interfere with driveline and cause gear case to overheat (resulting in component damage). Accumulated material can cause the deck to corrode due to moisture in material.

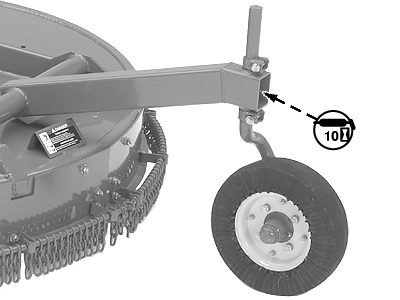

Tailwheel Pivot

W07374
W07374-UN-17MAY05


Check Gear Case Oil Level

CAUTION: Before servicing machine refer to LUBRICATING AND MAINTAINING MACHINE SAFELY at the beginning of this section.

W09183
W09183-UN-28NOV07

W03432
W03432-UN-07JUN99

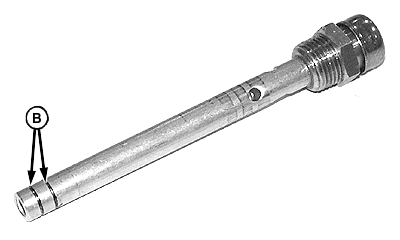

A - Dipstick

B - Lines

Remove dipstick (A). The acceptable oil level is between lines (B). Add John Deere GL-5 Gear Lubricant, or equivalent, if necessary.

OUO6038,0001D3D-19-20100818
