Using Slip Clutch Storage Feature

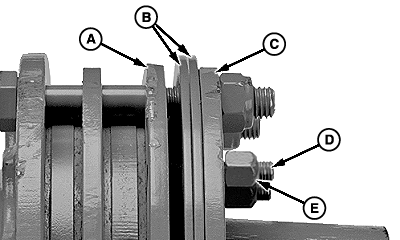

W08626-UN-15MAY07

A - Thrust Plate

B - Belleville Springs

C - Backup Plate

D - Threaded Stud, M8 (4 used)

E - Lock Nut, M8 (4 used)

This slip clutch has a feature to release spring tension on the internal parts to prevent the friction disks from bonding to the steel clutch disks during storage.

Tighten all four M8 lock nuts (E) onto threaded studs (D) until thrust plate (A) compresses belleville springs (B) against backup plate (C). This relieves pressure on the friction disks.

To return clutch to service, it is important to make sure the clutch will slip. (See AS REQUIRED in Lubrication and Maintenance section.)
