Attaching Cutter to Tractor with Three-Point Hitch

1. CAUTION: To avoid bodily injury or machine damage whenever an implement is attached, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation.

   Do not stand between tractor and implement.

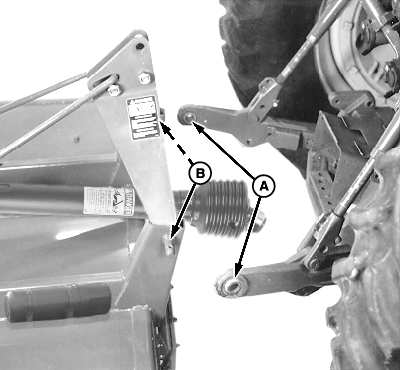

   W08372-UN-10NOV06

   A - Draft Links

   B - Hitch Pins

   Back tractor up to cutter aligning draft links (A) and cutter hitch pins (B).

---




2. Engage tractor parking brake and/or place transmission in PARK.

3. Shut off tractor engine and remove key.

4.

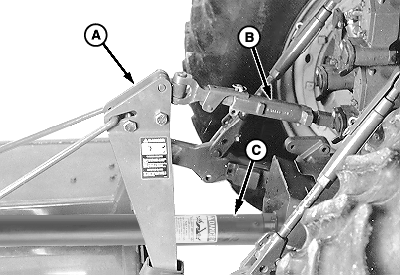

   W08373-UN-10NOV06

   A - Hitch

   B - Center Link

   C - Driveline

   Attach draft links. Secure with quick-lock pins.

---




5. Push hitch (A) forward and connect center link (B).

6. Attach PTO driveline (C). (See procedure in this section.)

7. Check driveline/cutter clearance. (See procedure in this section.)
