Checking Driveline/Cutter Clearance

1. IMPORTANT: Prevent damage to driveline from contact with frame. Raise cutter slowly and check for interference. Shorten center link or lengthen lift links to provide clearance to full lift height.

   If attaching to tractor that has not been previously used to operate cutter, driveline length should also be checked at this time. (See DRIVELINE LENGTHS in Service section.)

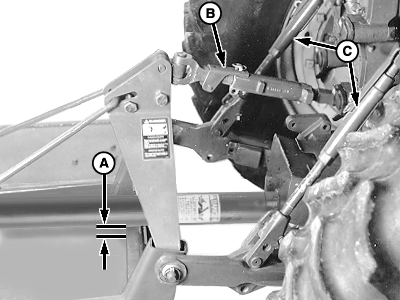

   W08374-UN-10NOV06

   A - Clearance

   B - Center Link

   C - Lift Links

   Raise cutter slowly, checking for clearance (A) between driveline and frame.

---




2. Provide clearance by either shortening center link (B) or lengthening lift links (C). (See your tractor Operator’s Manual.)

3. Be sure cutter can be raised fully without driveline bottoming out.

   NOTE: Final adjustments should be made before operating the cutter. (See ADJUSTING CUTTING HEIGHT AND ANGLE in Operating the Cutter section.)
