Install Front Safety Shield

IMPORTANT: Install hardware in the outer holes first and move inward.

Install all hardware finger tight, then tighten to specification as outlined below.

1.
   W20685-UN-22FEB10

   A - Shield

   B - Round-Head Bolt and Flange Lock Nut, M12 x 30 (4 used)

   C - Corner Plate (2 used)

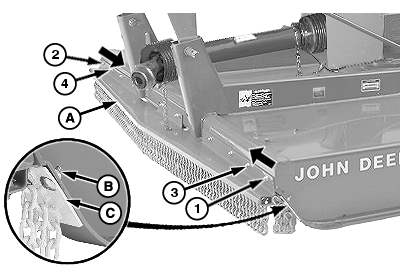

   Attach corner plate (C) to each side using M12 hardware (B) and tighten.

---




2. IMPORTANT: Install hardware with nuts and washers on the outside of cutter.

   Attach shield (A).

   609: Eight 3/8 x 1 in. cap screws and flange lock nuts.

   709: Ten 3/8 x 1 in. cap screws and flange lock nuts.

3. Tighten hardware to specification.

   Item	Measurement	Specification
   M12 Flange Lock Nuts	Torque	95 N·m (70 lb.-ft.)
   3/8 in. Flange Lock Nuts	Torque	44 N·m (33 lb.-ft.)
