Install Rear Chain Safety Shield

1. NOTE: To install chain shield, cutter must be equipped with solid rear safety shields. The chain shields are compatible with rear solid shields in raised position.


   W08362-UN-09NOV06

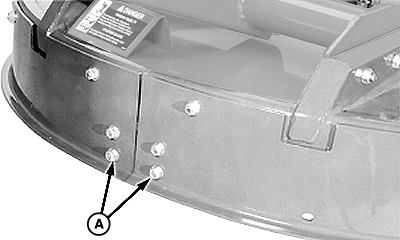

   A - Hardware

   Remove hardware (A).

---




2.
   W08363-UN-09NOV06

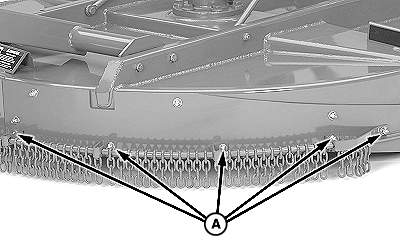

   A - Round-Head Bolts, Flat Washers and Lock Nuts, 1/2 x 1-1/2 in.

   Attach each chain shield with five 1/2 x 1-1/2 in. round-head bolts, flat washers and lock nuts (A). Tighten to specification.

   Item	Measurement	Specification
   Hardware	Torque	110 N·m (80 lb-ft)

---
