Checking Driveline Shields

W08368-UN-16JAN07

W08355-UN-16JAN07

Gear Case Shield

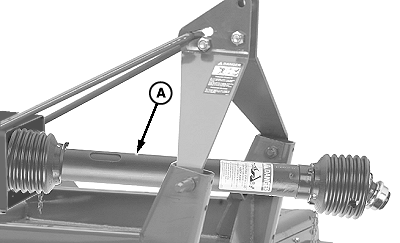

A - Driveline Shield

CAUTION: Entanglement in rotating driveline can cause serious injury or death. Disengage PTO, engage parking brake or place transmission in "PARK", shut off tractor, and remove key before working near driveline.

Check driveline shields (A) by making sure they rotate freely. Lubricate or repair if necessary. (See DISASSEMBLING AND ASSEMBLING DRIVELINE SHIELDS in Service section.)

Make sure driveline safety shield chains are attached.
