Assembling Main PTO Driveline Telescoping Members (If Necessary)

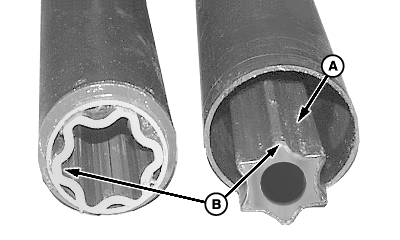

W07783-UN-05APR06

A - Inner Driveline

B - Locating Groove/Flat

1. Apply multipurpose grease around outside surface of inner driveline (A).

2. Align locating groove/flat (B) on driveline halves and assemble telescoping members together.

3. Apply multipurpose grease, or equivalent, to all lubrication fittings before operating. (See Lubrication and Maintenance section.)
