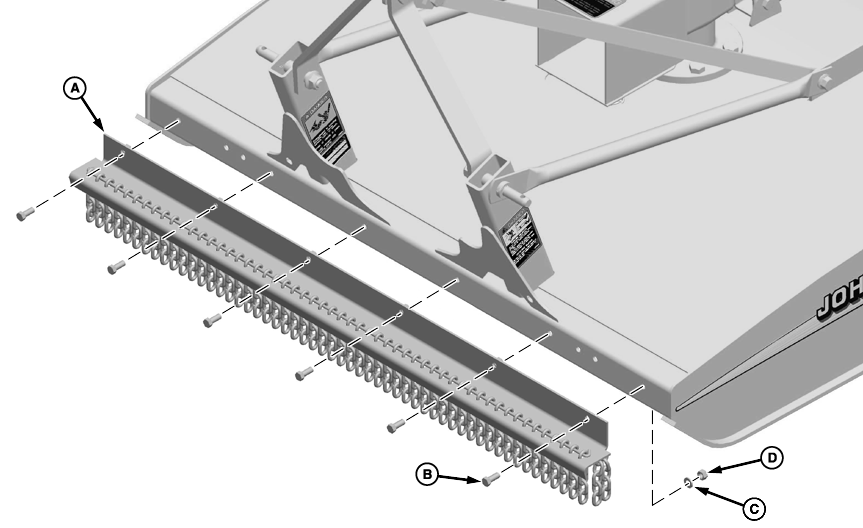

Install Front Safety Shield (Chain)

W07891-UN-13JUN06

A - Shield Assembly

B - Cap Screw, M12 x 30
MX5—(5 used)
MX6—(7 used)
MX7—(9 used)

C - Washer, 13 x 24 x 2.5 mm
MX5—(5 used)
MX6—(7 used)
MX7—(9 used)

D - Lock Nut, M12
MX5—(5 used)
MX6—(7 used)
MX7—(9 used)
