Disassembling and Inspecting Slip Clutch—MX5 and MX6

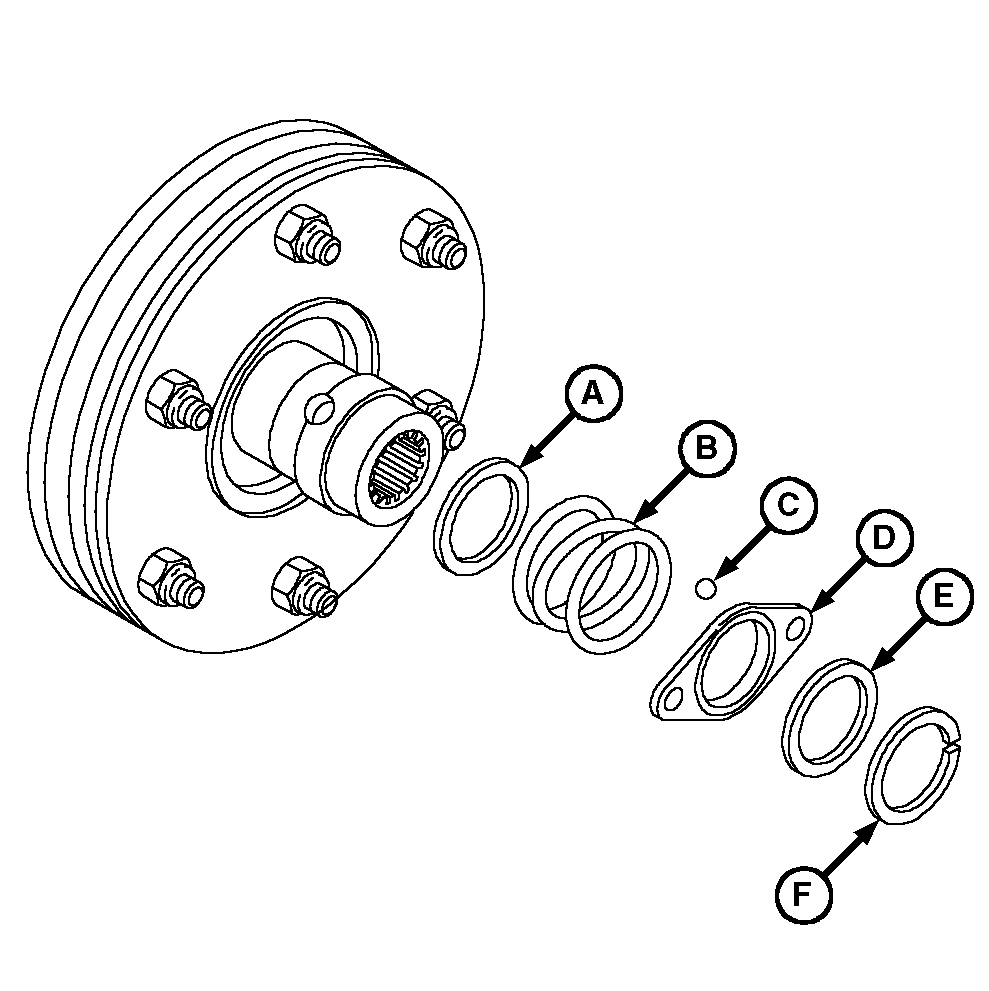

  1. W03717
    W03717-UN-15FEB00

    A - Ring

    B - Compression Spring

    C - Ball (3 used)

    D - Locking Collar

    E - Ring

    F - Snap Ring

    Remove PTO driveline. (See procedure in this section.)



  2. NOTE: Parts (A—F) are replaced as a kit.

    Remove locking collar assembly as follows:

    1. Pull back on locking collar (D).

    2. Remove snap ring (F).

    3. Remove parts (A—E).

  3. NOTE: Belleville springs, which are part of the clutch, keep tension on all components. When disassembling, release tension by loosening hardware progressively.

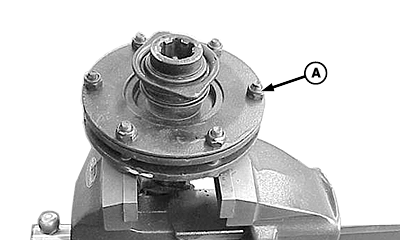

    W04861
    W04861-UN-25OCT01

    A - Cap Screws and Lock Nuts

    Place clutch in vise and remove cap screws and lock nuts (A) until tension is relieved.



  4. NOTE: Friction disks may appear to be part of the hub or yoke. Tap disks lightly on edge to separate.

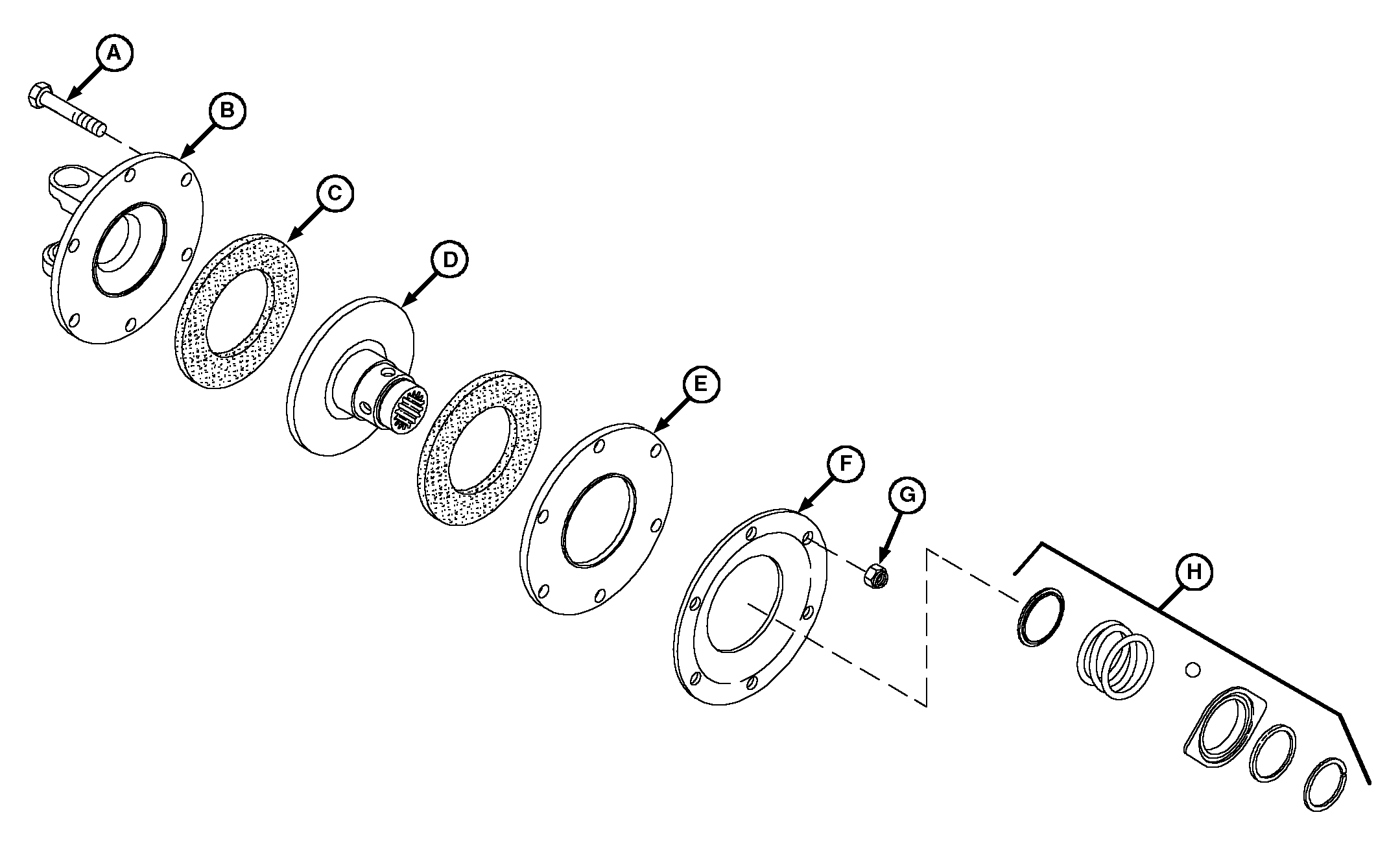

    W03708
    W03708-UN-04FEB00

    A - Cap Screw (6 used)

    B - Yoke

    C - Friction Disk (2 used)

    D - Hub

    E - Clutch Plate

    F - Belleville Spring

    G - Lock Nut (6 used)

    H - Locking Collar

    Inspect clutch components for wear or damage. Repair or replace parts as necessary.
