SETUP - GPS - PAGE 2

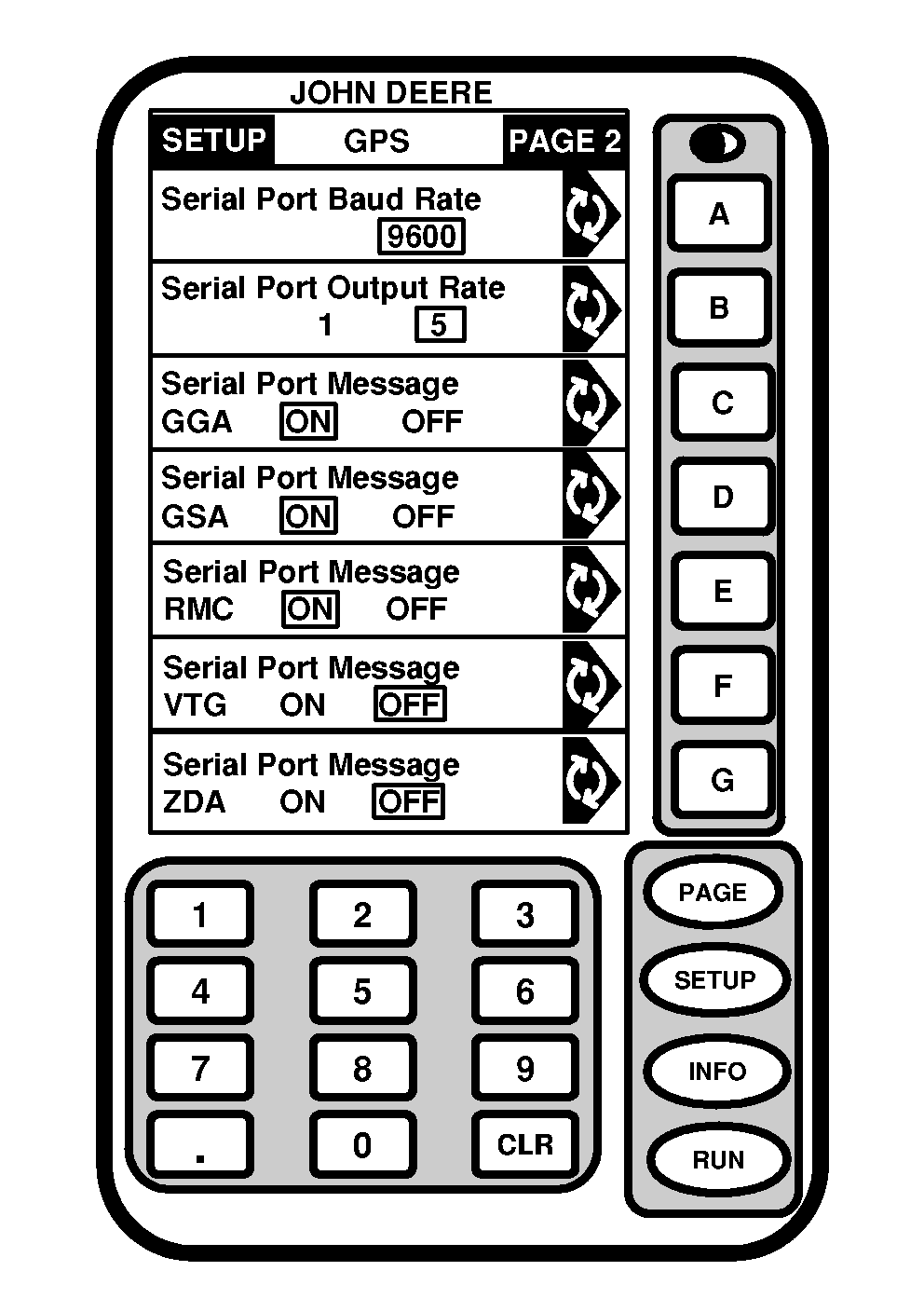

Screen: SETUP - GPS - PAGE 2

Press: SETUP >> STARFIRE RECEIVER >> PAGE

The following items can be setup in this screen:

  • Serial Port Baud Rate
  • Serial Port Output Rate
  • GGA Port Message
  • GSA Port Message
  • RMC Port Message
  • VTG Port Message
  • ZDA Port Message
Serial Port Baud Rate

NOTE: Output rates are: 4800, 9600, 19200 and 38400.

Receiver is capable of sending NMEA messages on a serial port. This allows receiver to be used for applications other than GreenStar system.

Press SERIAL PORT BAUD RATE button to toggle/select serial baud rate.

PC7406

OUO6050,000071F -19-10JUN04-1/2

Serial Port Output Rate

NOTE: Serial port settings do not affect GreenStar applications.

Press SERIAL PORT OUTPUT RATE button to toggle/select from 1 to 5 Hz.

Serial Port Messages

Press desired SERIAL PORT MESSAGE button to toggle/select between ON and OFF.

PC7406

OUO6050,000071F -19-10JUN04-2/2
