INFO - GPS - PAGE 2

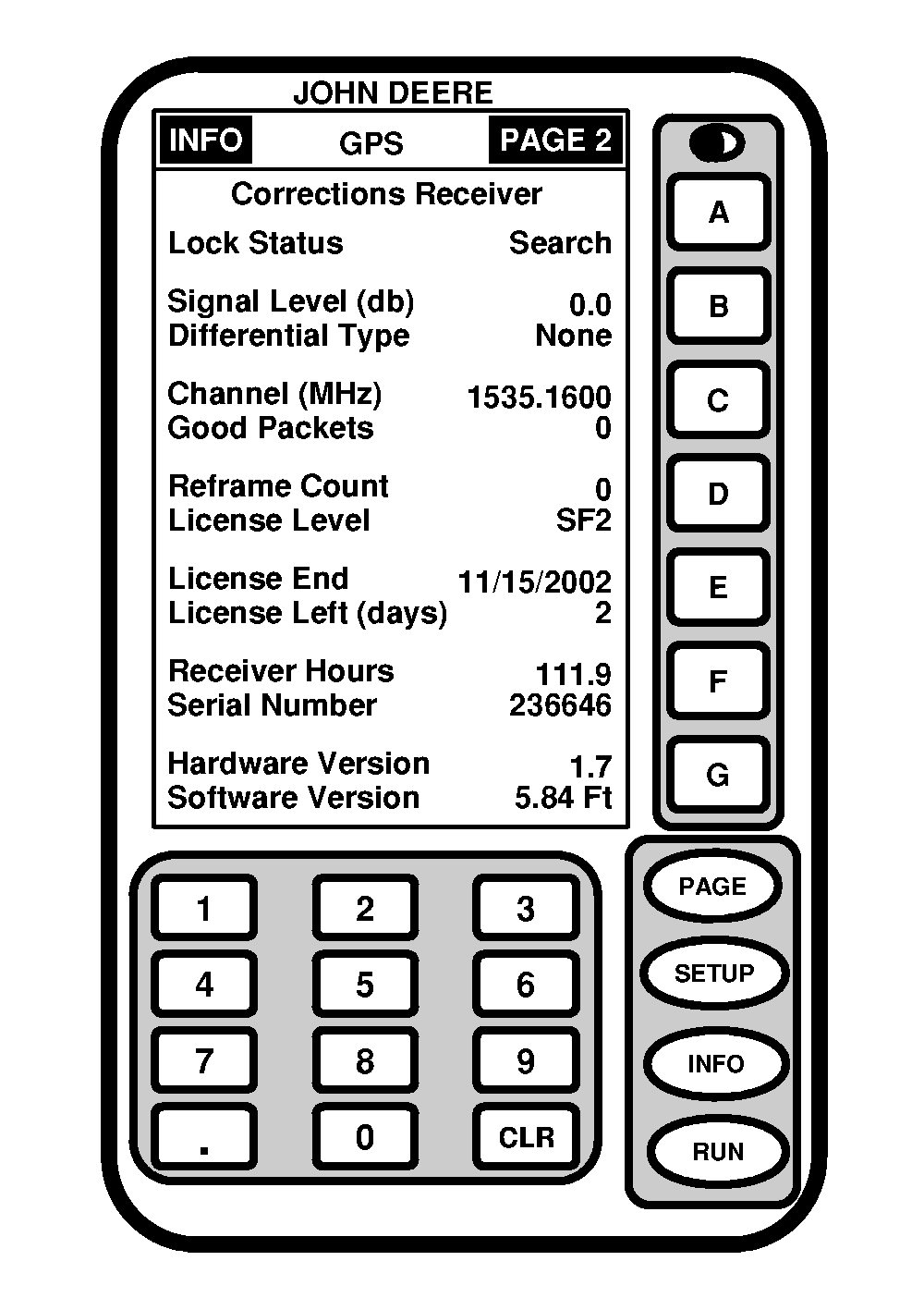

Screen: INFO - GPS - PAGE 2

Press: INFO >> STARFIRE RECEIVER >> PAGE

This screen shows detailed information about position receiver. This information will help troubleshoot position receiver if a problem occurs.

This cell shows status of L-Band differential correction signal acquisition (search, locked).

This cell shows signal strength of L-Band differential correction signal in dB. A good signal is 6 dB or higher.

This cell displays type of corrections signal being received.

This cell shows frequency which receiver is using for L-Band differential corrections.

Packets are information data strings received from differential satellite. Good packets contain differential correction information.

This cell shows number of times receiver has acquired differential corrections signal.

This cell shows type of differential signal being received.

This cell shows date license ends.

OUO6050,0000721 -19-10JUN04-1/2

This cell shows number of days left until L-Band differential correction license expires.

This cell displays number of hours on receiver.

This cell shows position receiver serial number. This is required to obtain an L-Band signal license.

This cell shows part number of position receiver.

NOTE: To acquire latest version of software call 1-888GRNSTAR, or via Internet at www.stellarsupport.com or contact your John Deere dealer.

This cell displays version of software being used by position receiver.
