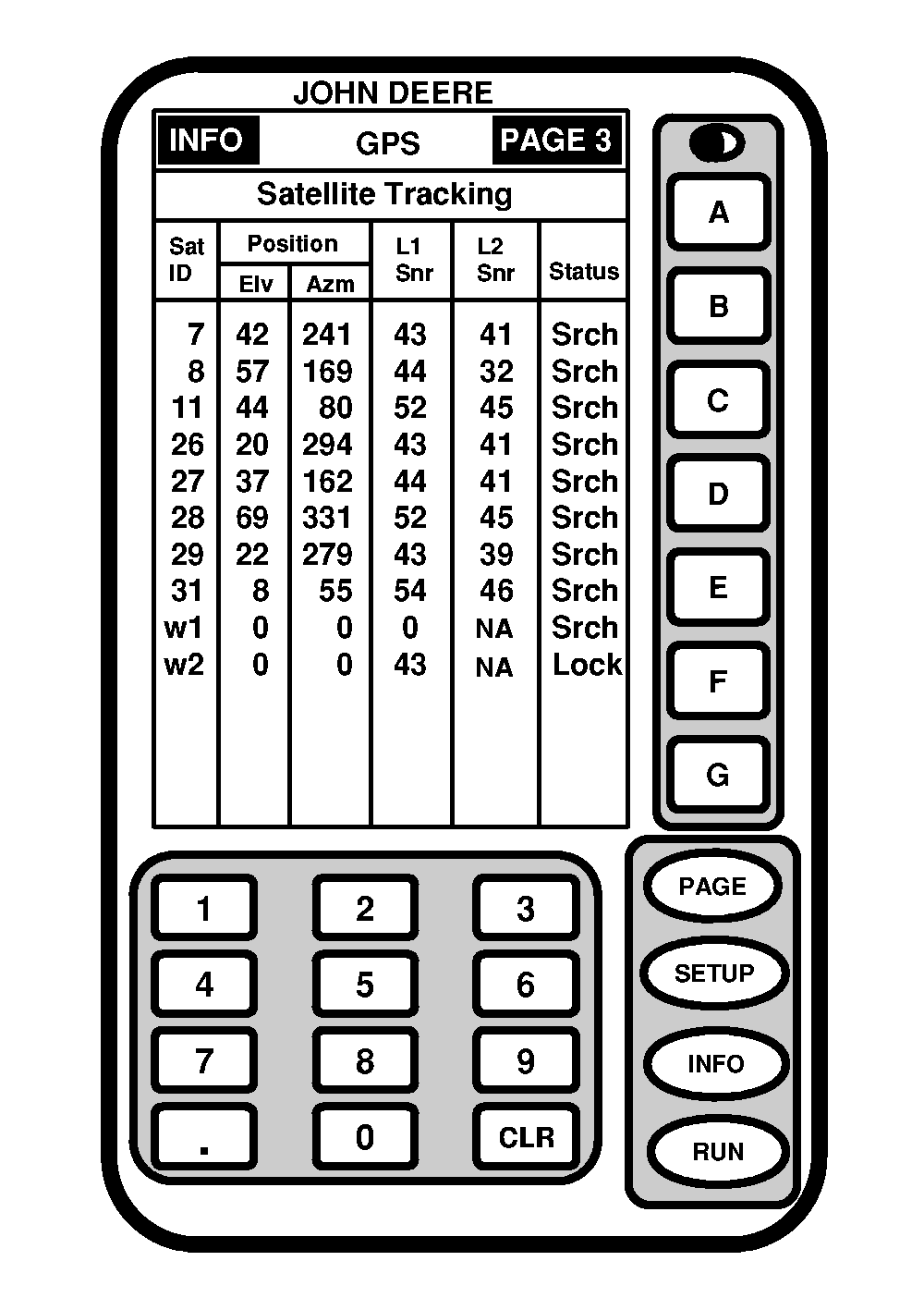

INFO - GPS - PAGE 3
Satellite Tracking
Screen:
INFO - GPS - PAGE 3
Press:
INFO >> STARFIRE RECEIVER >> PAGE >> PAGE
This screen shows satellites being tracked by GPS receiver and associated information.
SAT ID
This cell shows identification number for GPS or EGNOS satellite.
ELEV
This cell displays elevation in degree above horizon for GPS satellite position.
AZM
This cell shows azimuth in degree from true North for GPS satellite.
L1 SNR
This cell shows signal strength for L1 GPS signal (signal to noise ratio).
L2 SNR
This cell shows signal strength for L2 GPS signal (signal to noise ratio).
Status
This cell shows status of GPS signal.
-
Search-Searching for satellite signal.
-
Track-tracking satellite signal and using it for positioning.
-
OK-Tracking satellite signal and using it for positioning.
-
OK SF1-Tracking satellite signal and using it for positioning with StarFire signal frequency.
|
