Screen: SETUP - HEADER

Press: SETUP >> HARVEST MONITOR >> HEADER TYPE

IMPORTANT: Make certain header type is correct when changing from one header to another. The wrong header selection will result in an inaccurate information.

NOTE: To change from feet to meters see SETUP GREENSTAR DISPLAY.

Depending on which type of header is selected, there are additional items to be setup.

HEADER TYPE button will toggle between corn head, row crop, platform and belt pickup.

Select desired header type.

OUO6050,0000747 -19-11JUN04-1/3

IMPORTANT: Make certain row spacing is correct when header types are changed. The wrong row spacing will result in inaccurate area calculation.

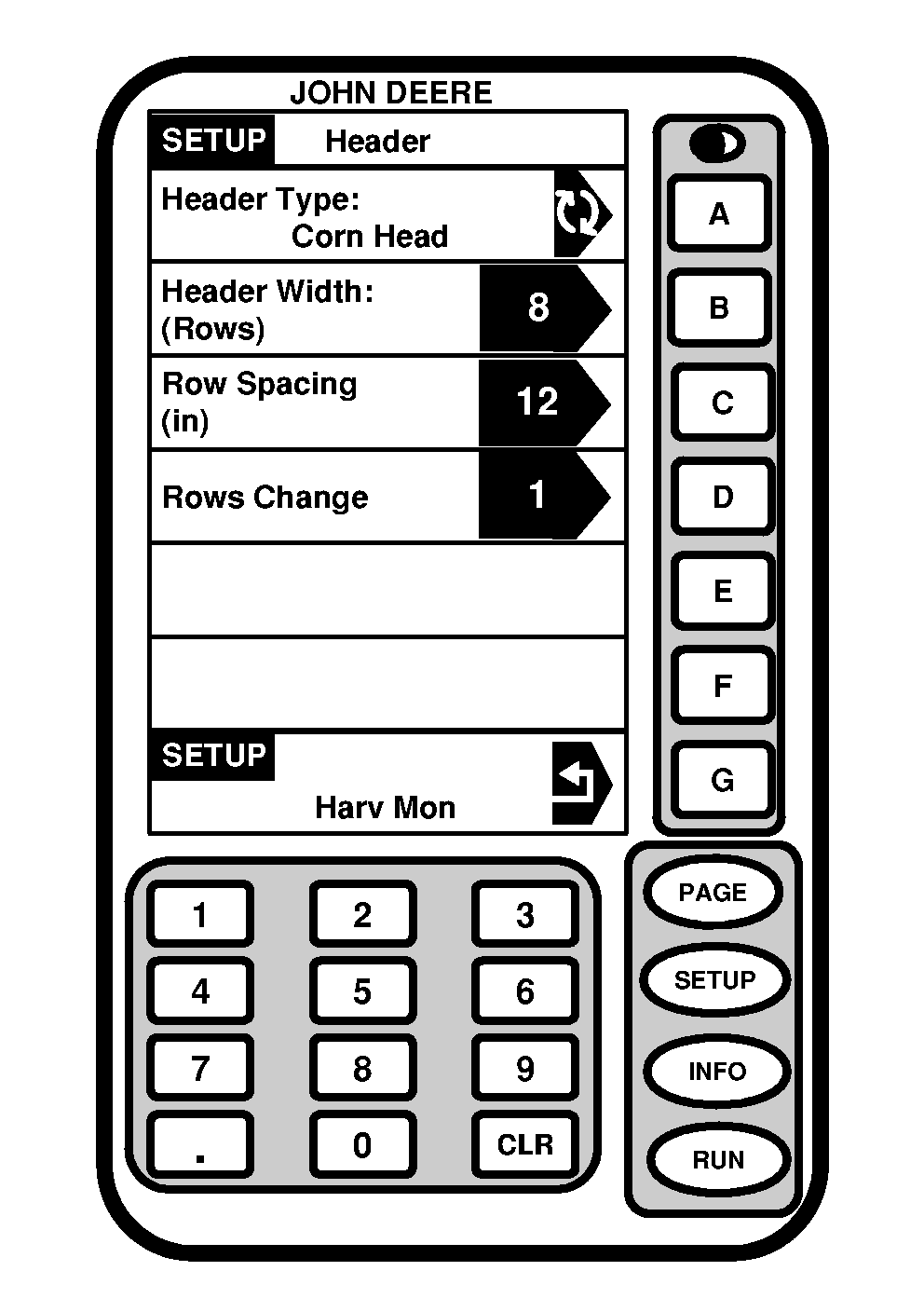

Header Width

Screen: SETUP - HEADER

Press: SETUP >> HARVEST MONITOR >> HEADER TYPE >> HEADER WIDTH

Enter header (in rows) width using numeric keypad.

Row Spacing

Screen: SETUP - HEADER

Press: SETUP >> HARVEST MONITOR >> HEADER TYPE >> ROW SPACING

Enter row spacing mm (inches) using numeric keypad.

Row Change

Screen: SETUP - HEADER

Press: SETUP >> HARVEST MONITOR >> HEADER TYPE >> ROW CHANGE

Set increments (in rows) for cut width to change on RUN - PAGE 1 screen. Use numeric keypad to enter number.

OUO6050,0000747 -19-11JUN04-2/3

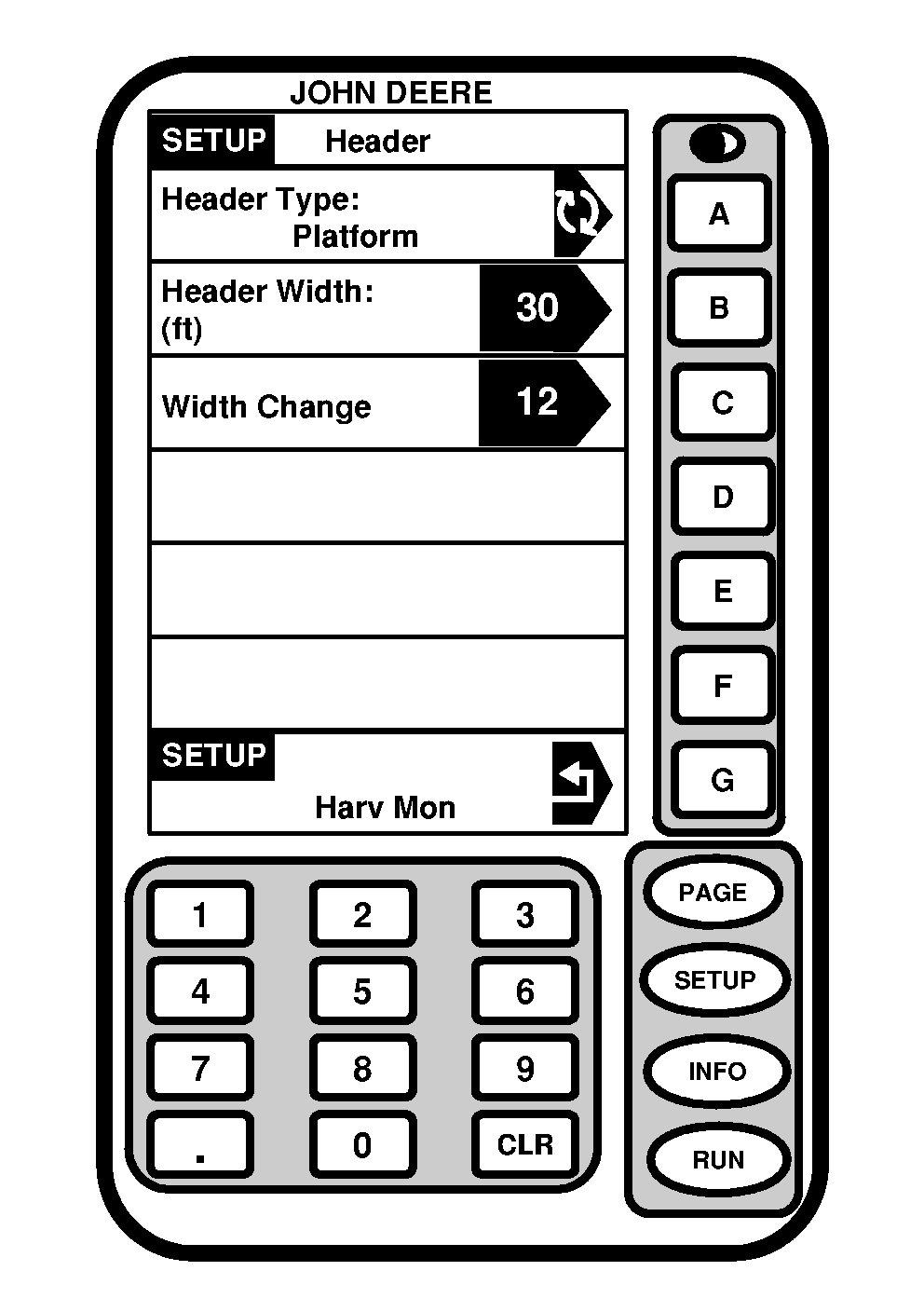

Screen: SETUP - HEADER

Press: SETUP >> HARVEST MONITOR >> HEADER TYPE >> WIDTH CHANGE

NOTE: If row crop (i.e. soybeans) are being harvested with a platform, and row spacing does not allow use of full header width, adjust header width to crop width being cut. For example; 7.6 meter (25 ft) platform may be 7 meters (24 ft) depending on row spacing.

Platform = Actual field cutting width in meters (feet)

Belt Pickup = Actual width of grain cut to produce windrow in meters (feet).

Set increments (in rows) for cut width to change on RUN - PAGE 1 screen. Use numeric keypad to enter number.

Change increments (in meters or feet) for cut width to change on RUN - PAGE 1 screen. Use numeric keypad to input correct header width in meters or feet.

OUO6050,0000747 -19-11JUN04-3/3
