Setting Yield/Area Units

NOTE: Printer (if equipped) can not be used with Harvest Doc.

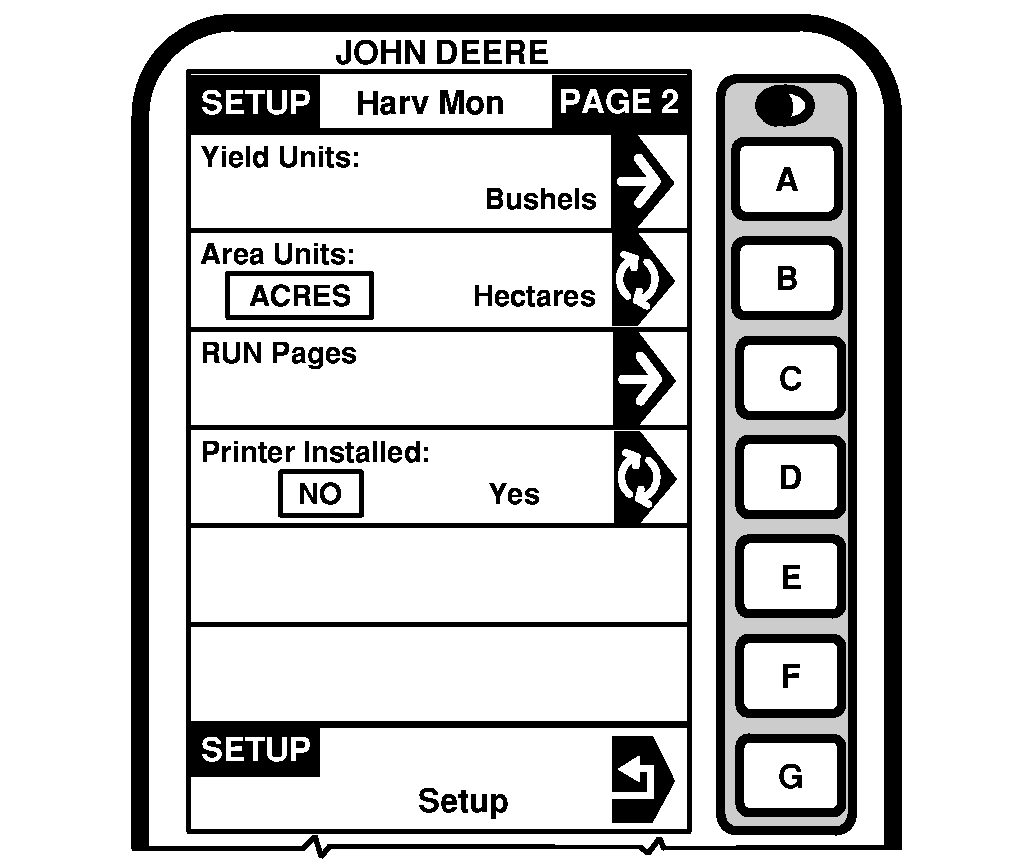

This screen is a continuation of SETUP - HARV MON - PAGE 1 screen.

This screen allows operator to choose Yield Units and Area Units that will be displayed on RUN pages. It also allows operator to configure RUN pages and turn on and off printer functions.

NOTE: See Standard Weights Chart section for standard weights of corps.

To select units of measure for yield readings, press YIELD UNITS button and SETUP - YIELD UNITS - PAGE 1 screen will appear.

Press button of desired unit.

To select units of AREA press AREA UNITS: button on SETUP - HARV MON - PAGE 2 screen. Area Unit will toggle between ACRES and HECTARES. Selection will appear boxed in capital letters.

OUO6050,0000750 -19-20JUN04-1/1
