Creating New Boundary

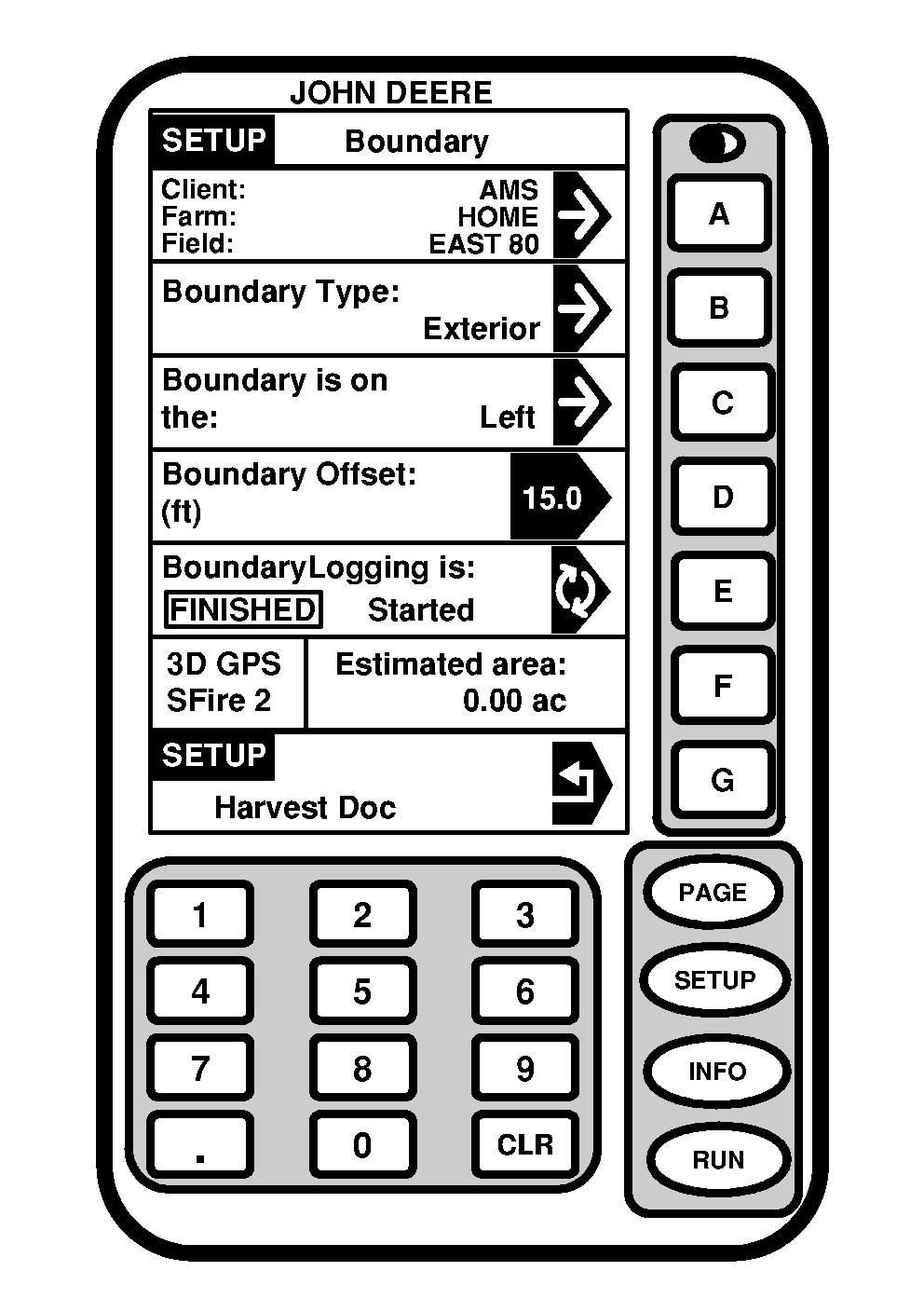

Screen: SETUP - BOUNDARY

Press: SETUP >> HARVEST DOC >> NEW BOUNDARY

This screen allows operator to define:

  • Boundary Type
  • Boundary location (right or left)
  • Boundary Offset
  • Status of Boundary Logging
PC7636

OUO6050,0000757 -19-20JUN04-1/3

NOTE: Boundary Type selection:

  • Exterior, for fields that are not mapped.

  • Line, for water ways and/or tile.

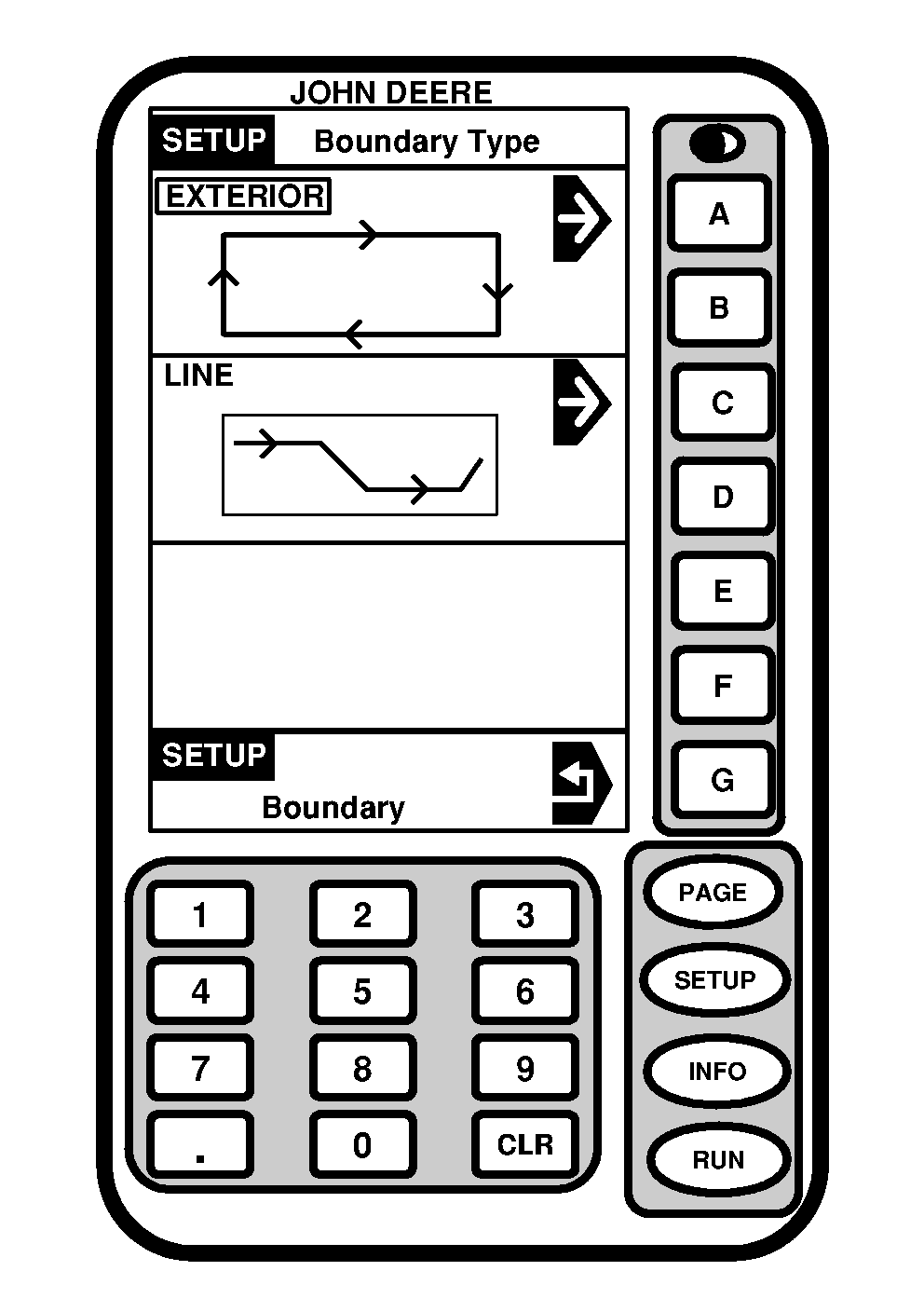

Screen: SETUP - BOUNDARY TYPE

Press: SETUP >> HARVEST DOC >> NEW BOUNDARY >> BOUNDARY TYPE

This screen allows operator to select between exterior and line boundaries.

Select desired boundary type.

PC7610

OUO6050,0000757 -19-20JUN04-2/3

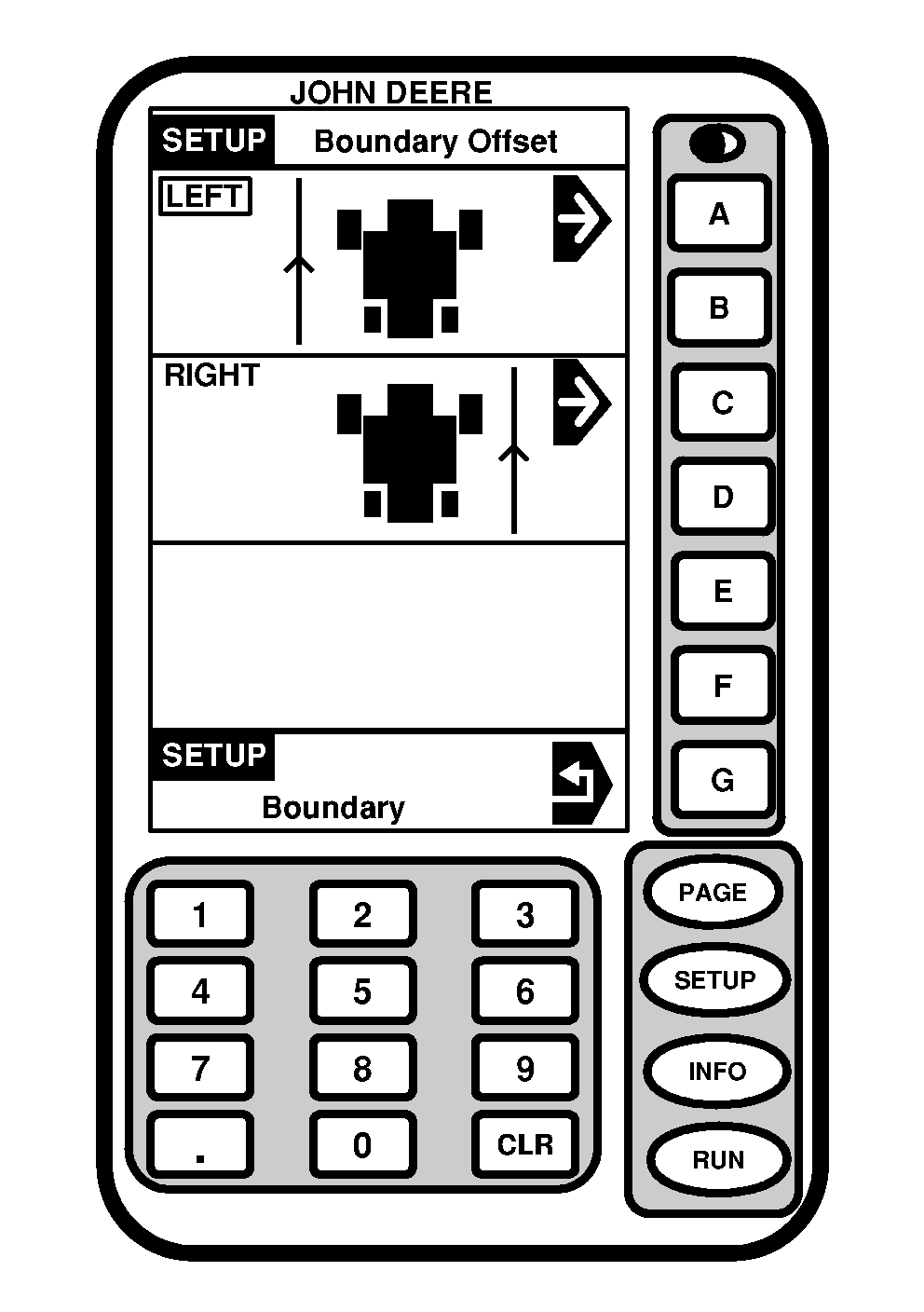

Screen: SETUP - BOUNDARY OFFSET

Press: SETUP >> HARVEST DOC >> NEW BOUNDARY

This screen allows operator to select desired location of boundary.

PC7611

OUO6050,0000757 -19-20JUN04-3/3
