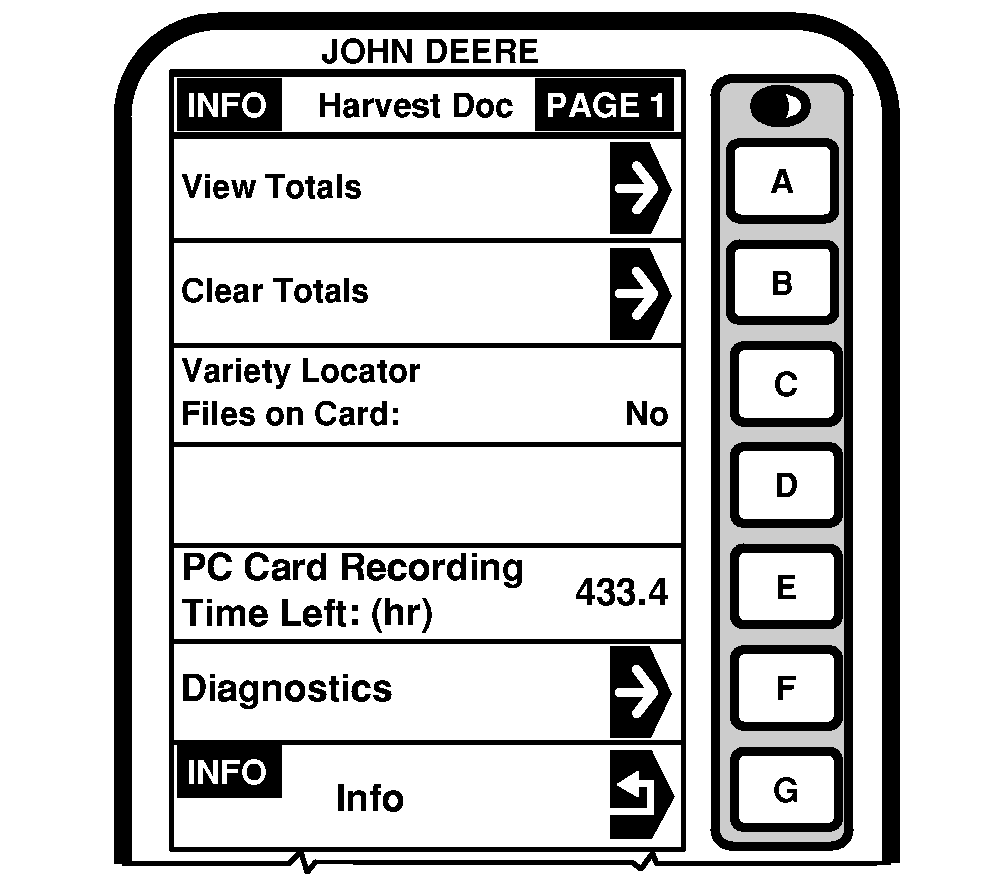

INFO - HARVEST DOC Screen

Screen: INFO - HARVEST DOC - PAGE 1

Press: INFO >> HARVEST DOC

This screen allows an operator to:

• View Totals (task, field, crop, load)
• Clear Totals (operation, field, crop, clear all field and crops for all clients)

  NOTE: Variety Locator Files on Card, indicates to operator if there is data recorded to PC card from JDOffice for current farm/field/crop to automatically locate and change them as you harvest.

• Variety Locator Files on Card YES/NO
• PC Card Recording Time Left: (hr) (displays hours remaining on PC card)
• Diagnostics (GPS Receiver and Mobile Processor)

OUO6050,0000762 -19-09JUN04-1/4

IMPORTANT: All Totals are saved to a PC data card.

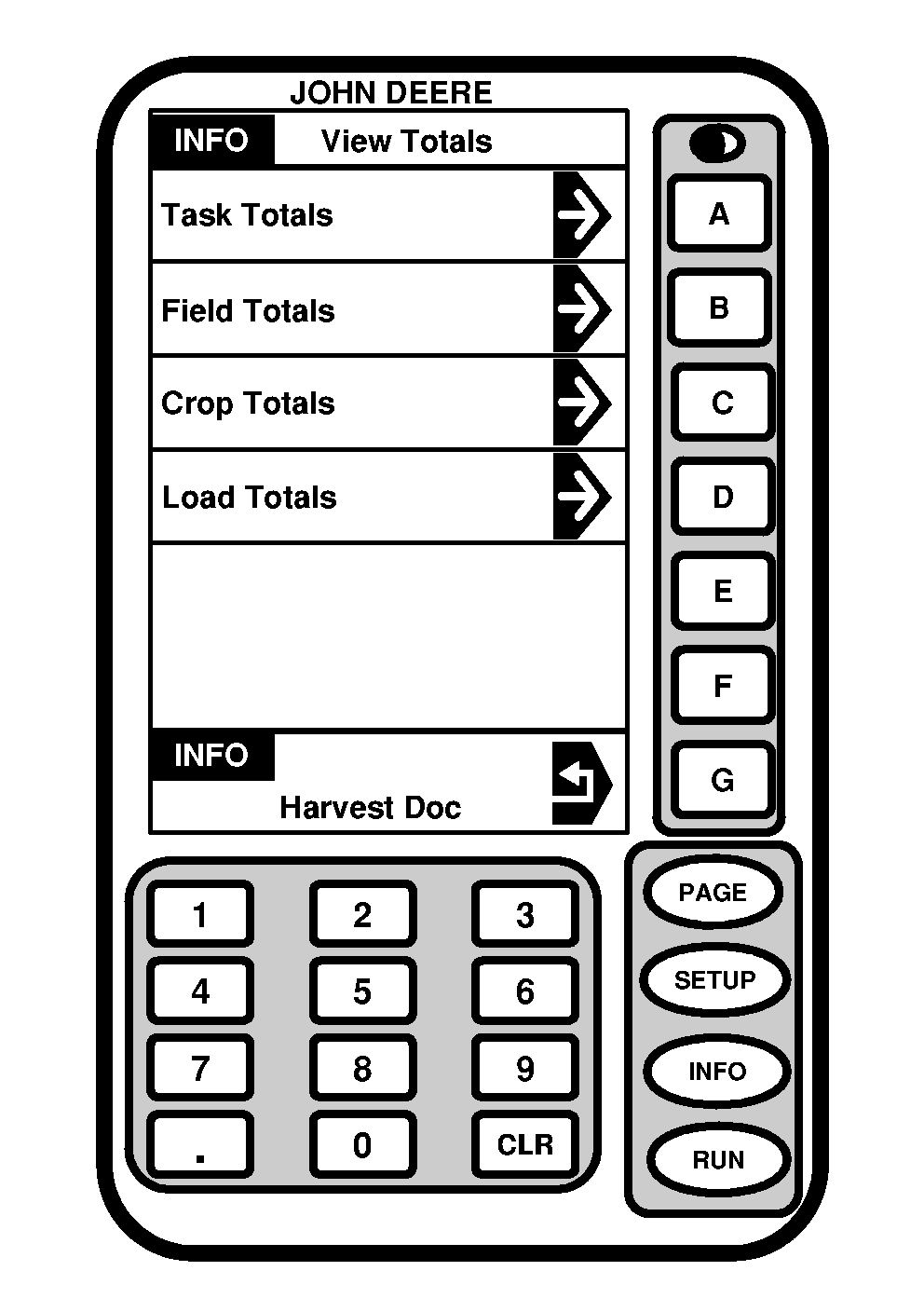

Press VIEW TOTALS button.

This screen allows operator to view totals for:

• Task
• Field
• Crop
• Load

Press button of desired total to view.

OUO6050,0000762 -19-09JUN04-2/4

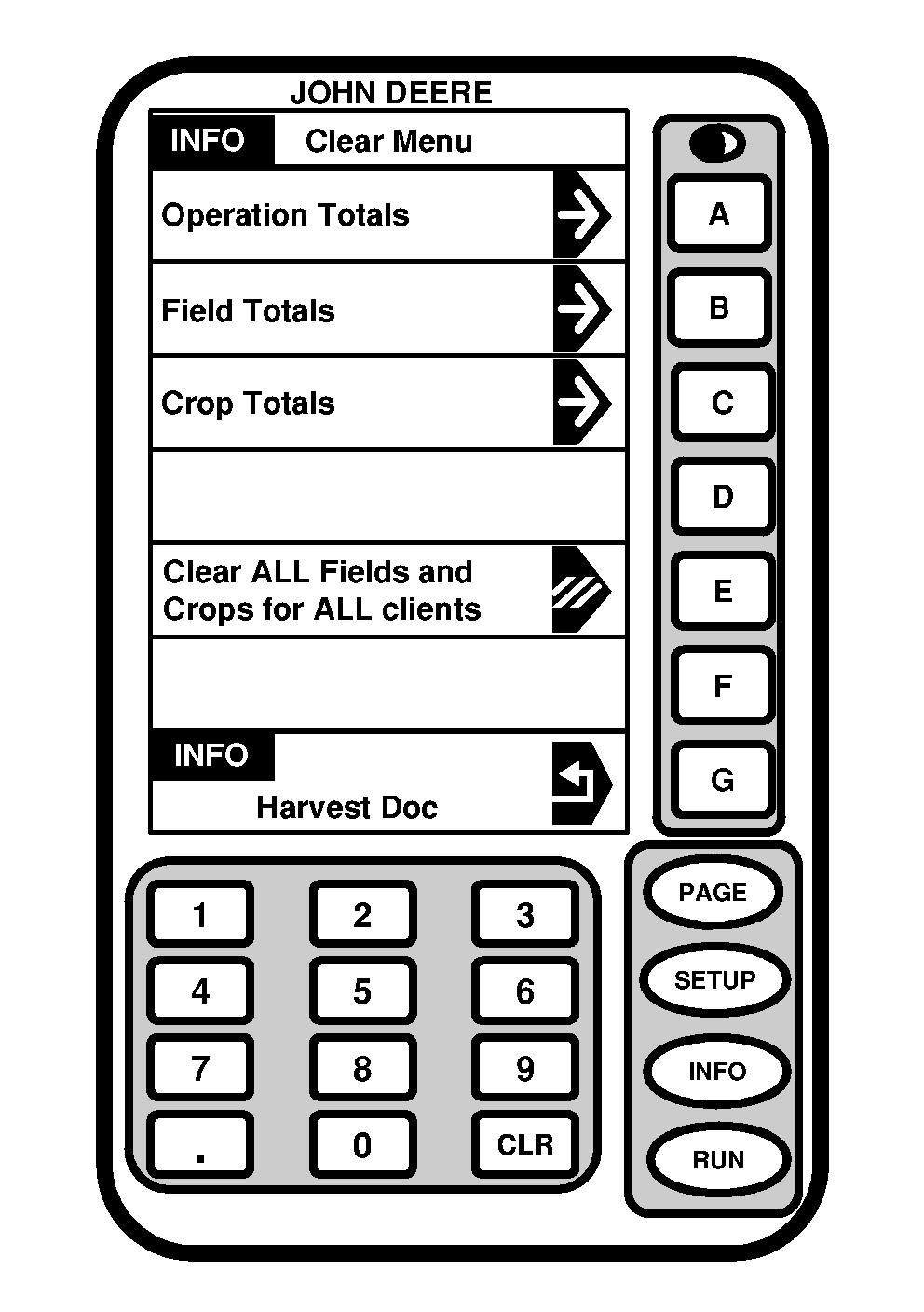

Screen: INFO - CLEAR MENU

Press: INFO >> HARVEST DOC >> CLEAR TOTALS

This screen allows operator to view and clear totals for:

• Operation
• Field
• Crop
• Clear All Fields and Crops for All Clients

Press button of desired cell to view and/or clear totals, press HARVEST DOC button to return without clearing totals.

OUO6050,0000762 -19-09JUN04-3/4

Screen: INFO - DIAGNOSTICS

Press: INFO >> HARVEST DOC >> DIAGNOSTICS

This screen allows operator to view diagnostics for GPS receiver and Mobile Processor.

Press button of desired cell to view diagnostic information.

OUO6050,0000762 -19-09JUN04-4/4
