Moisture Sensor - PAGE 1

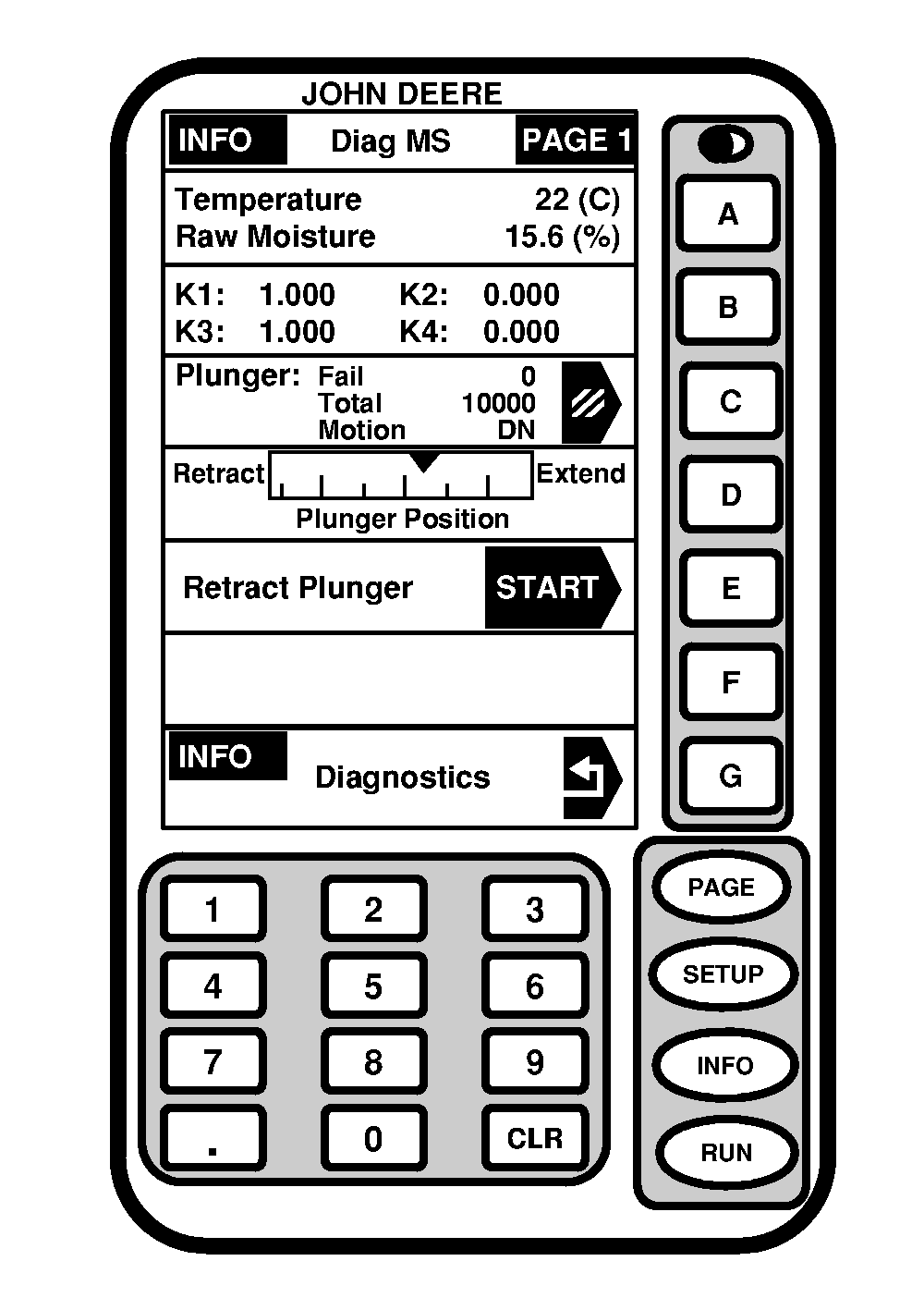

Screen: INFO - DIAG MS - PAGE 1

Press: INFO >> HARVEST MONITOR >> DIAGNOSTICS >> MOISTURE SENSOR

This page shows detailed information about the moisture sensor. This information will help troubleshoot moisture sensor if a problem occurs.

NOTE: To change from English to Metric measurements, refer to GREENSTAR DISPLAY in GreenStar Display Setup section.

Temperature cell shows temperature in Celsius (Fahrenheit) of grain in moisture sensor. Display setup determines units of measurement.

Raw moisture cell shows moisture sensor measured values without user moisture correction applied.

For factory use only.

CAUTION: To prevent personal injury, shut off engine, set parking brake and remove key before entering grain tank.

NOTE: If plunger is retracted, cycle power to extend plunger.

Cells C, D, and E show diagnostics for plunger, plunger position and allows operator to retract plunger and clean moisture sensor.

Actuator Current/Cycle, display amount of current actuator drew in last cycle. Cycle Time displays amount of time sensor takes to take a sample.
