Moisture Sensor - PAGE 2

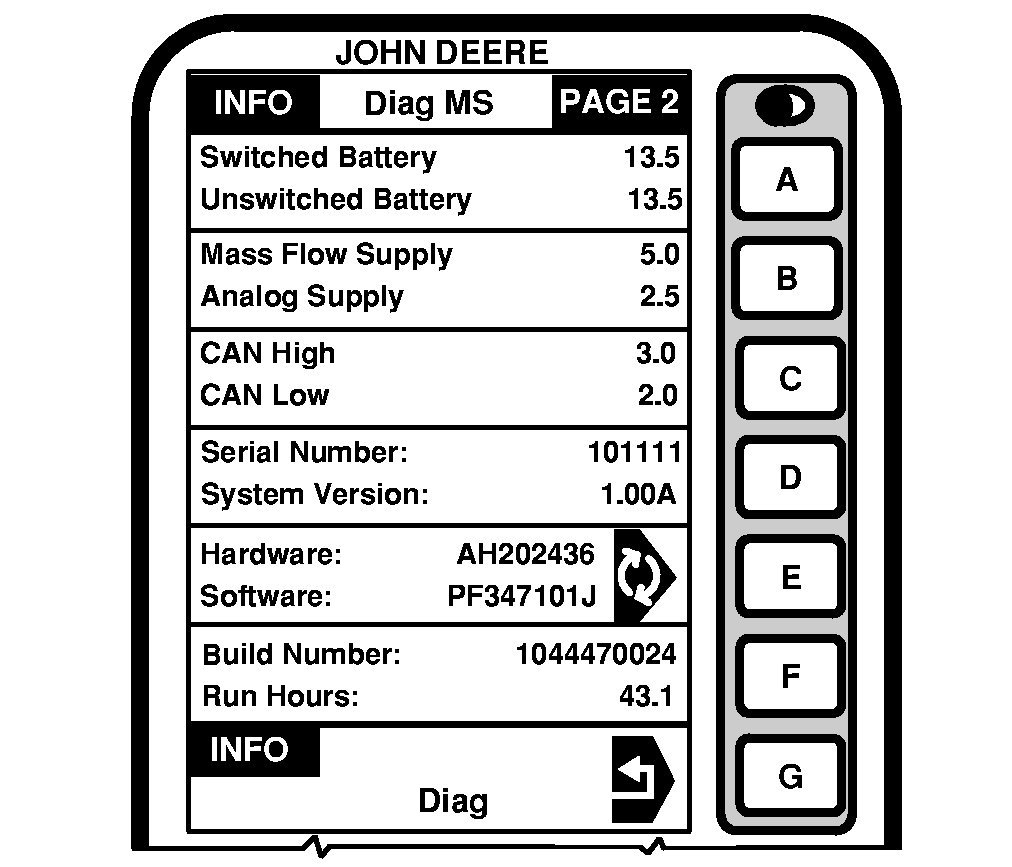

Screen: INFO - DIAG MS - PAGE 2

Press: INFO >> HARVEST MONITOR >> DIAGNOSTICS >> MOISTURE SENSOR >> PAGE

Switched Battery

This cell shows voltage at moisture sensor power input controlled by key switch.

Unswitched Battery

This cell shows voltage at power input directly for battery.

CAN High

This cell displays voltage on CAN High.

CAN Low

This cell shows voltage on CAN Low.

Serial Number

This cell shows serial number of moisture sensor.

System Version

This cell is for factory use only.

Hardware

This cell shows part number of moisture sensor.

Software

This cell shows part number of moisture sensor.

Build Number

This cell is for factory use only.

Run Hours

This cell shows number of hours of operation for moisture sensor.

H75238

OUO6050,0000766 -19-07JUN04-1/2

Mass Flow Supply and Analog Supply

This cell shows voltage supplied to mass flow sensor.

Analog Supply

For factory use only.
