Mass Flow Sensor

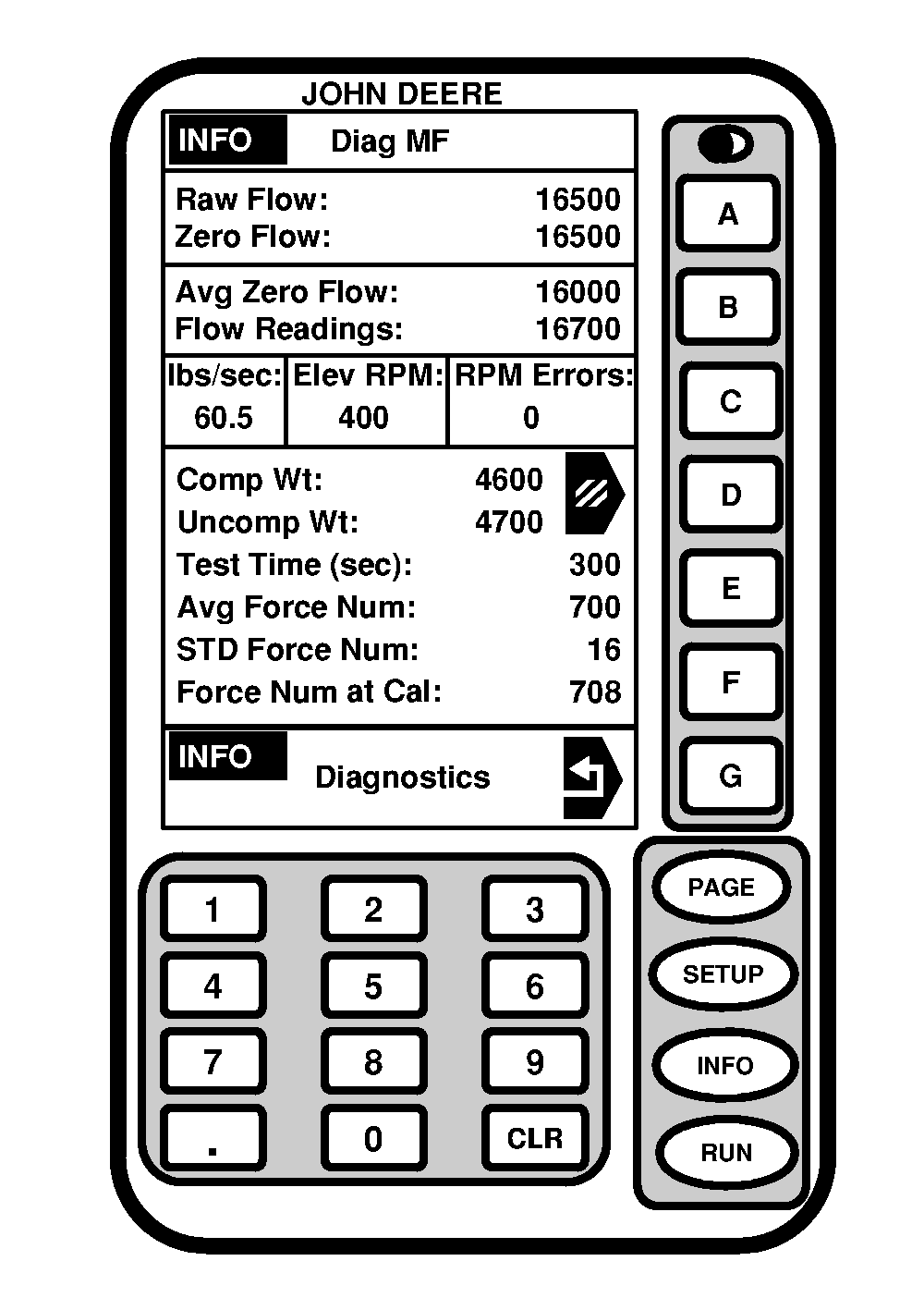

Screen: INFO - DIAG MF

Press: INFO >> HARVEST MONITOR >> DIAGNOSTICS >> MASS FLOW SENSOR

This screen provides information that will help troubleshoot mass flow sensor, if a problem occurs.

Raw flow cell shows output from mass flow sensor. As grain impacts mass flow sensor, value of raw flow will increase.

Zero flow cell shows output of mass flow sensor when no grain is impacting sensor.

This cell shows average zero flow.

Flow reading cell shows net output of mass flow sensor determined by raw flow minus flow zero.

LB/SEC cell shows total weight hitting mass flow sensor per second.

NOTE: If clean grain elevator speed is less than 280 rpm, then a warning message will appear.

Elevator rpm cell shows speed of clean grain elevator.

NOTE: RPM Errors, Comp Weight, Uncomp Weight, Test Time (Sec), Average Force Number, Standard Force Number, Force Number at CAL are all factory use only.
