Combine Network

Screen: INFO - COMBINE NET

Press: INFO >> HARVEST MONITOR >> DIAGNOSTICS >> COMBINE NETWORK

This screen provides information that will help troubleshoot the combine network, if a problem occurs.

Automatic Header Control (AHC)

Indicates if AHC is online or offline.

Armrest

Indicates if armrest is online or offline.

Corner Post

Indicates if corner post display is online or offline.

Engine Controller

Indicates if engine controller is online or offline.

Rec Stop Ht

This cell shows percentage of feeder house angle that Rec Stop Ht is set at.

Fdr House Angle

This cell shows percentage of feeder house angle feeder house is currently set at.

Ground Speed

Displays current ground speed of combine.

CAN Bus OFF Count

Factory use only.

Combine Model

This cell shows combine model as indicated by CAN Bus system.

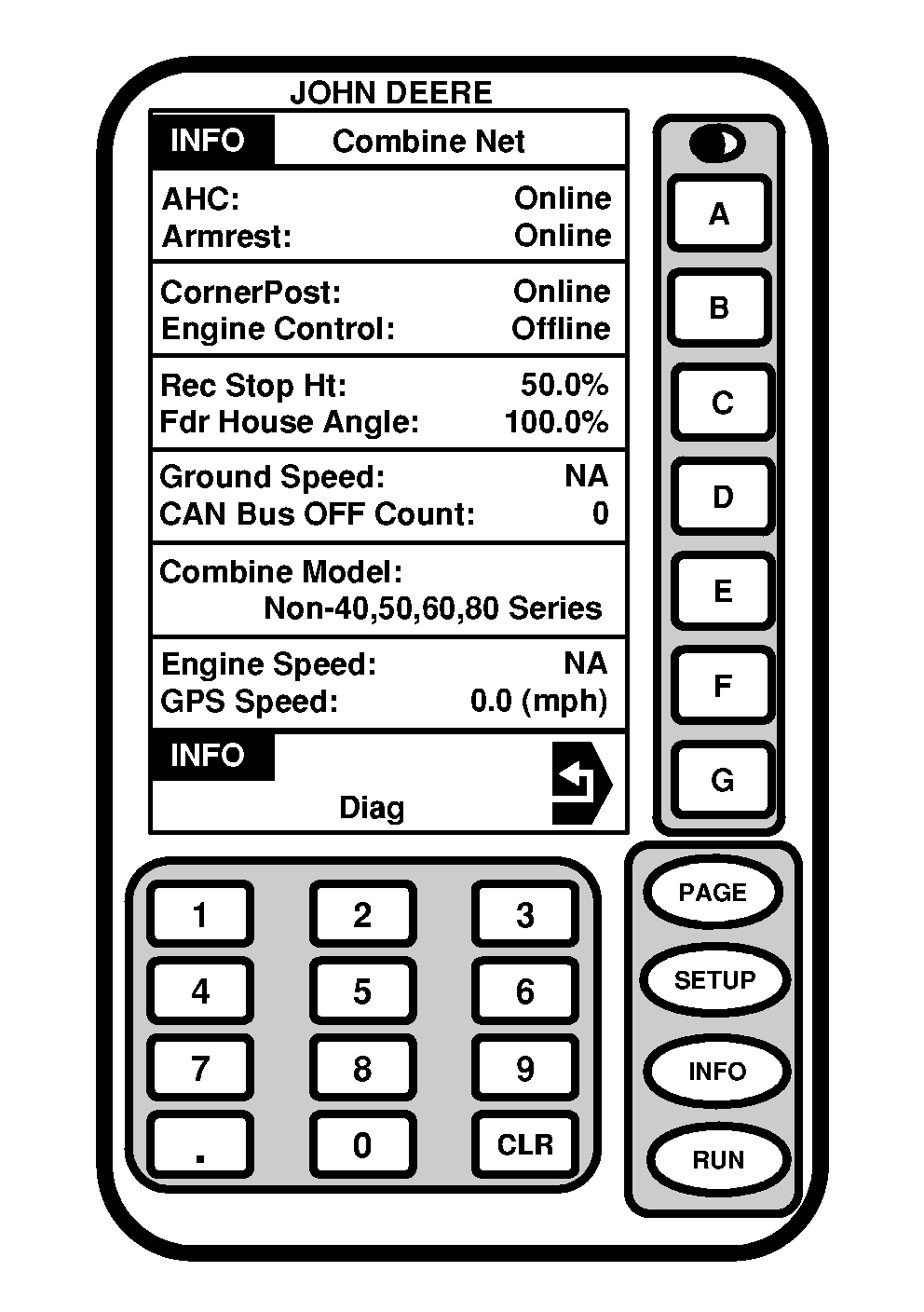

PC7635

OUO6050,0000769 -19-08JUN04-1/2

Engine Speed

Displays current engine speed.

OUO6050,0000769 -19-08JUN04-2/2
