Warning Screens
Warning screens and alarms provide operator alerts to monitor system operational problems. Each screen displays a Diagnostic Trouble Code (DTC) on upper right corner (D), keyword strings (E) and text strings (F). Refer to "Diagnostic Trouble Code Lists" hereafter to get specific operational problem and recommended corrective action.
Each diagnostic trouble code has a priority. The priority of diagnostic trouble code is given by relevant icon (A), (B) or (C) displayed:
-
Icon (A) belongs to
FULL PAGE CAUTION
screens. Cautions are displayed at bottom of
RUN
pages or as a
FULL
screen display if GreenStar display is NOT on a
RUN
page. Audible alarm will sound at highest level.
NOTE:
When caution screen appears, corrective action must be taken before continuing operation.
-
Icon (B) belongs to
FULL PAGE WARNING
screens. A full page warning will override any other display function in progress.
NOTE:
RUN, SETUP and INFO keys will NOT be active during this display.
If a
CAUTION
or
ADVISORY
alarm is in progress when a
FULL PAGE WARNING
occurs, that alarm will be interrupted and
FULL PAGE WARNING
alarm will sound.
NOTE:
When warning screen appears, corrective action should be taken before continuing operation.
-
Icon (C) belongs to
FULL PAGE INFO
screens.
|

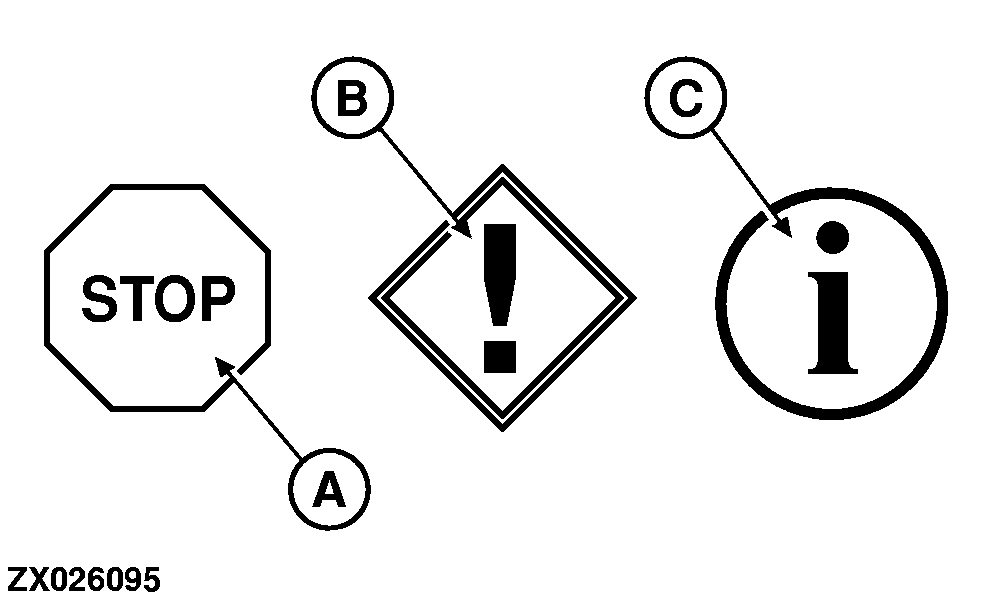

A-Full page caution icon
B-Full page warning icon
C-Full page info icon

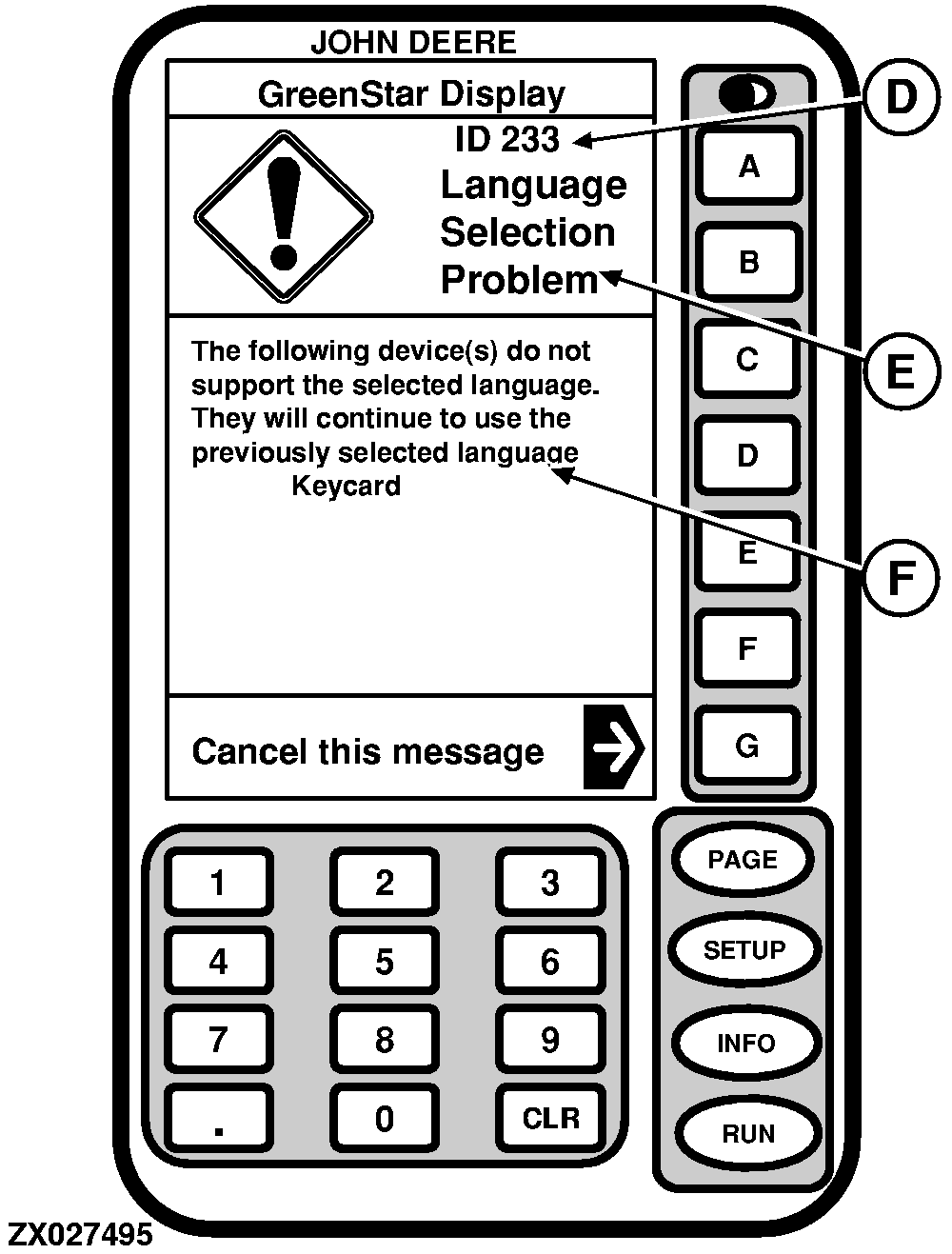

D-Diagnostic Trouble Code (DTC)
E-Keyword strings
F-Text strings
|
