Display Screen Troubleshooting Illustrations

H62563

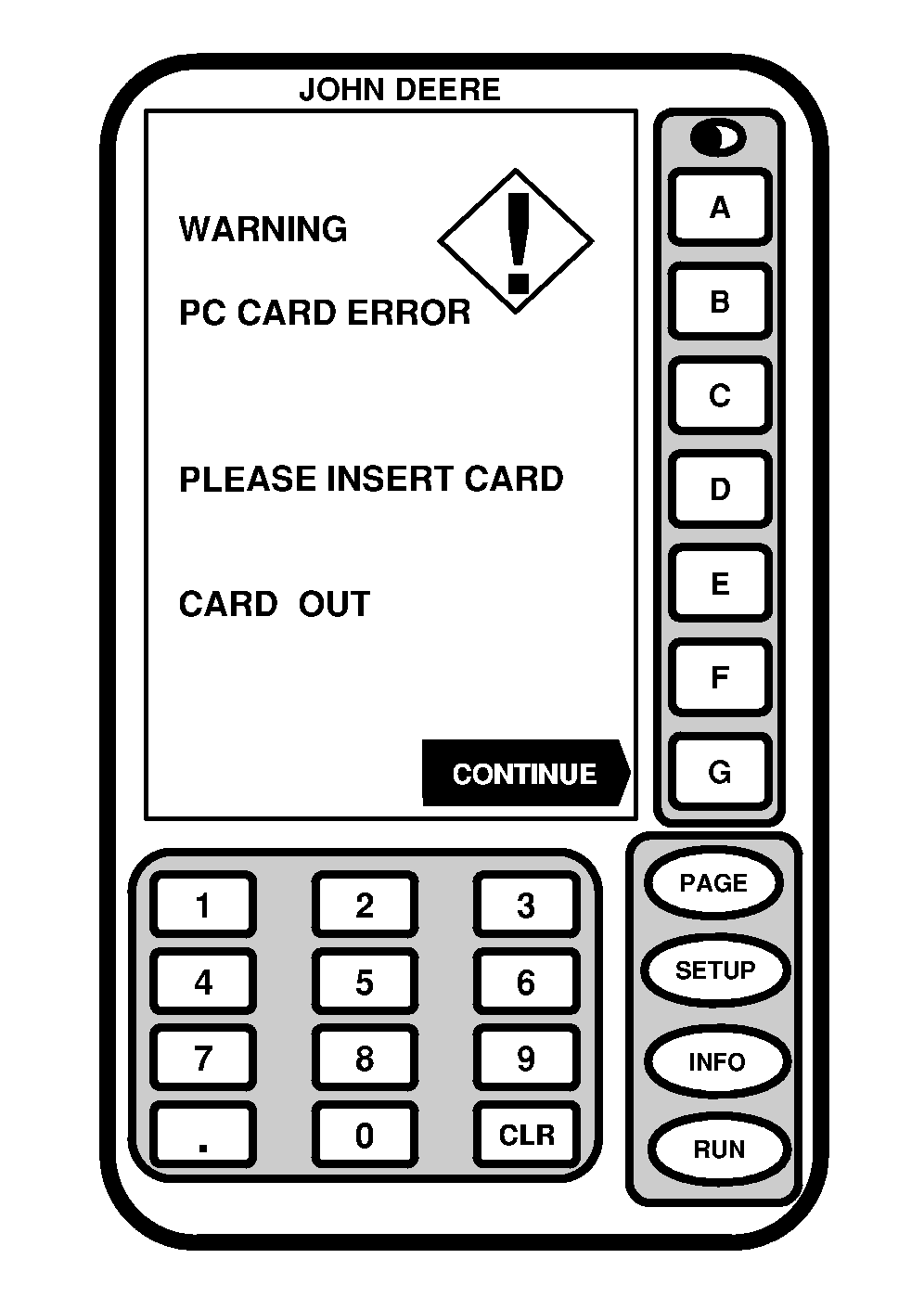

A-KeyCard Error Warning Screen
H62565

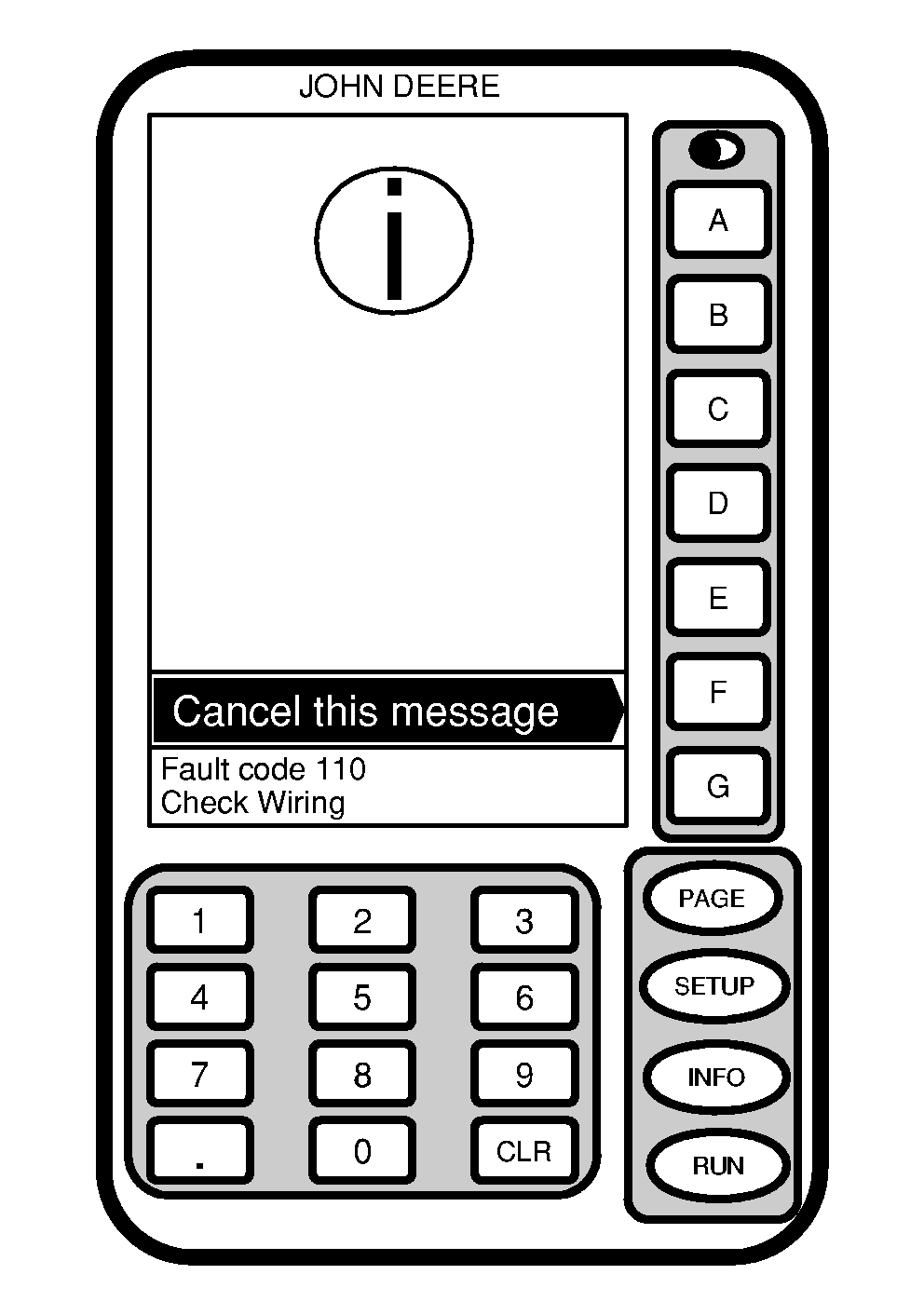

B-Communication Problem Screen

OUO6050,0000772 -19-12MAR04-1/3

H62568

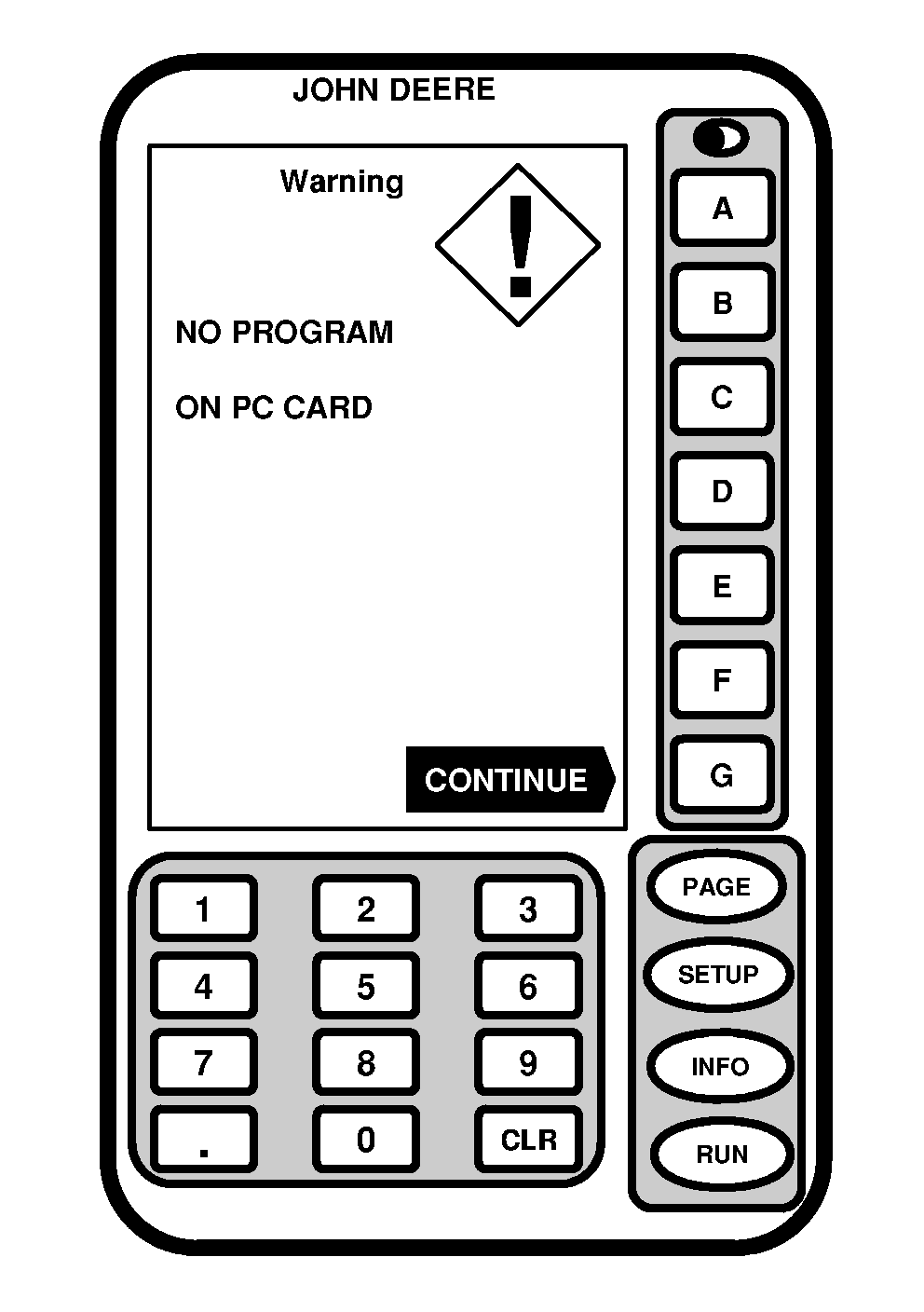

C-Program Not Found Warning Screen
H62569

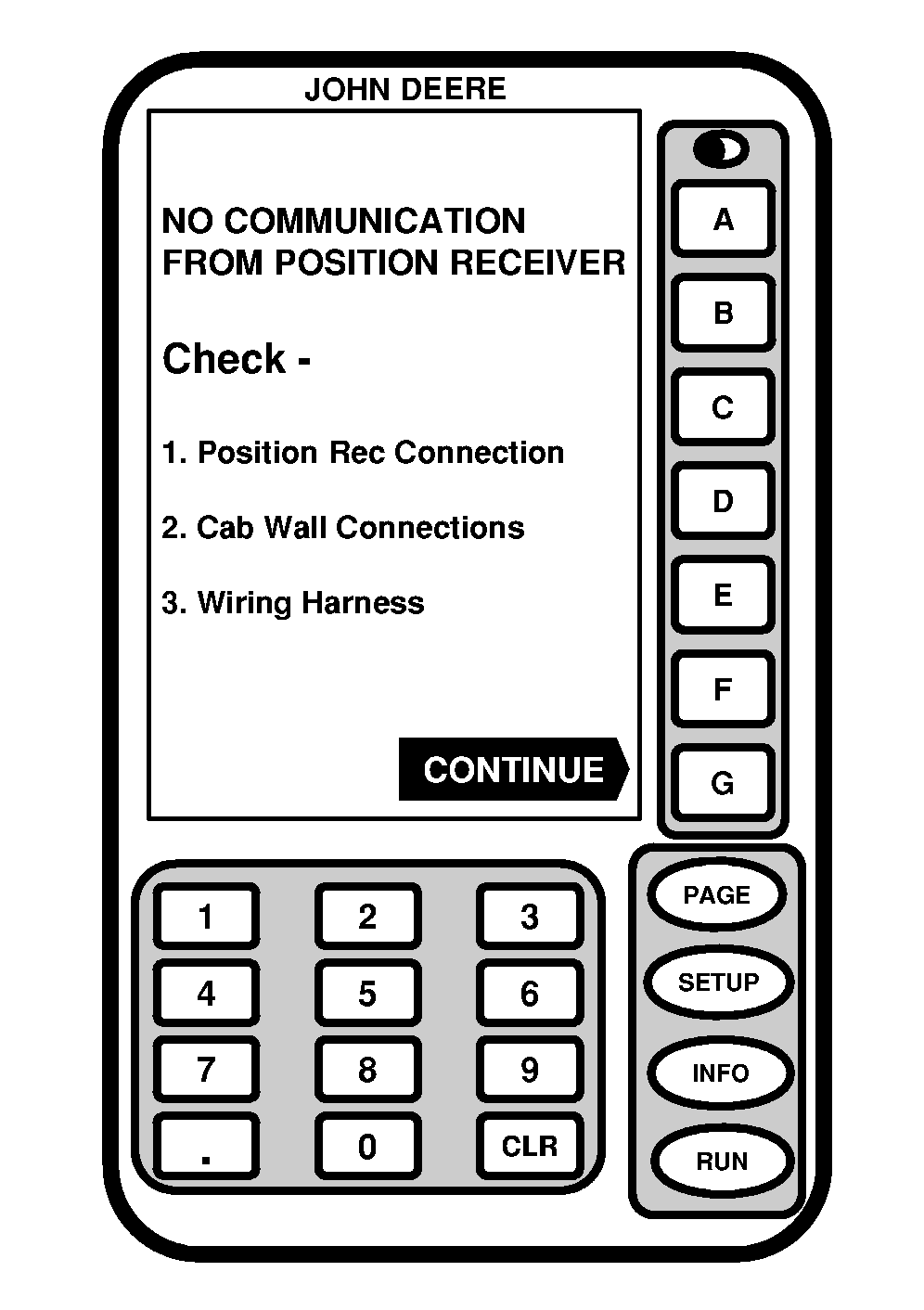

D-No Communication Screen

OUO6050,0000772 -19-12MAR04-2/3

H63116

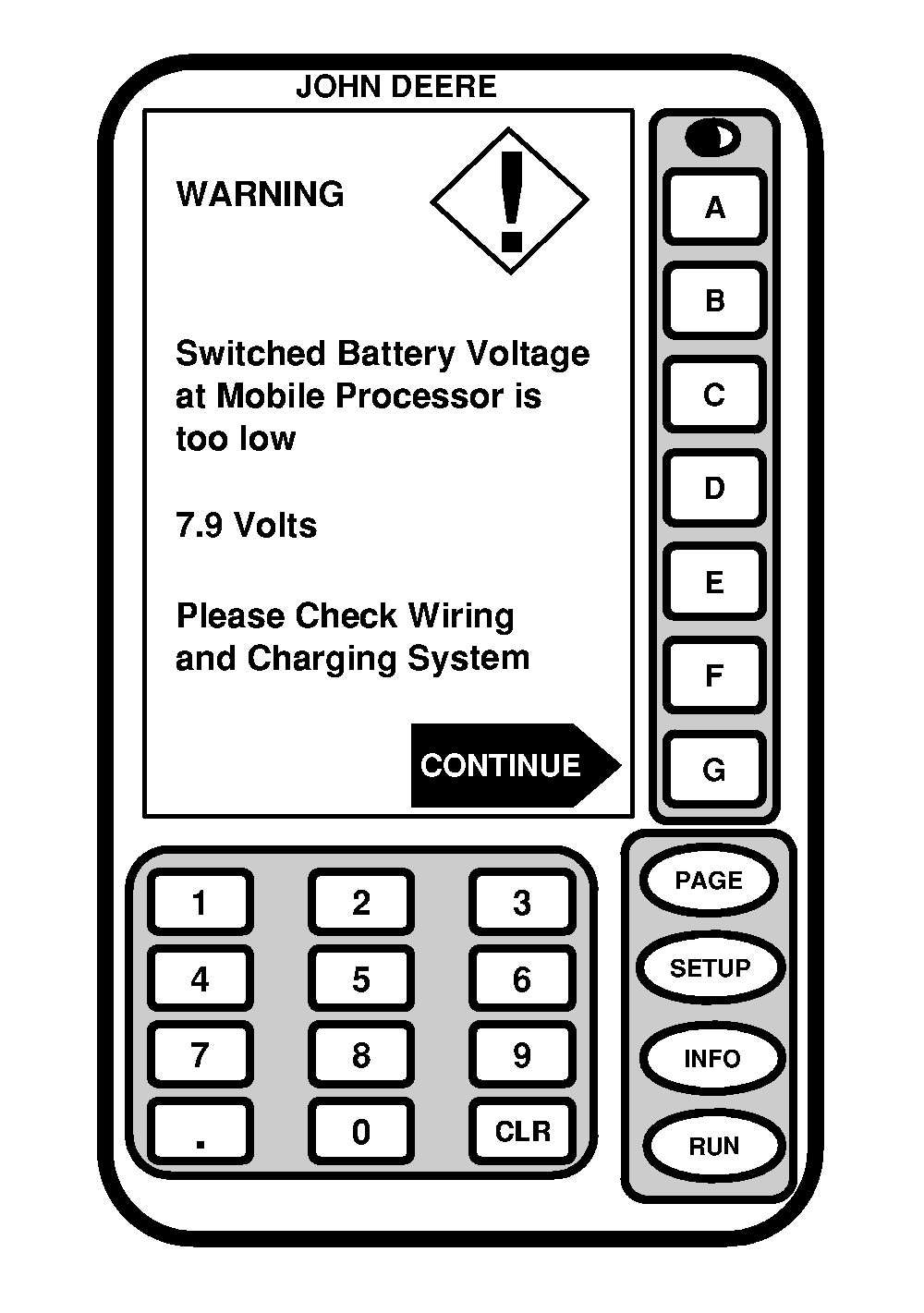

E- Battery Voltage too Low
H63117

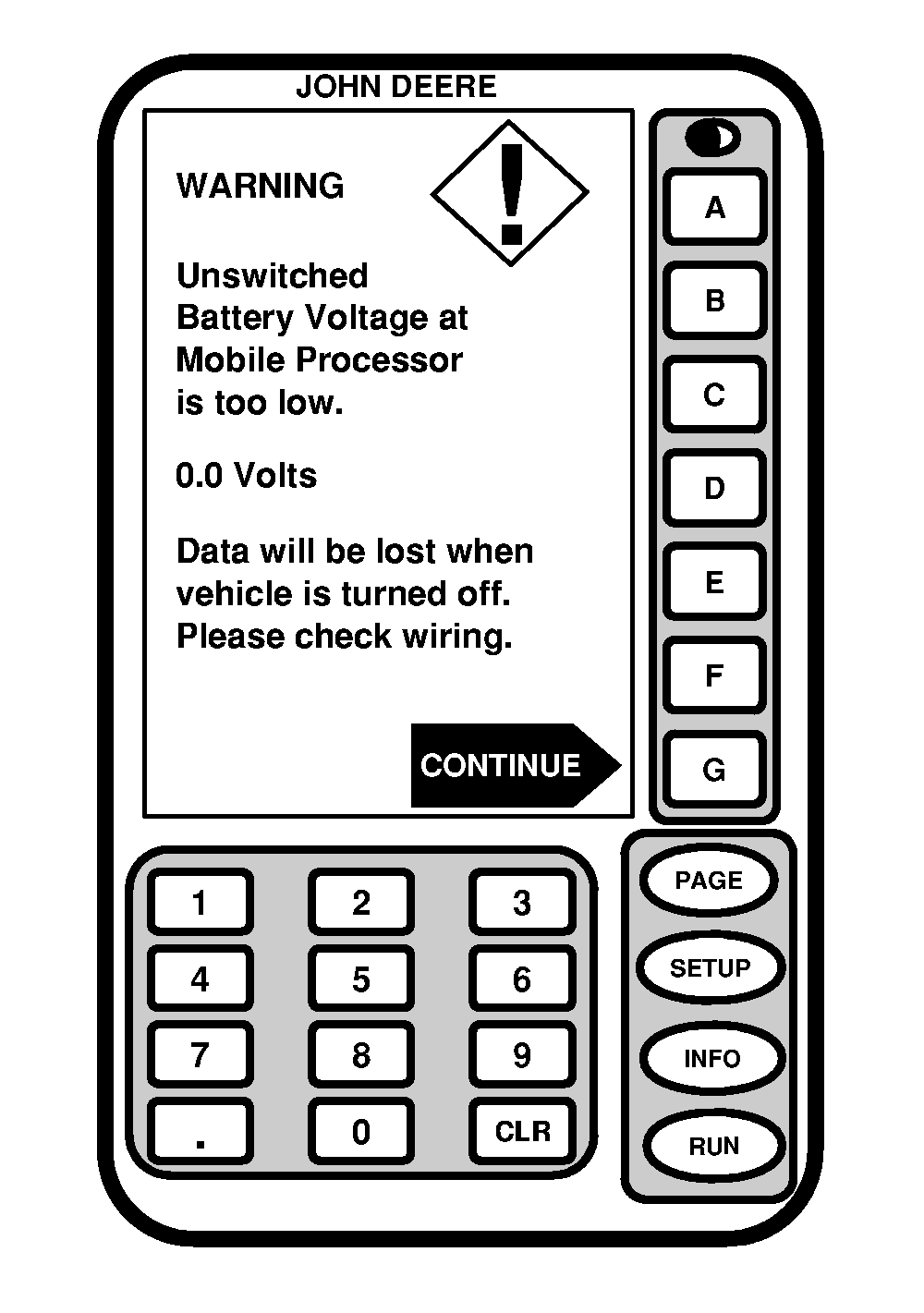

F- Battery Voltage too Low

OUO6050,0000772 -19-12MAR04-3/3
