Setup and Load a Language

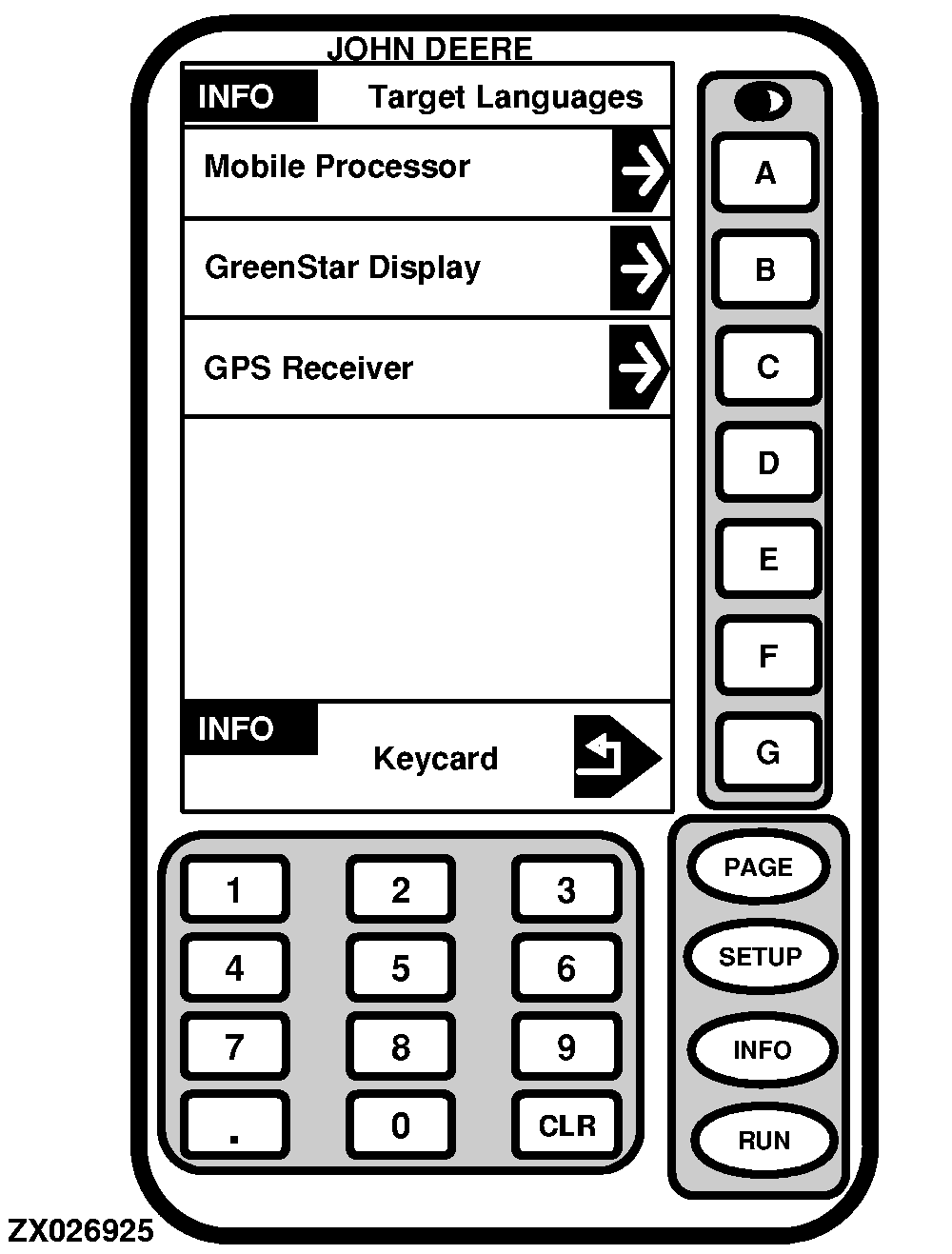

1. Screen: INFO - TARGET LANGUAGES

Press: INFO >> KEYCARD >> TARGET LANGUAGES

NOTE: Language can only be loaded from Harvest Doc, Field Doc, Auto Trac and Parallel Tracking.

For this example Field Doc screens are used, selection procedures are the same for any system in use.

Press button to desired component that you would like to program with a language to (i.e. Mobile Processor). INFO - SELECT LANGUAGE screen will appear.

IMPORTANT: Each component (mobile processor, display and receiver) must be individually loaded with desired language.

ZX026925

OUO6050,000077D -19-11JUN04-1/6

ZX026926
ZX027482

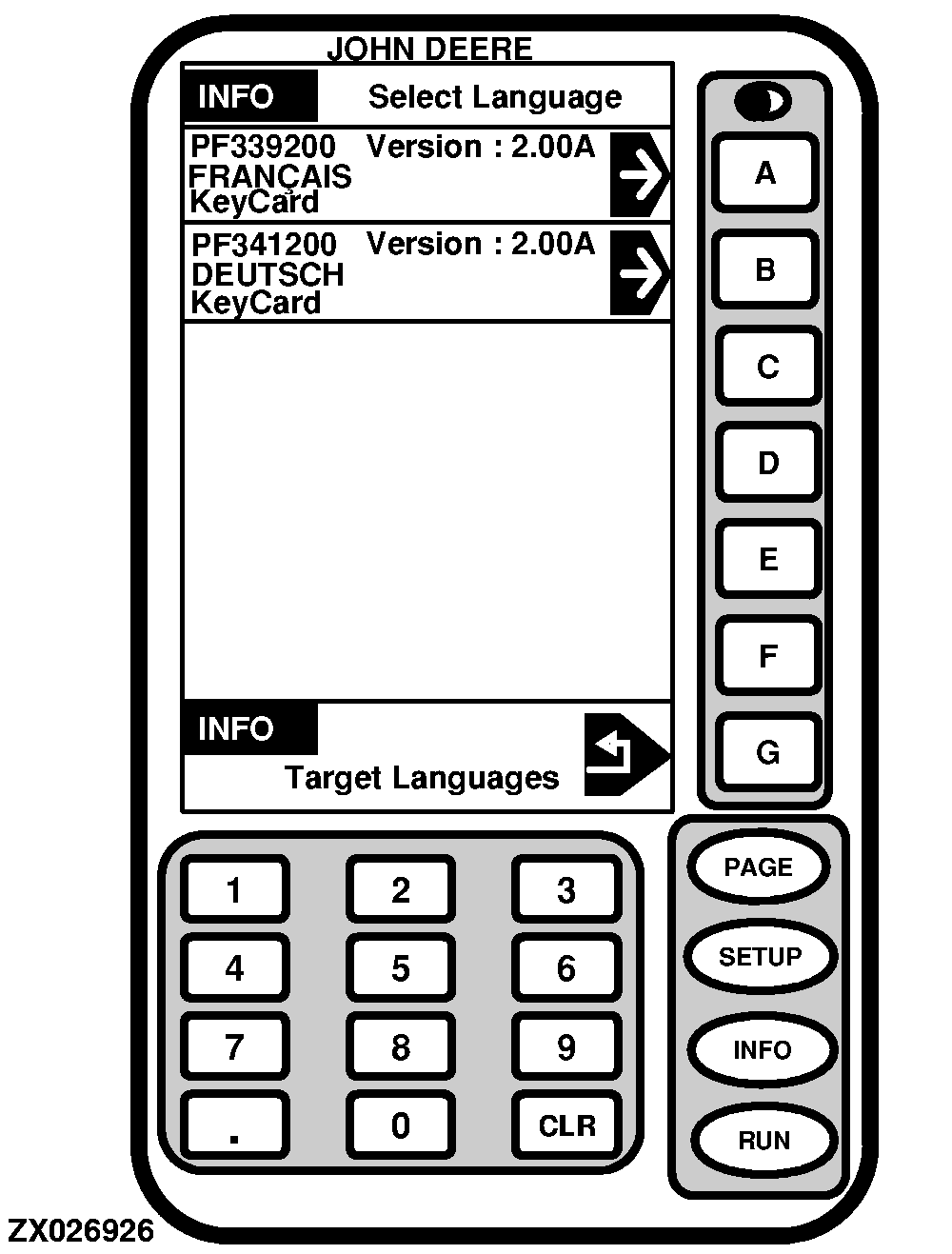

2. Select desired language to load (i.e. French).

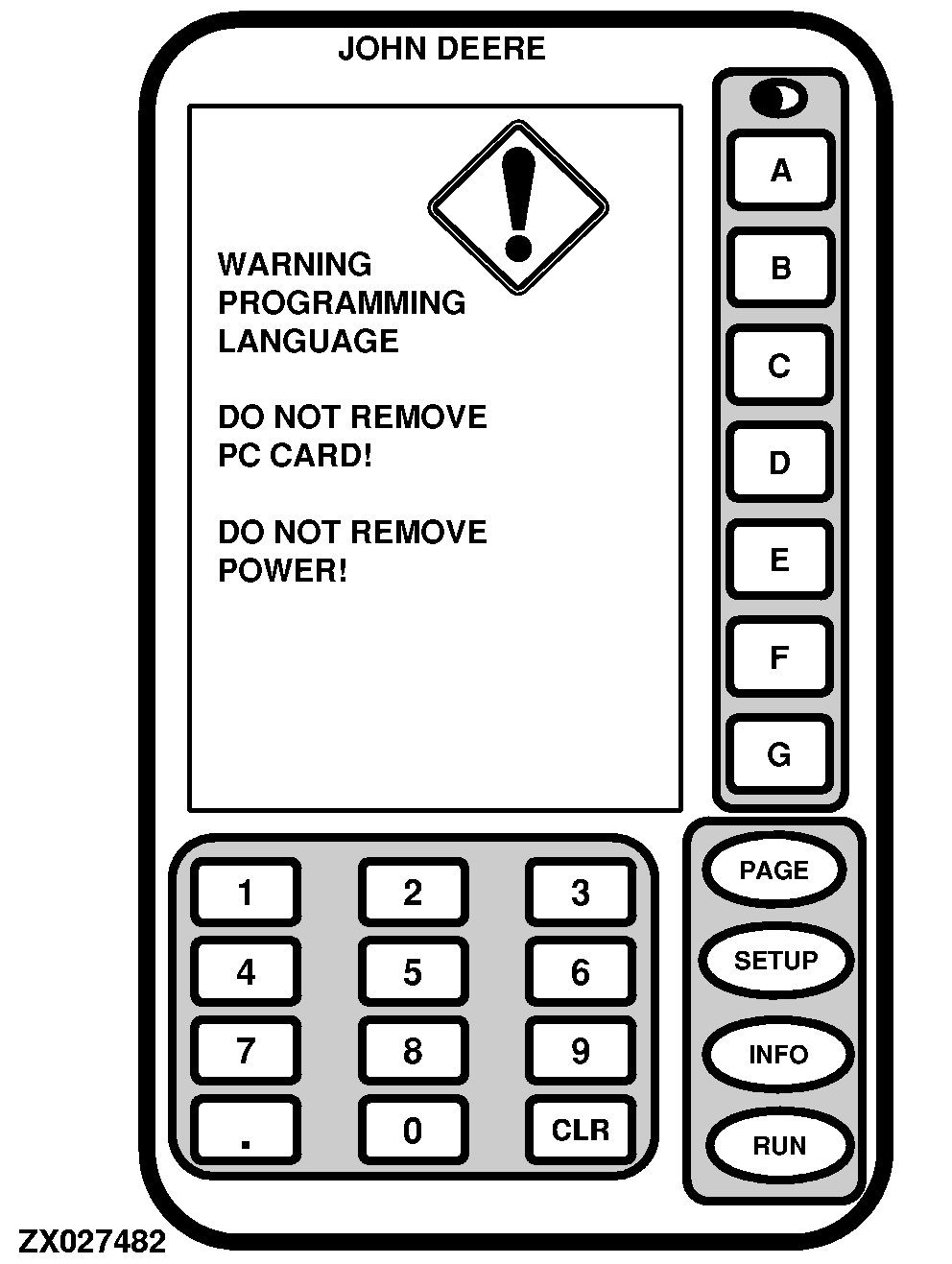

NOTE: Warning screen will be displayed while programming a new language. DO NOT

REMOVE PC CARD, DO NOT REMOVE POWER!

OUO6050,000077D -19-11JUN04-2/6

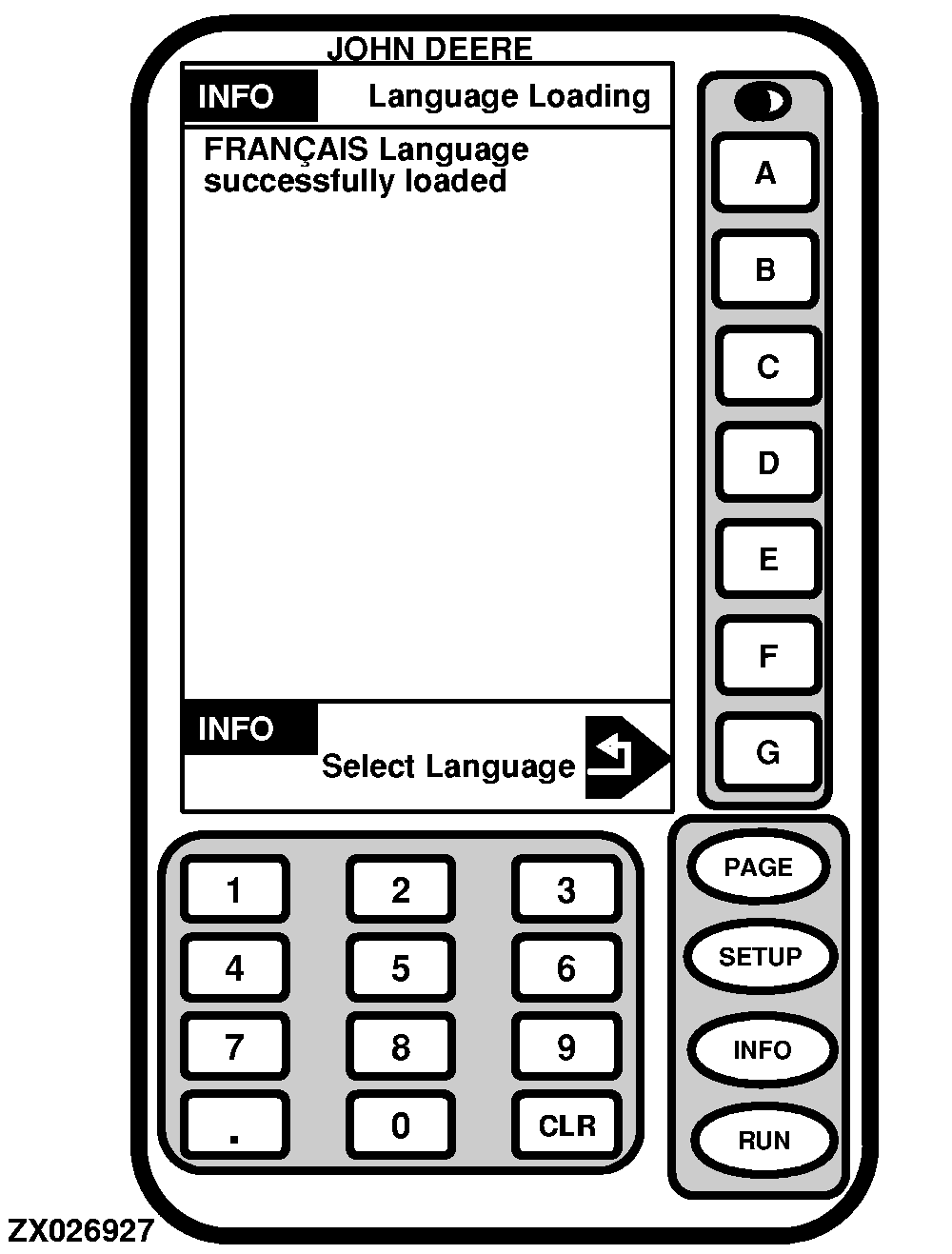

3. Display will show LANGUAGE SUCCESSFULLY LOADED. Press G button to load more than one language.

4. Repeat steps 1-6 to load languages onto additional components.

5. After desired language has been loaded for each component individually, press SETUP button to change language for system (see Language section).

ZX026927

OUO6050,000077D -19-11JUN04-3/6

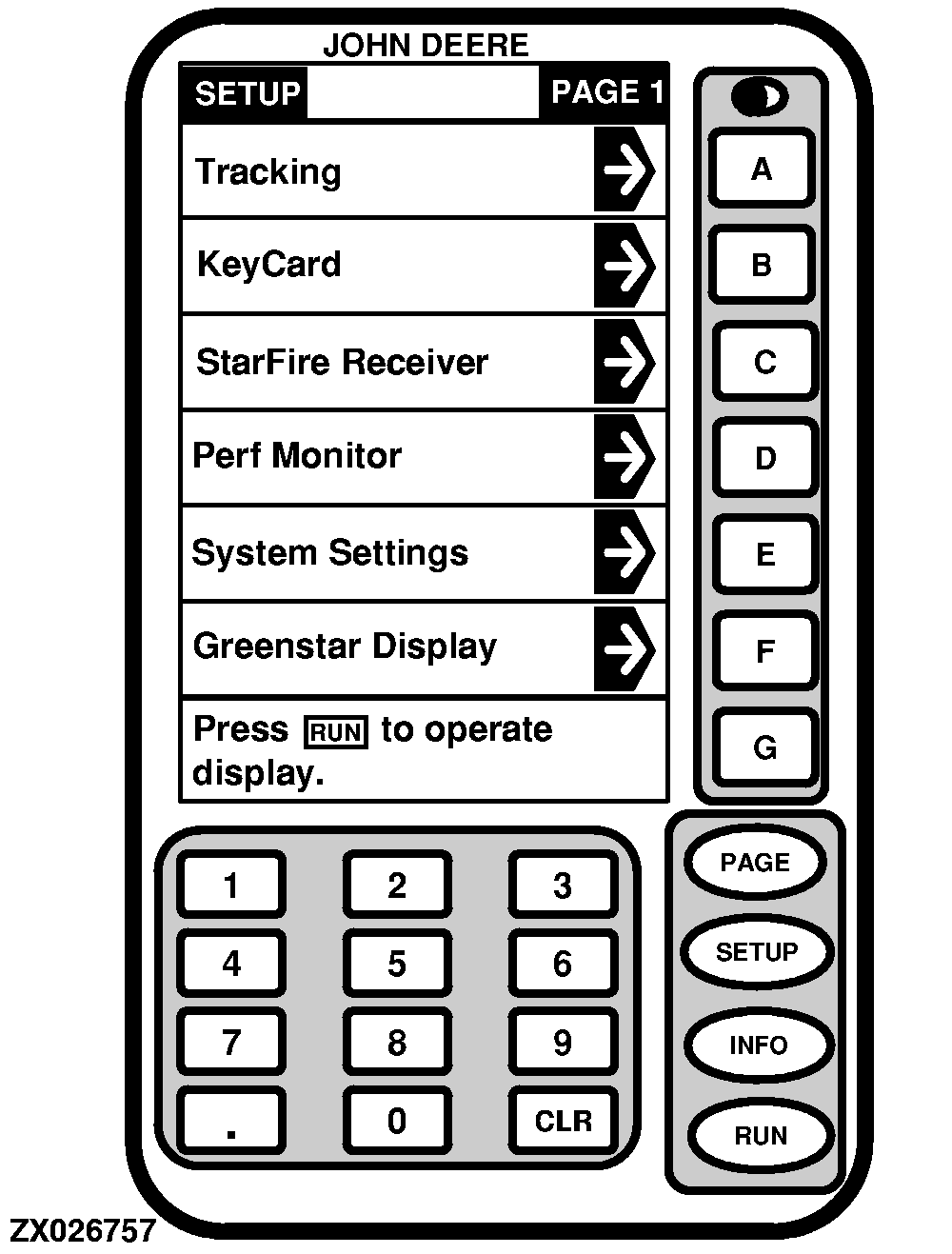

6. Press SYSTEM SETTINGS button to access SETUP - SYSTEM screen.

ZX026757

OUO6050,000077D -19-11JUN04-4/6

ZX026889
ZX026890

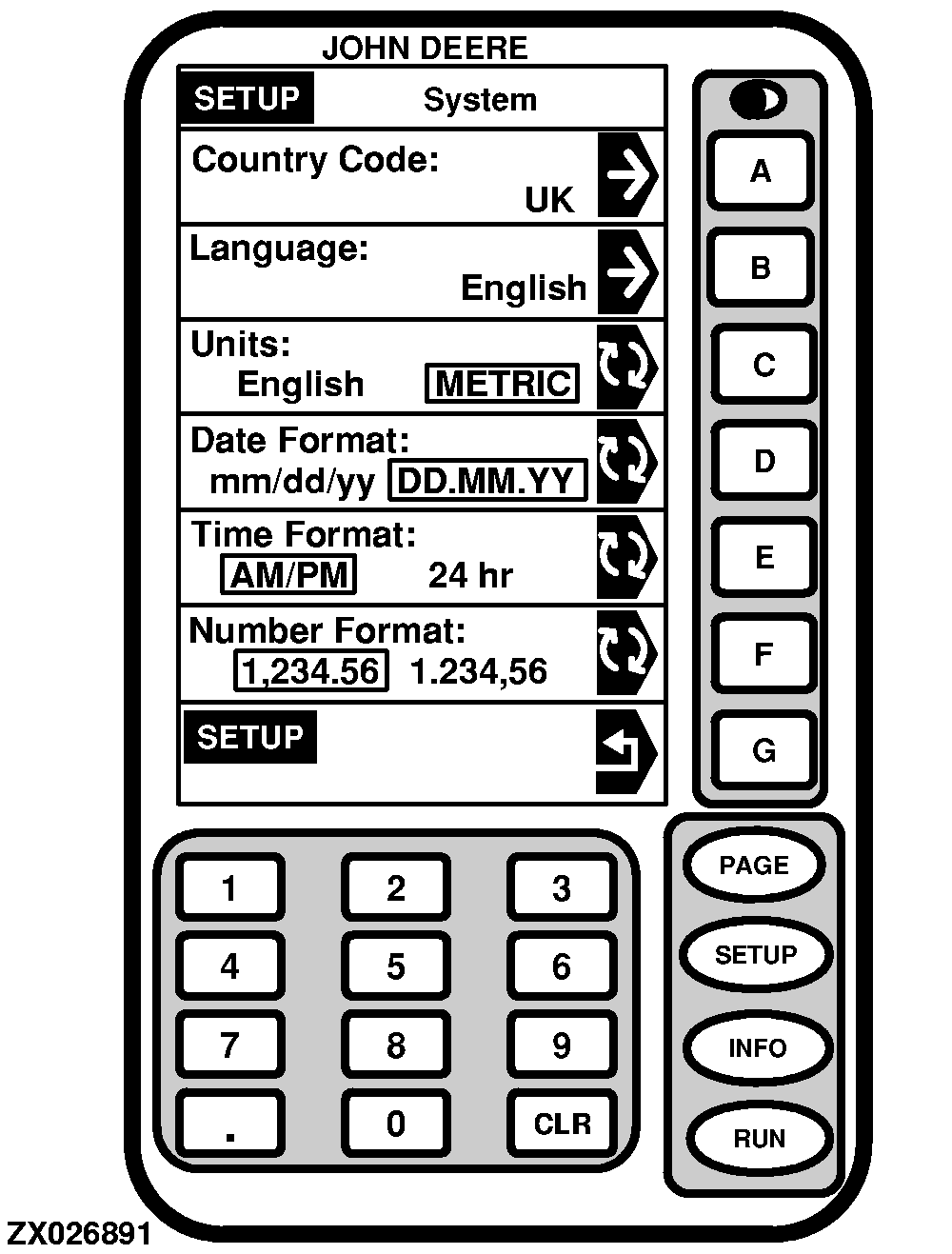

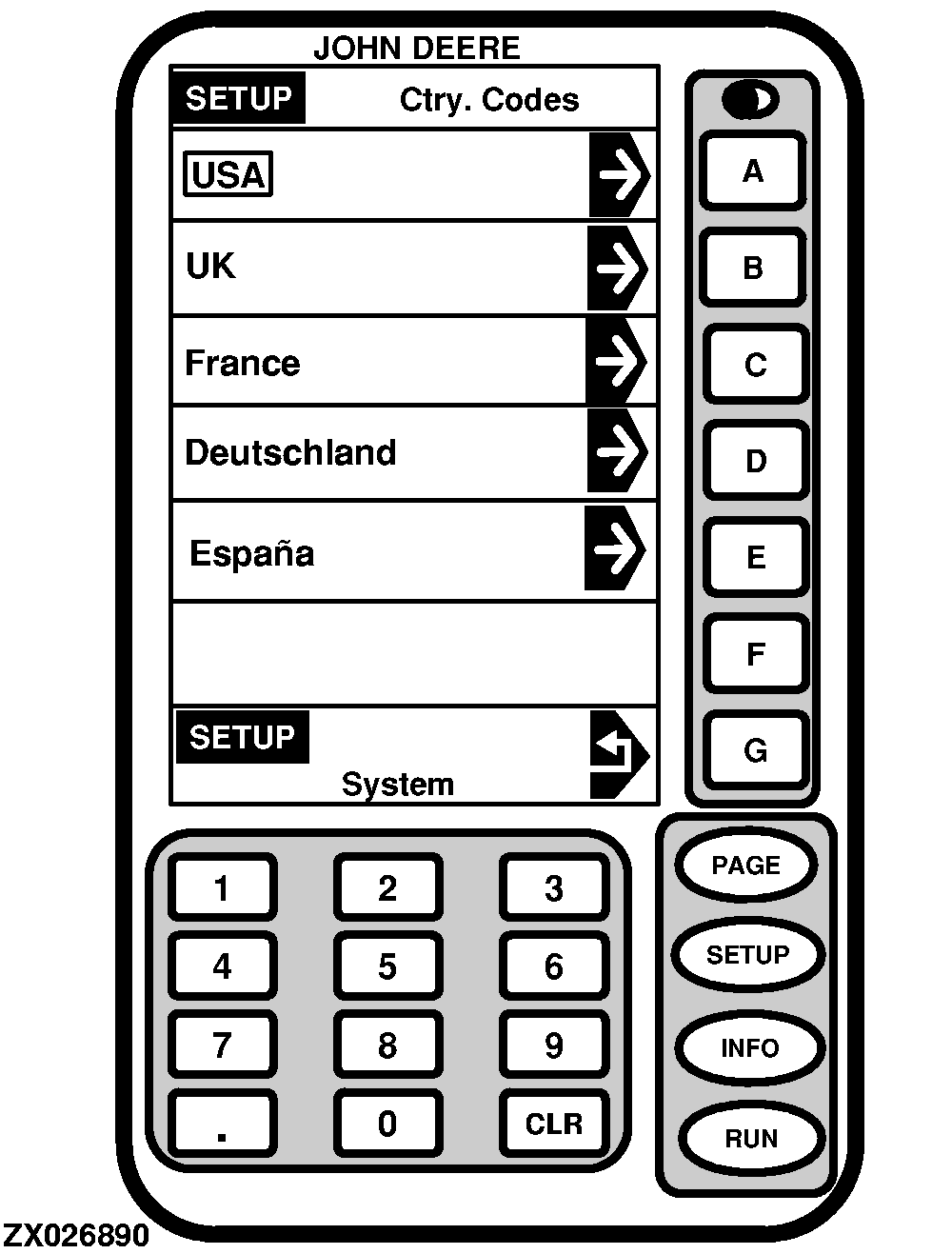

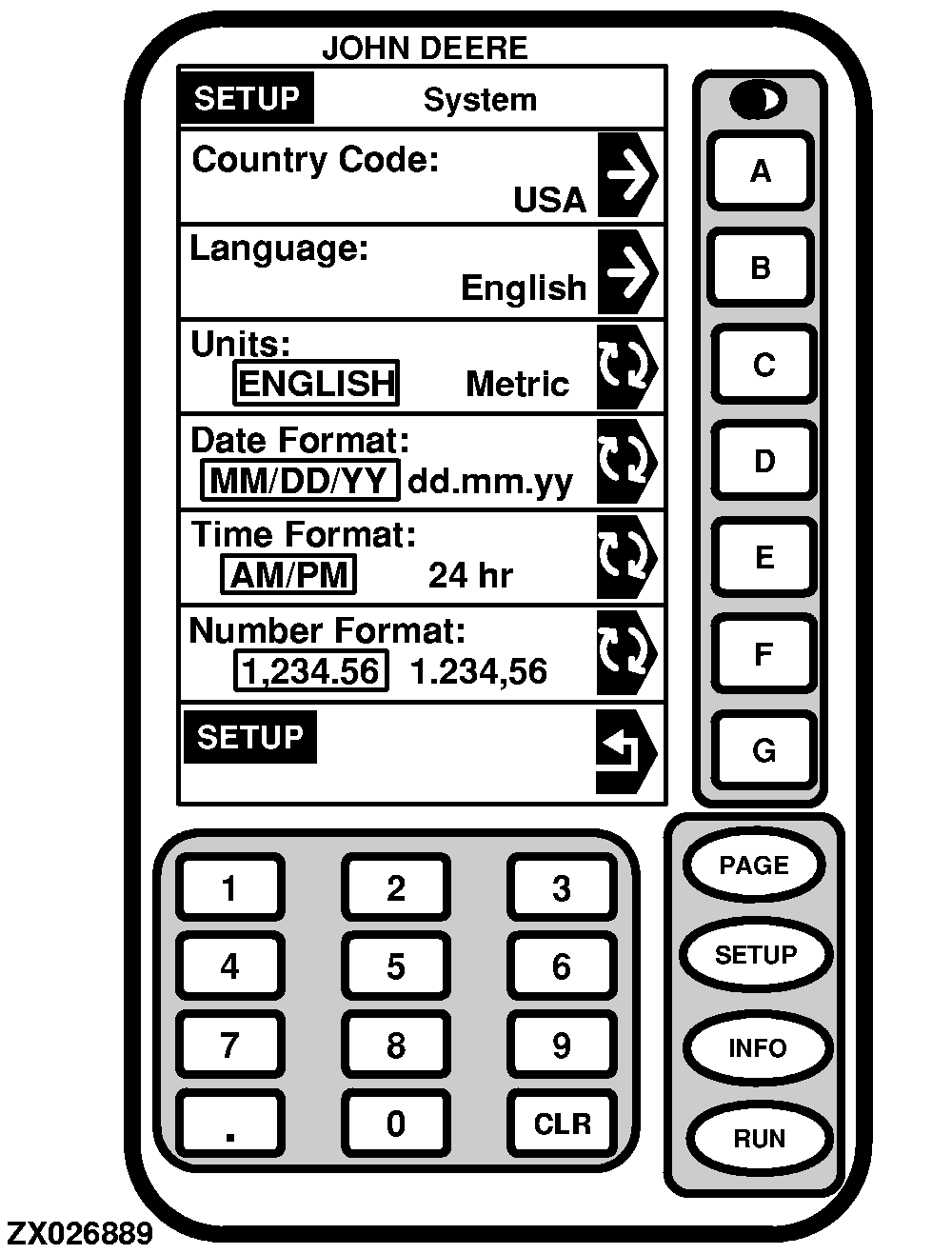

7. Press A button to change country preference. Then press button of desired country.

OUO6050,000077D -19-11JUN04-5/6

ZX026891
ZX027483

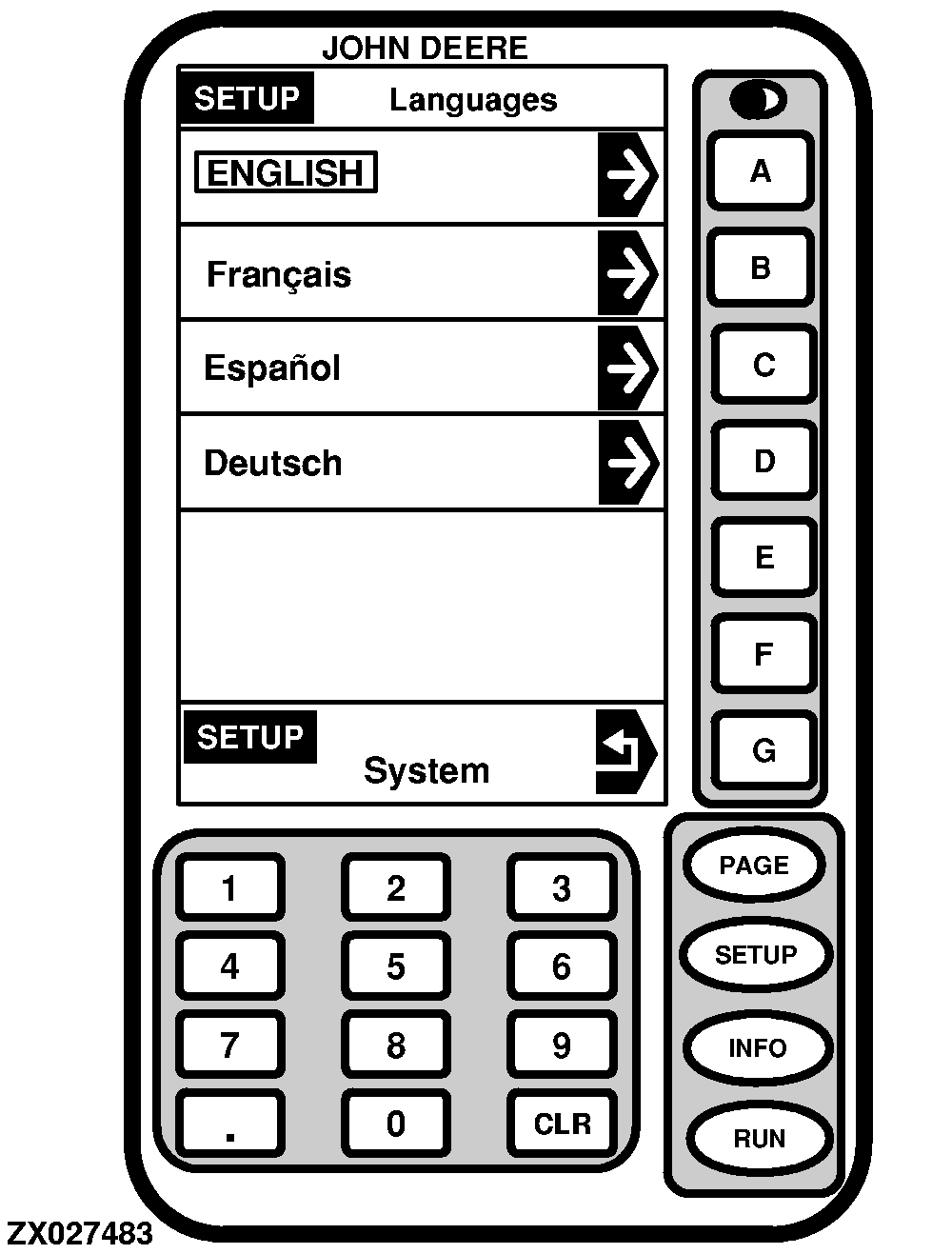

8. Press B button to select desired system language. Then press button of desired language.

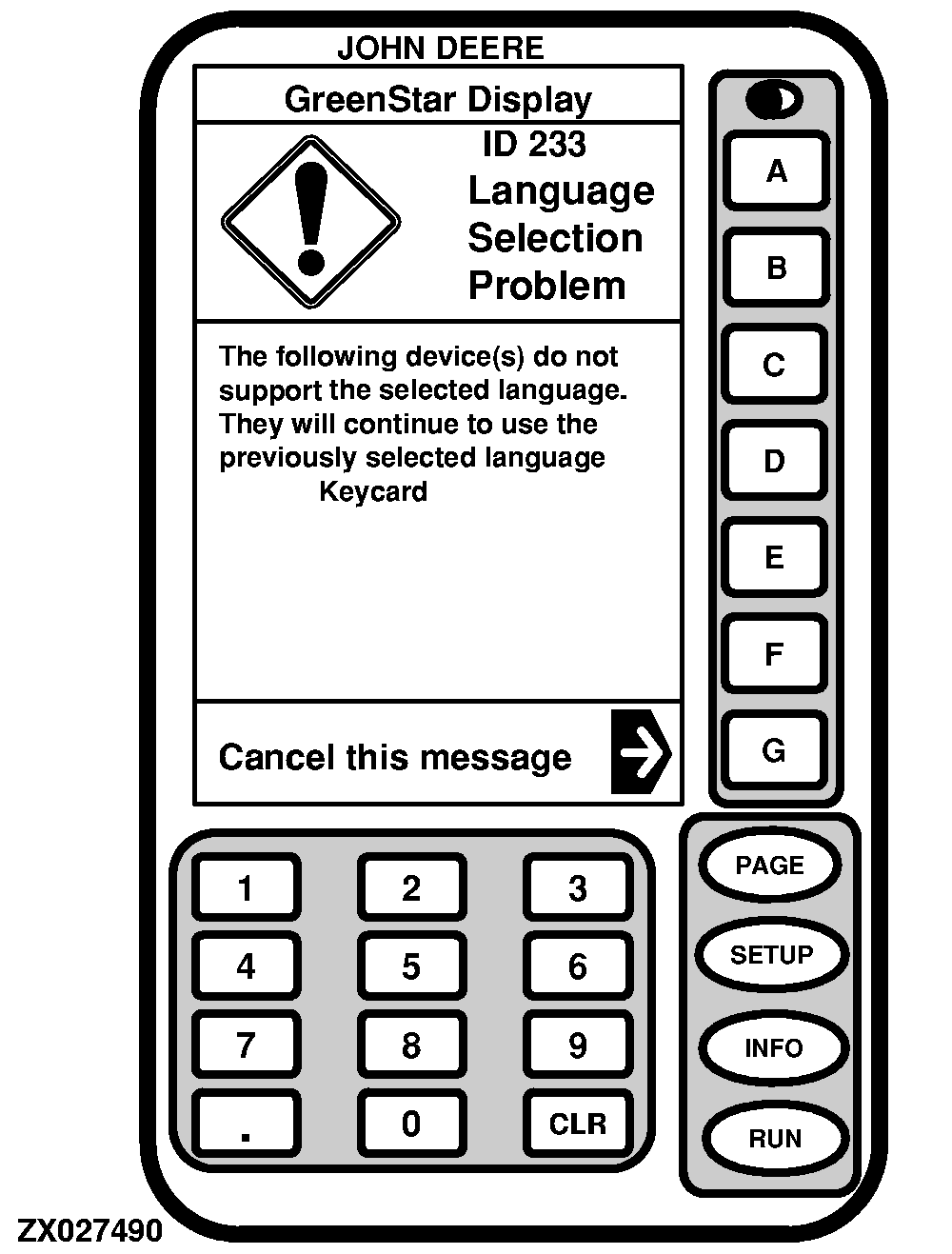

If you choose a language that has not been loaded on component(s), a warning message (i.e. ID233) will be displayed. Press G button to cancel message then load desired language to relevant component(s) as previously described in this procedure.

NOTE: In this example of warning message KeyCard means: mobile processor, GreenStar display and StarFire receiver shall be reprogrammed.

ZX027490

OUO6050,000077D -19-11JUN04-6/6
