General Information

IMPORTANT: Display screens illustrated on the following pages are provided for reference only. Your actual screens may appear differently due to connection of optional devices and/or software version in use.

The display is a multipurpose display with easy-to-use, menu-driven commands. It has a display area with several information display cells, seven alpha keys (A-G) located to the right of display cells, a numeric keypad, a PAGE key and three mode select keys (SETUP, INFO and RUN).

  • SETUP: Allows operator to view and change system configuration.
  • INFO: Allows operator to view totals and diagnostics.
  • RUN: Allows operator to view operational information while in field.

An example of each DISPLAY screen is shown on following pages. Each screen contains many cells and each cell displays a specific piece of information.

Each information display cell is either active or inactive. Active cells display information that can be changed and are highlighted by a black arrow. Inactive cells just display information and cannot be changed.

Pressing alpha key to right of an active cell results in one of following:

  • Data in cell may be changed using numeric key pad.
  • New menu will appear.
  • Process will be started.
  • New page will appear.
  • The selected item will be changed.

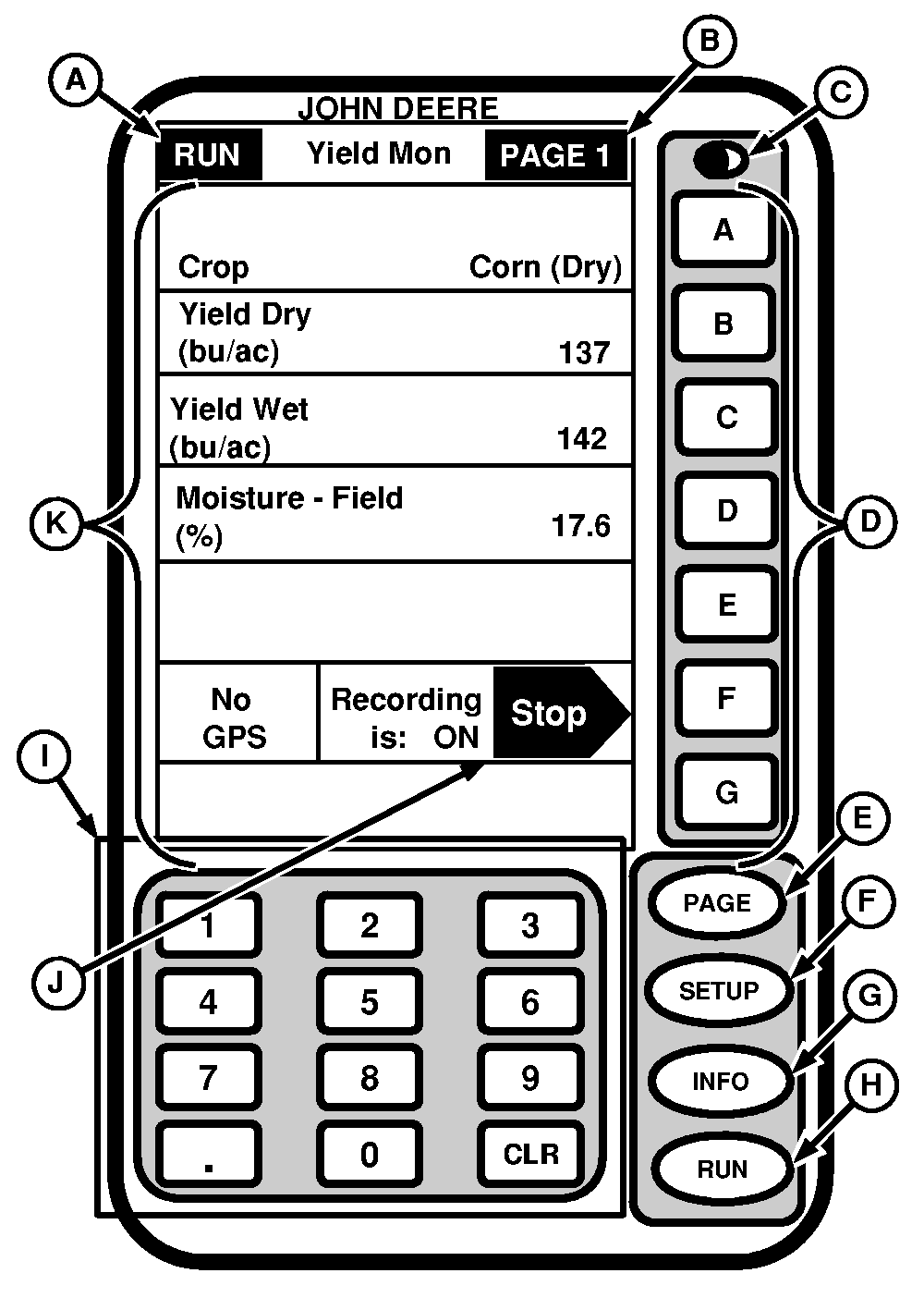

H62388


A-Mode-SETUP, INFO or RUN
B-Page
C-Contrast Button
D-Alpha Keypad
E-Advance Screen Page
F-SETUP Mode Button
G-INFO Mode Button
H-RUN Mode Button
I-Numeric Keypad
J-Black Arrow
K-Display Area

OUO6050,0000795 -19-14JUN04-1/2

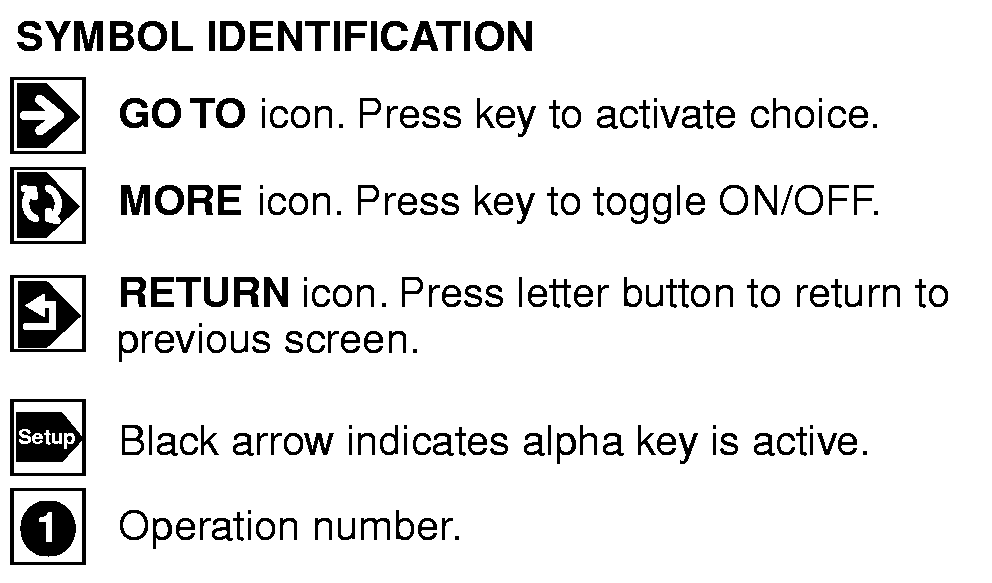

When operating display several icons are displayed in cells. Each icon indicates the type of function that can be performed in that cell.

PC6631

OUO6050,0000795 -19-14JUN04-2/2
