Before You Start

NOTE: There is no power ON/OFF switch for display. Power is applied when machine is turned on.

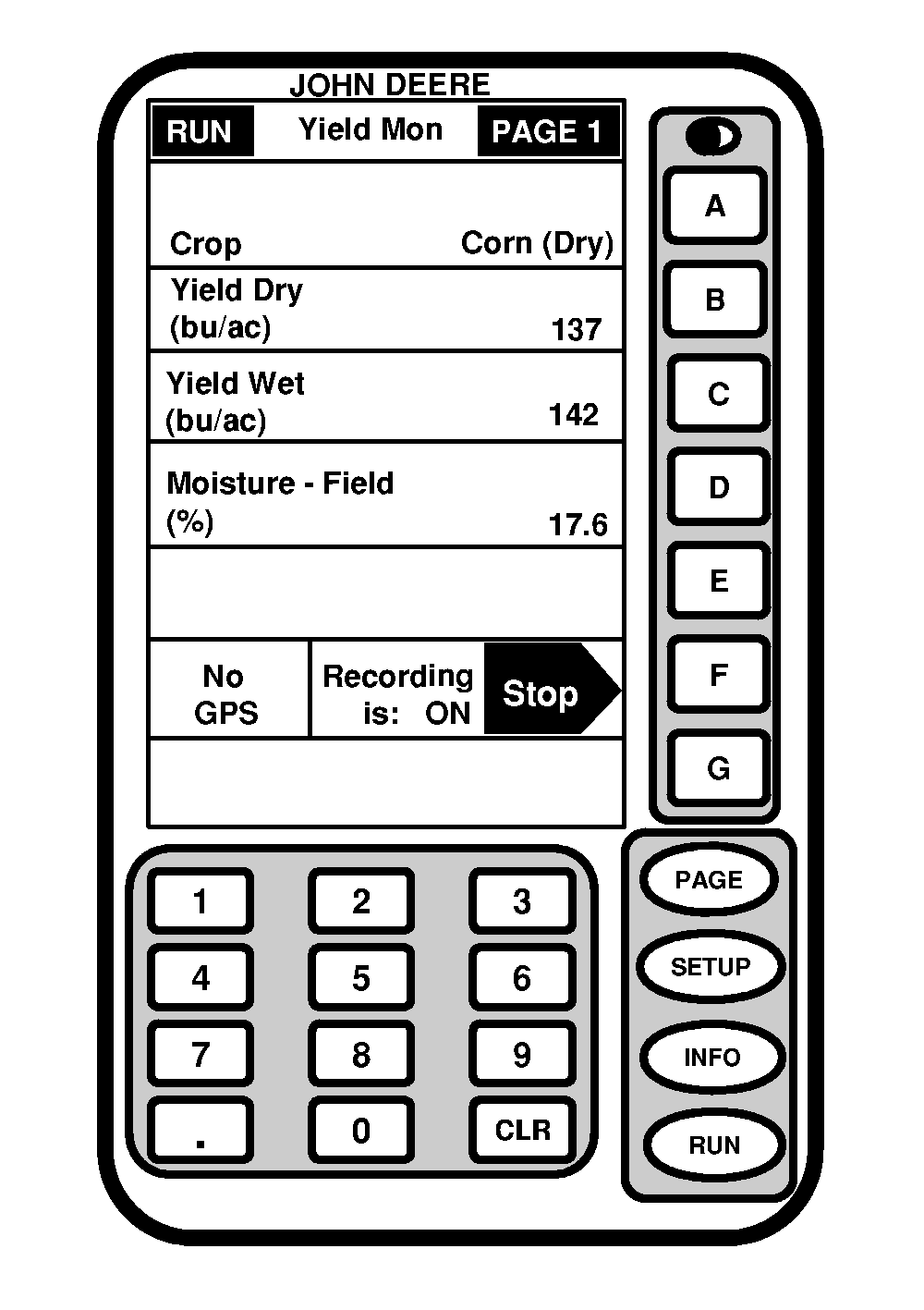

At initial startup display will show RUN - PAGE 1 screen. To advance the screen to view additional pages press PAGE button.

Each information display cell is either active or inactive. Active cells display information that can be changed and are highlighted by a black arrow. Inactive cells display information that cannot be changed.

Pressing alpha button to right of an active cell results in one of the following:

  • Data in cell may be changed using numeric keypad.
  • New menu will appear.
  • Process will be started.
H62391

OUO6050,0000797 -19-24MAR04-1/1
