Row Correction

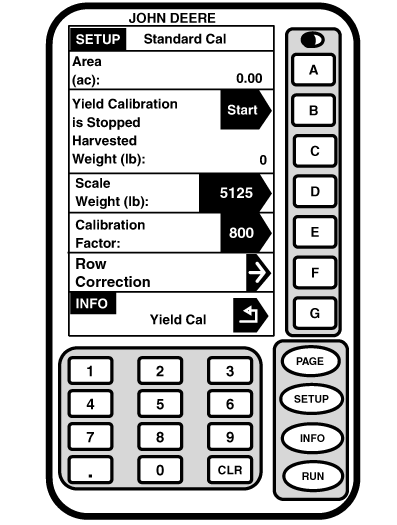

PC8235

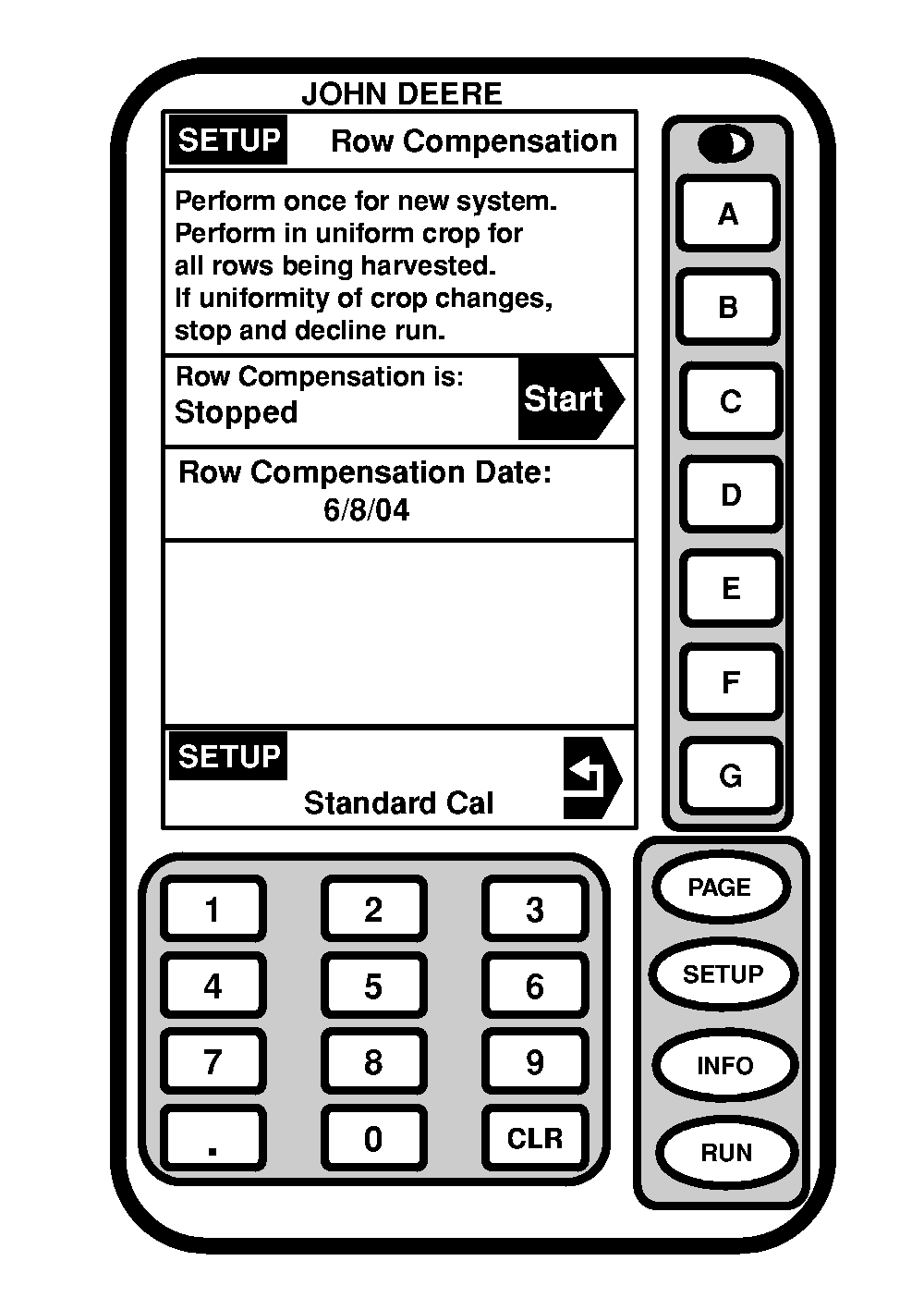

PC8245

Screen: SETUP - STANDARD CAL

Press: SETUP >> HARVEST MONITOR >> YIELD CALIBRATION >> STANDARD CALIBRATION >> ROW CORRECTION

NOTE: Only perform once. This only needs to be performed after system has been installed or if sensor attachment has changed in any way.

1. Press START button to begin procedure.

NOTE: Sample must be of a uniform yield for all rows being harvested.

2. Harvest a yield sample-30.5 m (100 ft) or 1/4 basket.

3. Press STOP button.

OUO6050,00007A7 -19-17JUN04-1/2

4. Accept or decline the run made.

5. A date will be displayed if successful.

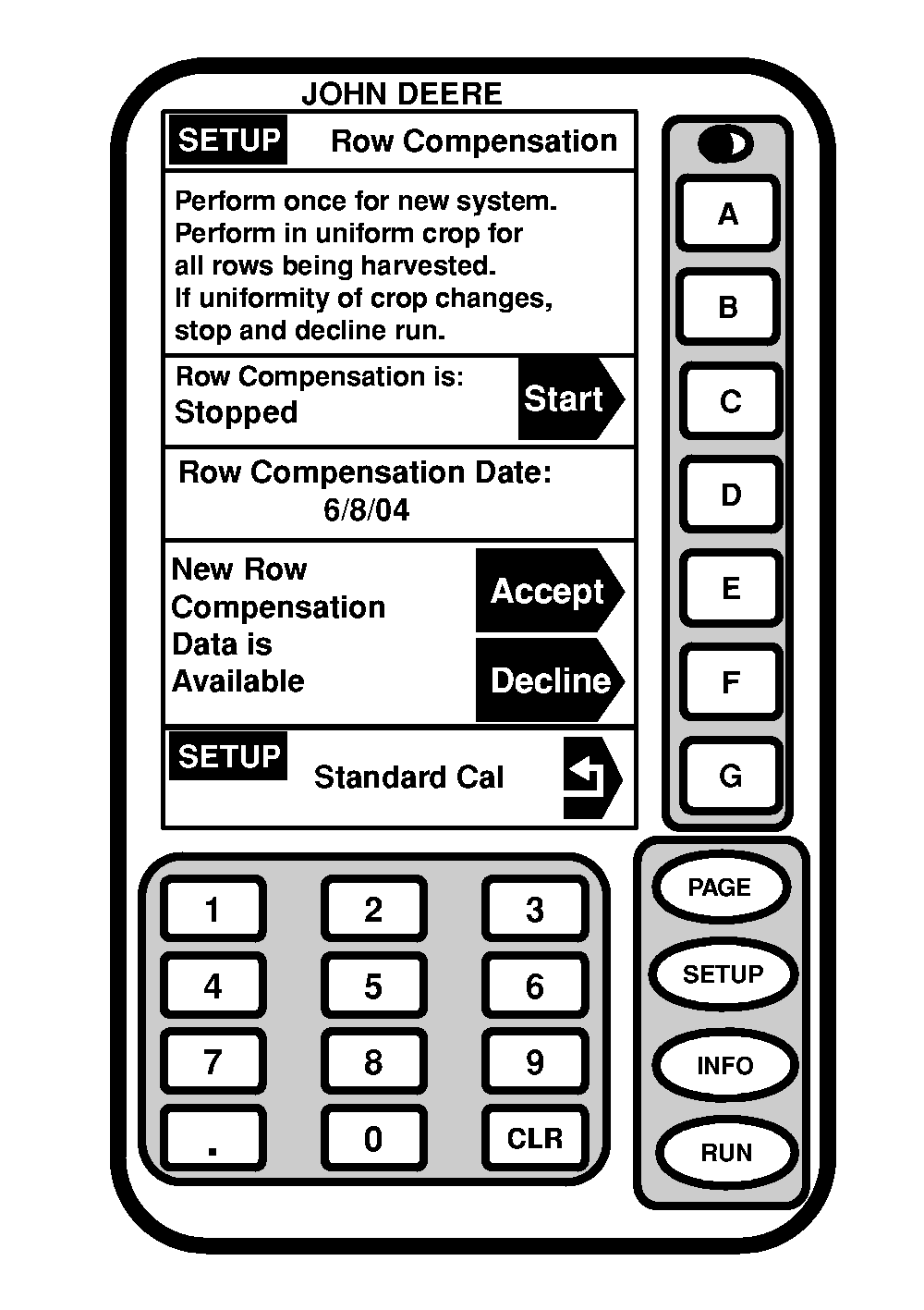

PC8244

OUO6050,00007A7 -19-17JUN04-2/2
