Quick Calibration

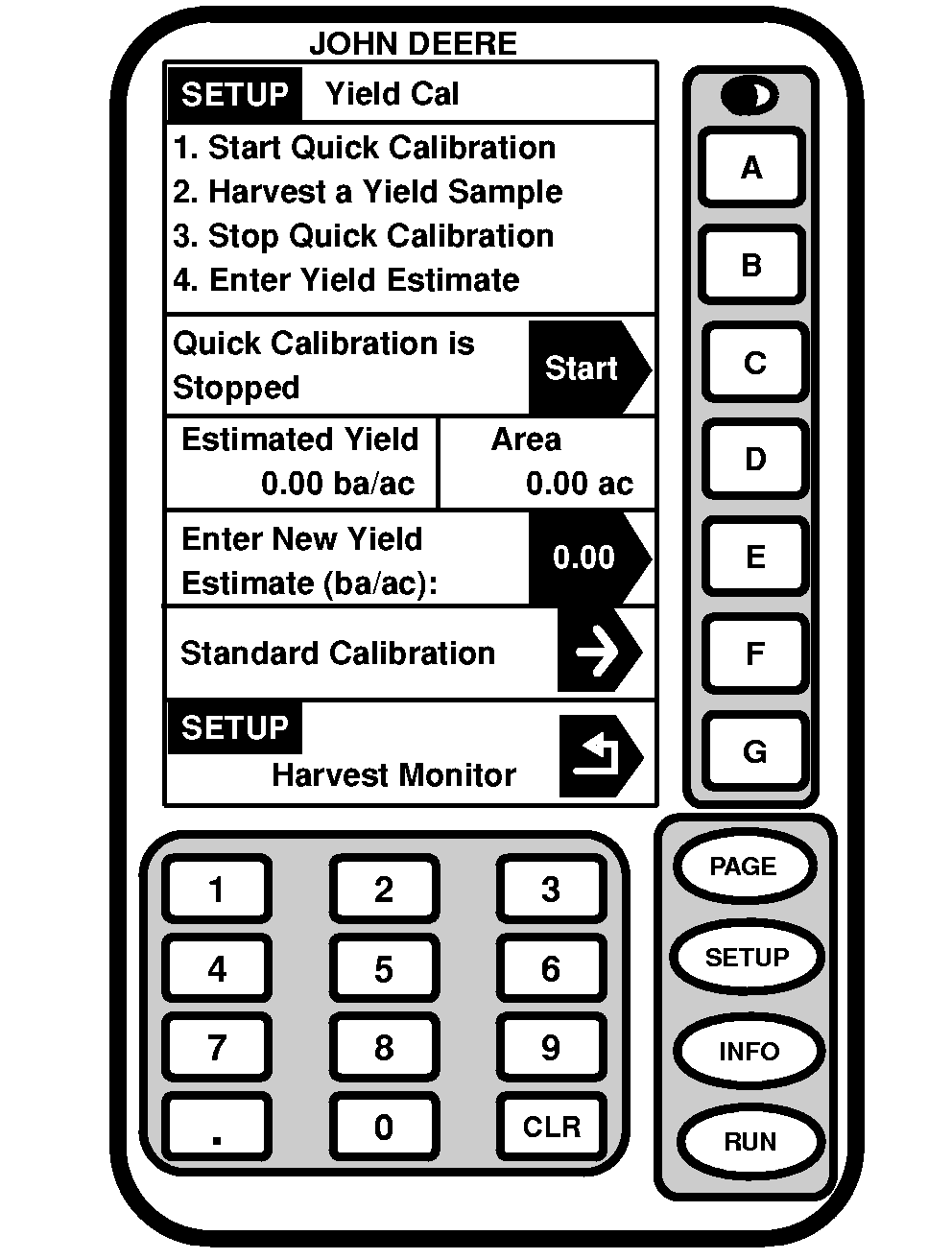

Screen: SETUP - YIELD CAL

Press: SETUP >> HARVEST MONITOR >> YIELD CALIBRATION

IMPORTANT: Before calibrating be sure that harvester basket is empty. Be sure boll buggy or cotton module is empty.

Procedure should be performed at the maximum ground speed which the operator expects to run in this crop and condition, and in an area that is reasonably level and of uniform yield.

If standard calibration is running the estimated yield will be adding up because they are tied together.

If standard calibration has been performed operator does not need to run the quick calibration process.

2. Harvest a yield sample.

3. Press STOP button.

4. Enter yield estimate for sample just harvested.

OUO6050,00007A8 -19-17JUN04-1/1
