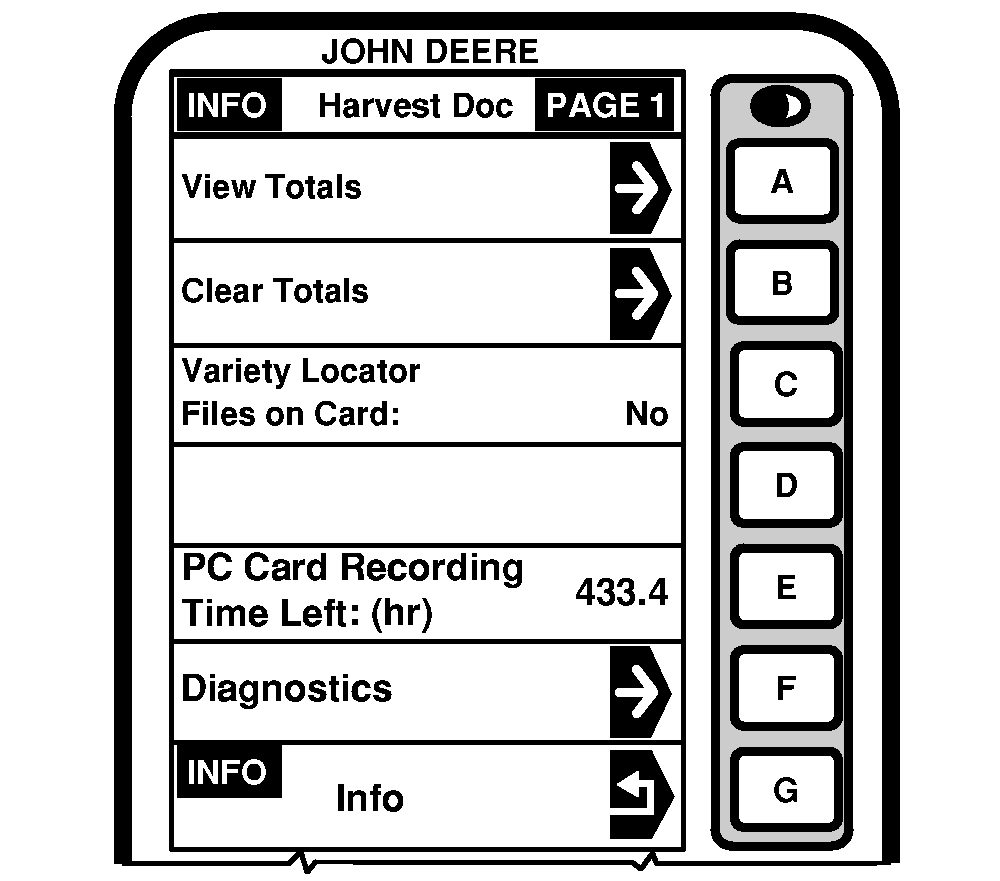

INFO - HARVEST DOC Screen

Screen: INFO - HARVEST DOC - PAGE 1

Press: INFO >> HARVEST DOC

This screen allows an operator to:

  • View Totals (task, field, crop, load)
  • Clear Totals (operation, field, crop, clear all field and crops for all clients)

    NOTE: Variety Locator Files on Card, indicates to operator if there is data recorded to a PC card from desktop software for current farm/field/crop to automatically locate and change them as you harvest.

  • Variety Locator Files on Card YES/NO
  • PC Card Recording Time Left: (hr) (displays hours remaining on PC card)
  • Diagnostics (Receiver and Processor)
PC8021

OUO6050,0001857 -19-07FEB06-1/4


IMPORTANT: All Totals are saved to a PC data card.

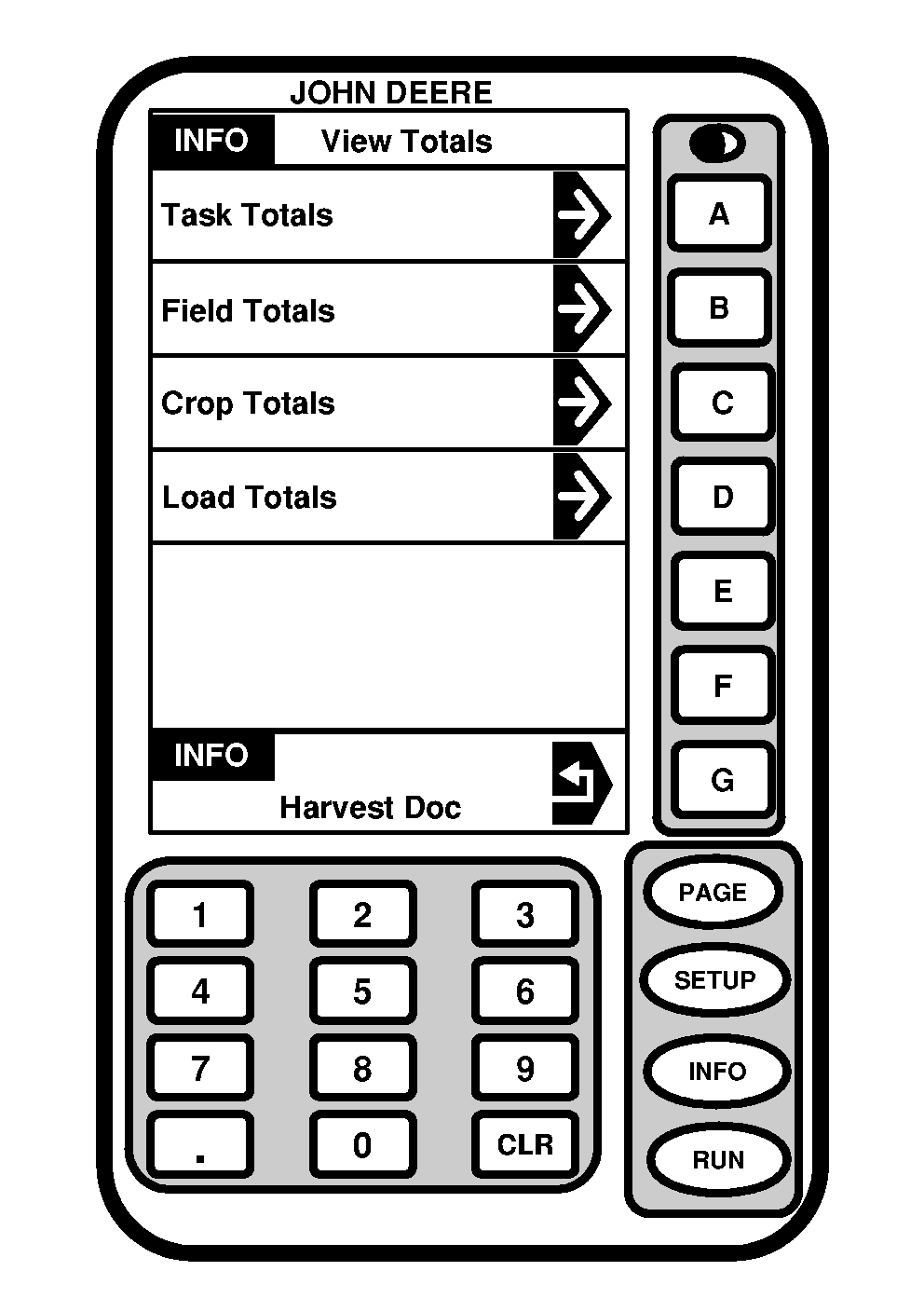

Press VIEW TOTALS button.

This screen allows operator to view totals for:

  • Task
  • Field
  • Crop
  • Load

Press desired total button to view.

PC7599

OUO6050,0001857 -19-07FEB06-2/4

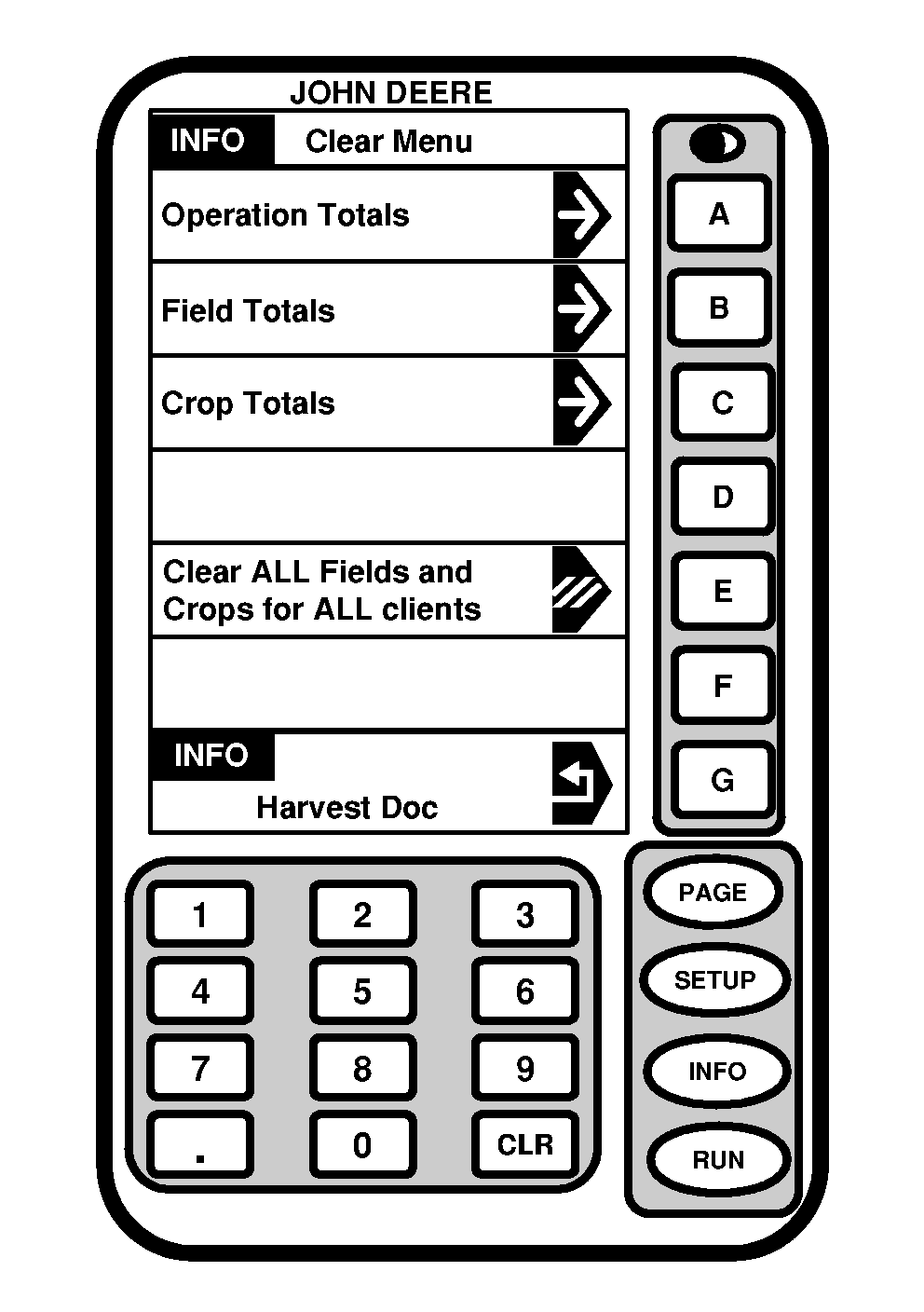

Screen: INFO - CLEAR MENU

Press: INFO >> HARVEST DOC >> CLEAR TOTALS

This screen allows operator to view and clear totals for:

  • Operation
  • Field
  • Crop
  • Clear All Fields and Crops for All Clients

Press desired cell button to view and/or clear totals, press HARVEST DOC button to return without clearing totals.

PC7626

OUO6050,0001857 -19-07FEB06-3/4

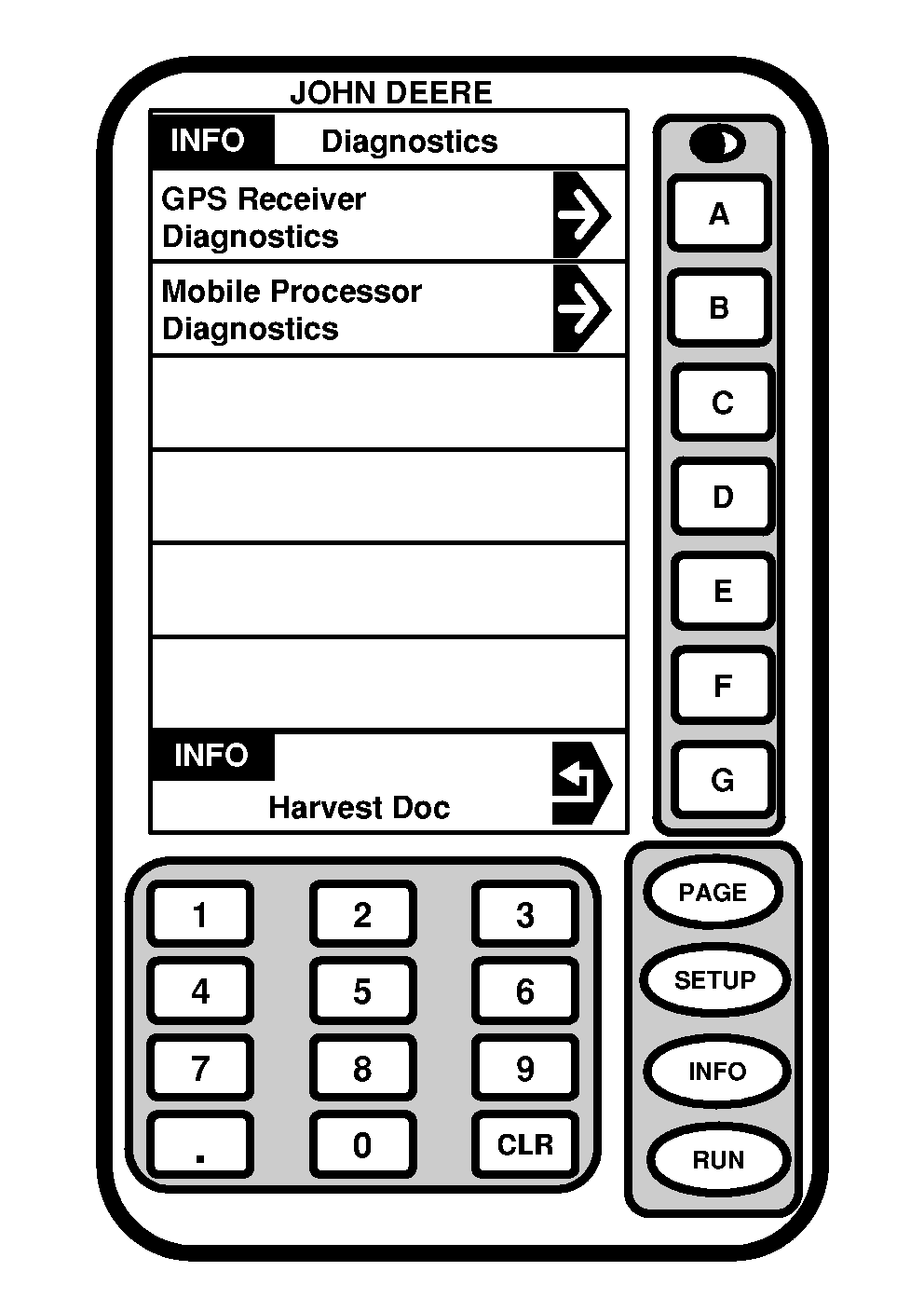

Screen: INFO - DIAGNOSTICS

Press: INFO >> HARVEST DOC >> DIAGNOSTICS

This screen allows operator to view diagnostics for receiver and Processor.

Press desired cell button to view diagnostic information.

PC7631

OUO6050,0001857 -19-07FEB06-4/4
