Overview:
SF2/RTK Activations,
SF2 Subscription

StarFire iTC is offered in 2 configurations: SF1 World Solution and SF2 Ready.

SF1 World Solution: SF1 is a no-charge satellite-based differential correction signal offered exclusively by John Deere, delivering accuracy adequate for non row crop applications. SF1 StarFire iTC can be upgraded to SF2-Ready by visiting your John Deere dealer, calling Customer Care Center, or visiting StellarSupport and purchasing SF2 Ready activation.

NOTE: Serial port GPS information (NMEA) is only outputted for SF1 when connected to a GreenStar system.

SF2 Ready: SF2 is a +/- 4 in. pass to pass differential correction signal provided exclusively by John Deere. While StarFire iTC can be ordered SF2 Ready, SF2 Ready activation must be obtained by visiting www.StellarSupport.com or by calling 888-GRN-STAR (COMAR order number and receiver serial number are needed) and manually entered into receiver. Once activation has been entered, SF2 license can be purchased for either a 3, 6, 12, 24, or 36 month period.

NOTE: StarFire iTC must be SF2 Ready prior to upgrading receiver to RTK.

RTK: RTK is the highest accuracy correction signal. It requires use of a local base station and radio communication equipment. Each receiver used in the RTK system must be activated for RTK. This activation exists for the life of the receiver and can be transferred.

OUO6050,0001940 -19-07FEB06-1/3

NOTE: Receiver serial number is required to obtain SF2 Ready or RTK activation codes. SF2 Ready and RTK also require corresponding COMAR order number if purchased from your John Deere dealer.

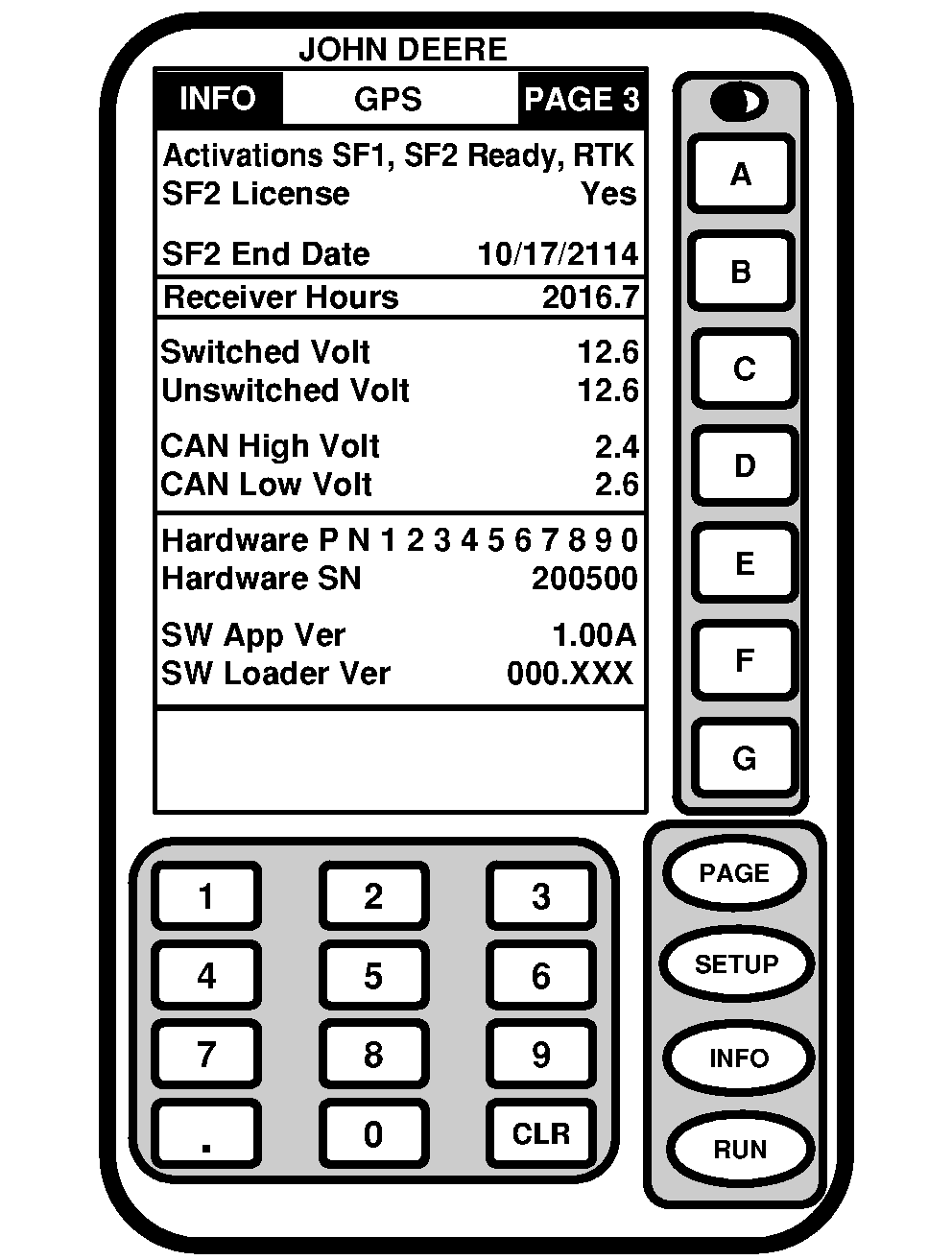

1. Press: INFO >> STARFIRE RECEIVER >> PAGE >> PAGE

Locate serial number (Hardware SN).

NOTE: A 24-digit activation code will be provided by www.StellarSupport.com or Customer Care Center, either through postal service or E-mail.

For RTK customers only: RTK activation is purchased as part of each RTK base station and vehicle bundle. To obtain 24 digit RTK activation code, visit StellarSupport.com or call 1-888-GRN-STAR and provide COMAR order number for RTK system and receiver serial numbers.

2. Login to www.stellarsupport.com or call 1-888-GRN-STAR (North America only) to obtain activation code.

OUO6050,0001940 -19-07FEB06-2/3

NOTE: Enter 24 digit activation code number in three cells that have eight zero digits.

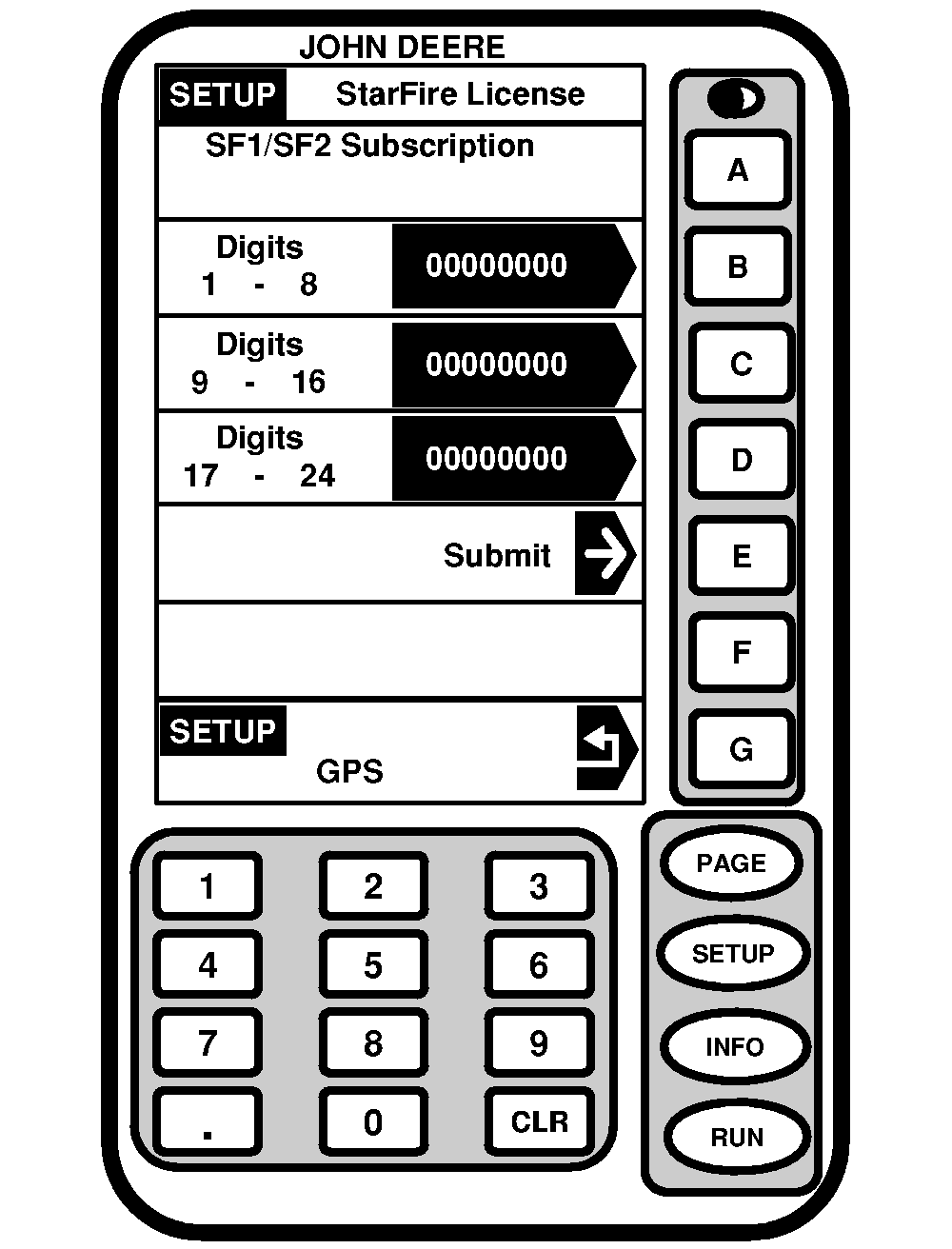

3. Screen: SETUP - STARFIRE LICENSE

Press: SETUP >> STARFIRE RECEIVER >> LICENSE/ACTIVATE

Press DIGITS 1-8 button and enter first eight digits of activation code. Press DIGITS 1-8 button again to enter value.

4. Press DIGITS 9-16 button and enter second eight digits of activation code. Press DIGITS 9-16 button again to enter value.

5. Press DIGITS 17-24 button and enter last eight digits of activation code. Press DIGITS 17-24 button again to enter value.

6. Press SUBMIT button

7. Press RETURN button to return or SETUP button to continue setup operations.

NOTE: Three 24 hour grace periods are available when current license expires. This is provided to allow sufficient time for customer to renew a license. Grace period signal will be SF 2 differential correction signal.

If license expires while operating or since last operated, a warning screen will appear.

Warning screen can be cleared by pressing CONTINUE button or a grace period can be activated by pressing USE 1 button if needed.

OUO6050,0001940 -19-07FEB06-3/3
