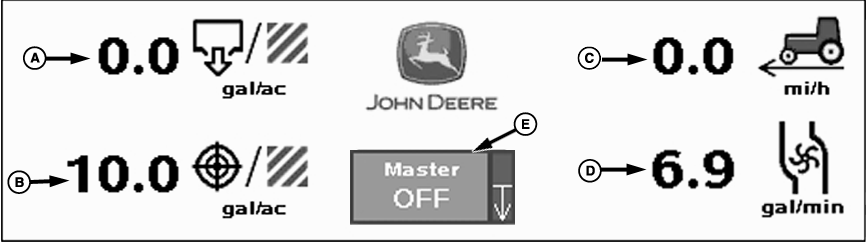

Main Screen Indications

A-Actual Rate Per Area B-Target Rate Per Area

C-Travel Speed

D-Flow Per Minute

E-Master Switch Indicator/Implement Height Switch Indicator

NOTE: Flow per minute (D): Pressure will be displayed instead of flow if system is configured for a pressure sensor. NOTE: The target and actual rates for NH3 are shown as lbs of total product per acre (not lbs of Nitrogen per acre).

The height switch indicator may be either in an up or down position to give a visual indication relative to the implement.
