Implement Setup

Press the Setup menu button to enter Rate Controller setup.

PC9419

Setup Softkey

JS56696,0000028 -19-05JUL07-1/6

PC9420

Implement Tab


A-Implement Tab


B-System Tab


C-Alarms Tab


D-Rates Tab

NOTE: Master switch must be off to change most settings or values.

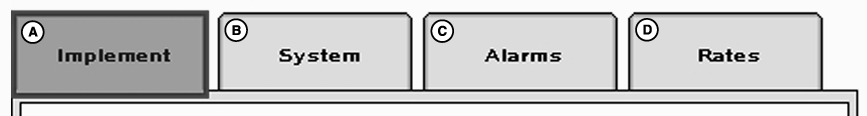

Press the Implement tab at the top to enter implement setup and the following screen will be displayed.

JS56696,0000028 -19-05JUL07-2/6

NOTE: Implement name must be defined before the System tab, Alarm tab, and Rates tab are enabled.

Select the implement type from the implement type drop-down menu.

When sprayer or liquid fertilizer is the implement type, and unexpected product flow is detected, a warning may appear.

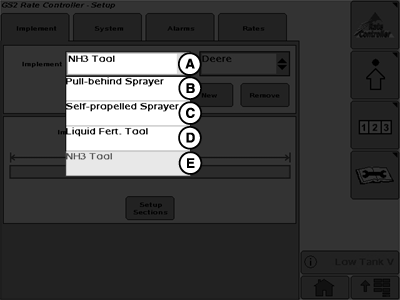

A-Implement Type Drop-Down Menu
B-Pull-Behind Sprayer
C-Self-Propelled Sprayer
D-Liquid Fert. Tool
E-NH3 Tool

PC10186

Implement Type Drop-Down Menu

JS56696,0000028 -19-05JUL07-3/6

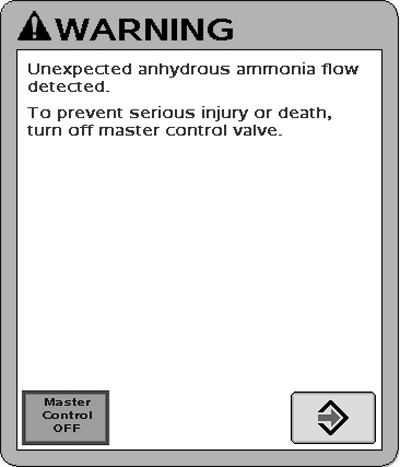

causym CAUTION: Unexpected anhydrous ammonia flow detected. To prevent serious injury or death, turn off master control valve.

This warning occurs if the GS2 Rate Controller has attempted to close the On/Off valve but still detects flow. If the Master Control OFF button is selected, the system will also attempt to shut off the control valve.

PC10200

JS56696,0000028 -19-05JUL07-4/6

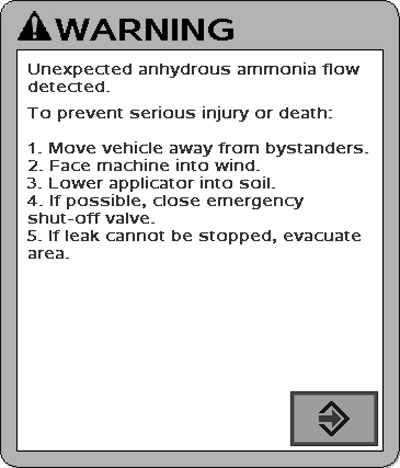

causym CAUTION: Unexpected anhydrous ammonia flow detected. To prevent serious injury or death:

1. Move vehicle away from bystanders.
2. Face machine into wind.
3. Lower applicator into soil.
4. If possible, close emergency shut-off valve.
5. If leak cannot be stopped, evacuate area.

This warning occurs if the GS2 Rate Controller has attempted to close all valves but still detects flow. To reduce risk of injury, follow the instructions on the screen.

PC10203

JS56696,0000028 -19-05JUL07-5/6

causym CAUTION: Unexpected chemical flow detected. To prevent injury to a bystander, shut off solution pump.

This warning occurs if the GS2 Rate Controller has attempted to close the section valves but still detects flow.

PC10199
