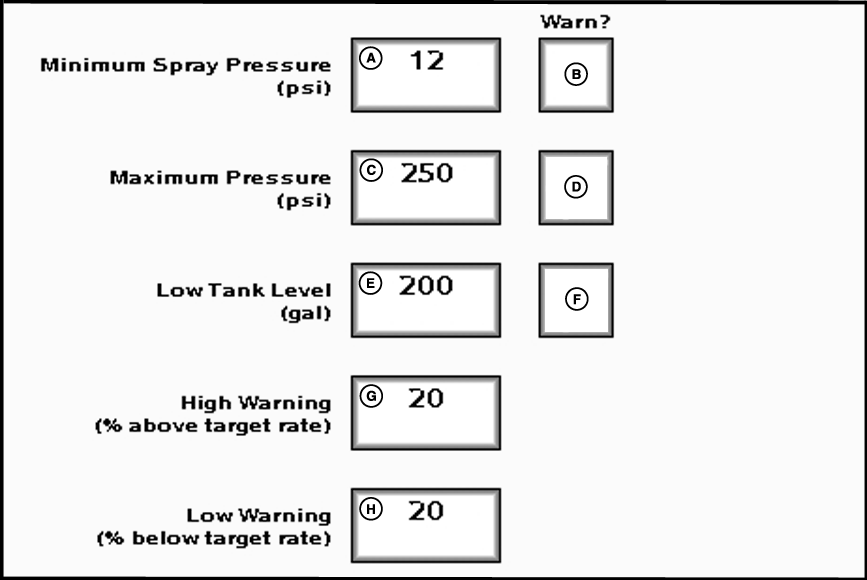

Alarm Settings

A-Minimum Spray Pressure Input Box B-Minimum Spray Pressure Warn Enable/Disable Box

C-Maximum Pressure Input Box D-Maximum Pressure Warn Enable/Disable Box

E-Low Tank Level Input Box F-Low Tank Level Warn Enable/Disable Box G-High Warning Input Box (% Above Target Rate)

H-Low Warning Input Box (% Below Target Rate)

Minimum spray pressure, maximum pressure, and low tank level alarms can be toggled on or off via the check boxes under warn.

Values for the five alarms may be predefined by entering the figure in the numeric entry boxes.

JS56696,0000030 -19-05JUL07-1/1
