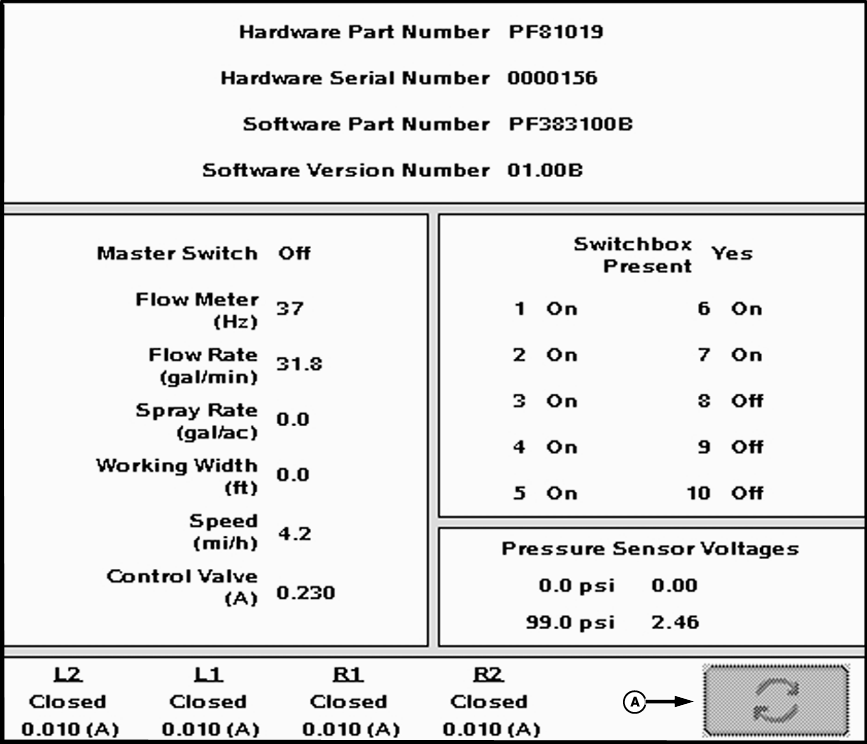

Rate Controller Readings

A-Section Valve Status Toggle Button

Section valve status toggle is used when there are more than 5 section valves. It will show the five left most sections first and the next five sections later. If there are 5 or less sections, the button is disabled.

NOTE: Current sensing values across bottom of page are not available for 3-wire valves.
