Rinse Cycle

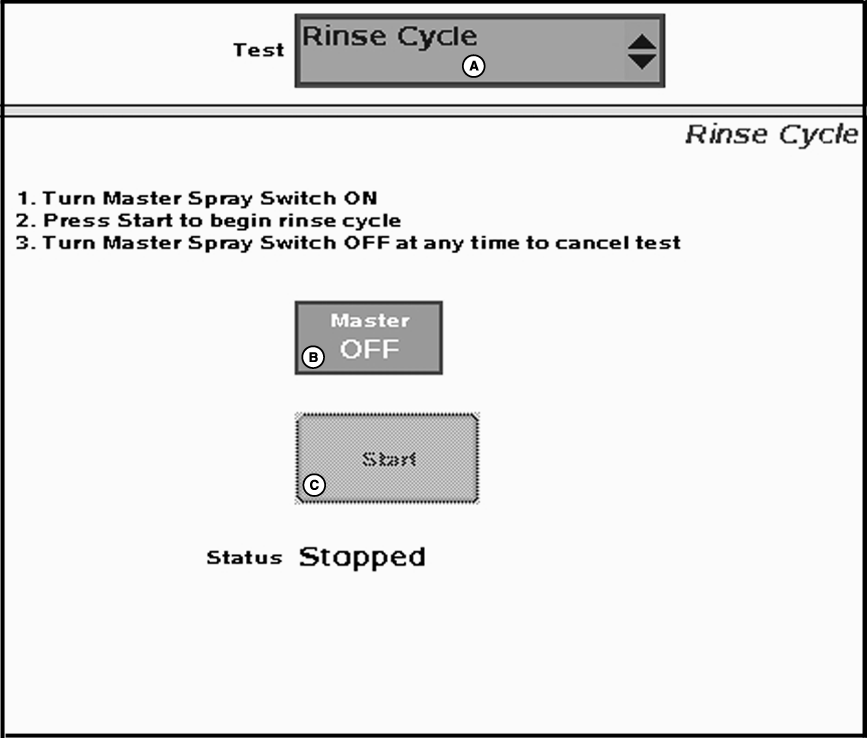

Rinse Cycle

A-Tests Drop-Down Menu
B-Master Switch Indicator
C-Start Rinse Cycle Button

NOTE: Rinse cycle is for use on sprayers and liquid fertilizer (not for use on NH3).

The operator can select a Rinse Cycle test, which will open all of the section and fence row valves and the flow control valve fully. After pressing the Start button, the system will run until the flow meter detects no flow.

IMPORTANT: Always fill the solution tank with clean water to do a proper rinse cycle.

NOTE: Master switch must be off to enter data.

To begin Rinse Cycle:

JS56696,000003B -19-05JUL07-1/2

1. Select Rinse Cycle from the tests drop-down menu.
2. Turn the Master Spray Switch ON
3. Press Start to begin rinse cycle.

4. Turn Master Spray Switch OFF at any time to cancel test.

JS56696,000003B -19-05JUL07-2/2
