Switch Box

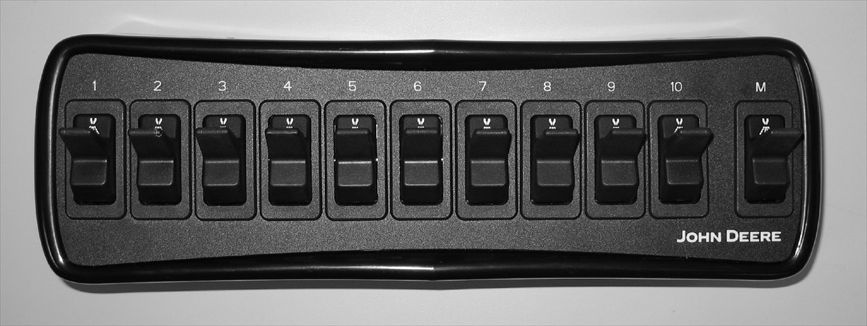

The purpose of the Optional Switch Box Controller (SBC) is to allow the operator to manually enable or disable individual implement sections rather than rely solely upon the display for these settings. The master switch permits the operator to shut off all of the implement sections. The master switch on the switch box serves the same purpose as the foot switch, and only one of the two is required for system operation.

Each switch will either control an implement section, fence row end nozzle, or master control. A foot switch is also available to act as a master control. The master control switch allows the operator to manually turn all implement sections on or off. Each switch controls one section. Switches 9 and 10 control fence row nozzles (if present). The master switch can be used to turn all sections off. Even if the master switch and implement section switches are on, implement sections must still be armed with the display in order to activate.
