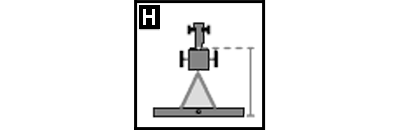

Receiver Offset

It is necessary to setup an inline receiver offset to fully utilize the functions of the GS2 Rate Controller.

A receiver inline offset is used to eliminate skips or overlaps due to an offset receiver, particularly Swath Control.

JS56696,0000073 -19-05JUL07-1/2

The equipment screen is used to record data by machine to document total area and hours. Equipment settings are also used for inputs on implement size, GPS receiver location, etc. Track spacing is used for machine guidance and coverage maps.

The GREENSTAR2 PRO - EQUIPMENT screen can contain up to four tabs:

Machine Tab

Implement 1 Tab

Implement 2 Tab (optional)

Implement 3 Tab (optional)

JS56696,0000073 -19-05JUL07-2/2
