System Speed Signal

The GS2 Rate Controller System requires an approved speed signal.

If the vehicle has no John Deere GPS receiver it will be necessary to install a radar based speed sensor.

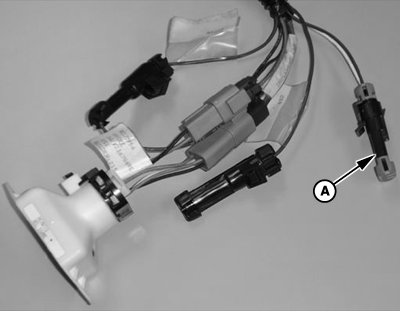

Use wire 211 (brown wire) in the 2-pin connector (A) to interface to the radar sensor.

A-2-Pin Connector

JS56696,00000E1 -19-05JUL07-1/1
