Energize System

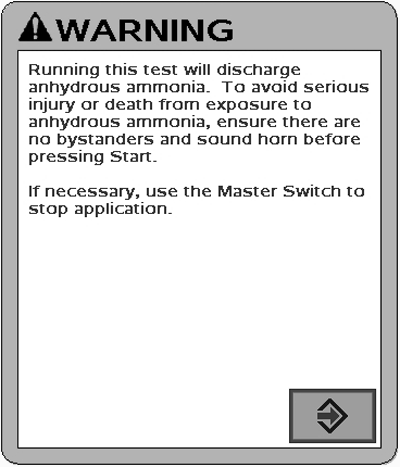

causym CAUTION: Running this test will discharge anhydrous ammonia. To avoid serious injury or death from exposure to anhydrous ammonia, ensure there are no bystanders and sound horn before pressing Start. If necessary, use the master switch to stop application.

This warning occurs when the Energize System test is selected on NH3 systems.

PC10198

JS56696,000025B -19-05JUL07-1/3

PC10166

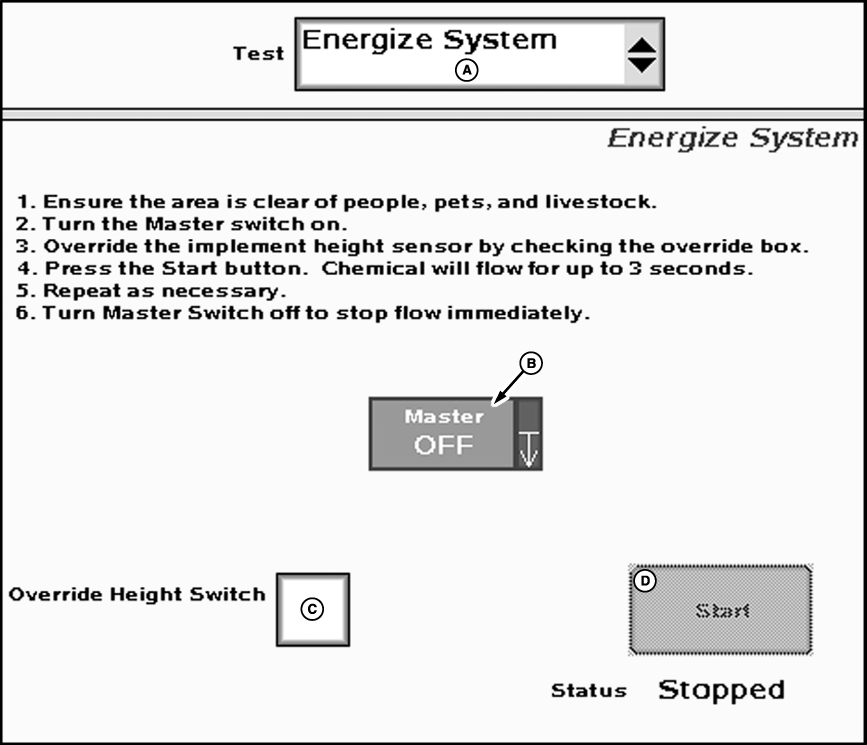

Energize System Test


A-Tests Drop-Down Menu


B-Master Switch Indicator/Implement Height Switch Indicator


C-Override Height Switch Box


D-Start Test Energize System Button

NOTE: Energize system is for use on NH3 (not for use on sprayers and liquid fertilizer).

The Energize System procedure is used to test for flow at the openers, purge air and vapor from the NH3 delivery system and fill the cooler and hoses with liquid anhydrous. Upon pressing the start button, the control valve and section valve(s) will be fully opened for three seconds, after which time they will automatically close. The Master Switch can be turned off at any time to

immediately force the valves to return to the closed position.

NOTE: Master switch must be off to enter data.

To begin Energize System test:

1. Select Energize System from the tests drop-down menu.
2. Check for bystanders before performing test.

JS56696,000025B -19-05JUL07-2/3

3. Turn the Master Switch ON
4. Check the override height switch box.
5. Press Start to begin the Energize System test.
6. Turn Master Spray Switch OFF at any time to cancel test.

NOTE: The override height switch box must be checked each time the test is run.

JS56696,000025B -19-05JUL07-3/3
