Implement Height Switch

The implement height switch prevents the Rate Controller from discharging product unless the implement is lowered into the ground.

An implement height switch is REQUIRED for NH3, liquid fertilizer, and planter applications. It is not required for sprayer applications.

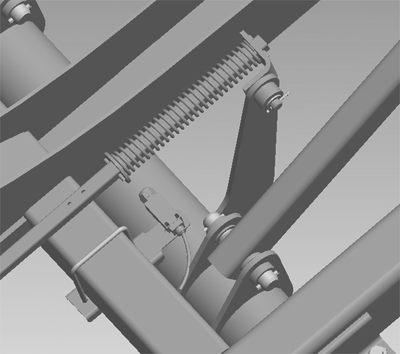

PC10226

Height Switch

JS56696,00002A0 -19-05JUL07-1/1
