System Components

NOTE: There is no power on/off switch for display. Power is applied when machine is turned on.

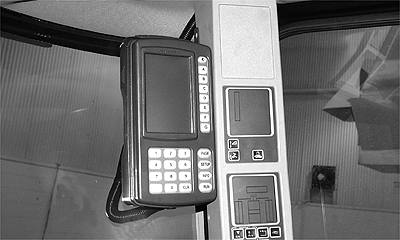

Display is located in cab and allows operator to view instantaneous system information from seat while operating machine. (See Display and Key Pad section for operating details).

OUO6050,0001EF6 -19-18OCT06-1/4

Mobile processor is assembled to the back of the display and has two main purposes; It is device that writes data to the PC Card for use with desktop software and accesses the key from the KeyCard to unlock application software.

PC Card is located in mobile processor while operating and will store up to 250 A-B lines when running with AutoTrac or Parallel Tracking. Please see Setup-Current Field in SETUP section. It provides a storage medium for all data acquired from system. PC Card will store data that can be easily transported to home office to download new data.

OUO6050,0001EF6 -19-18OCT06-2/4

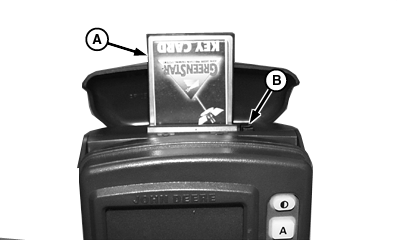

KeyCard (A) is used to load operating information for a particular system on to mobile processor and unlocks that software.

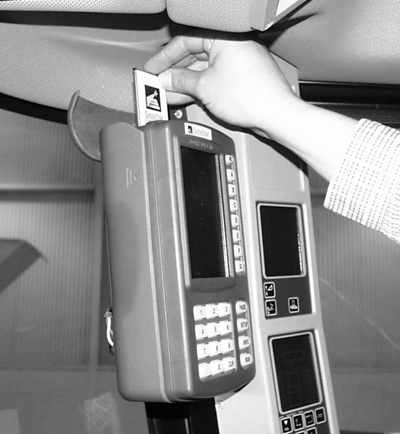

Insert KeyCard in either front or rear slot of mobile processor with label facing you and arrows on card aligned with arrows on processor case.

Press black button (B) and pull up on KeyCard to remove it from processor.

A-KeyCard
B-Black Button

OUO6050,0001EF6 -19-18OCT06-3/4

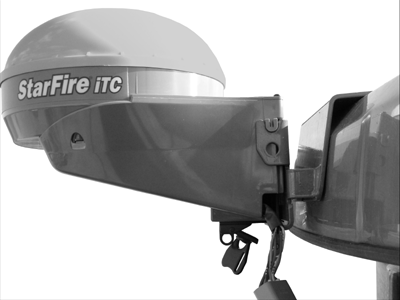

Position receiver is located on top of machine. Position receiver receives global positioning and differential correction signal through a single receiver and integrates signal for use with system.

Both Parallel Tracking and AutoTrac require a StarFire position receiver for GPS information.

OUO6050,0001EF6 -19-18OCT06-4/4
