Activating System
 CAUTION:
While AutoTrac is active operator is responsible for steering at end of path and collision avoidance.
After system has been ENABLED, operator must manually change system to ACTIVE status when steering assistance is desired.

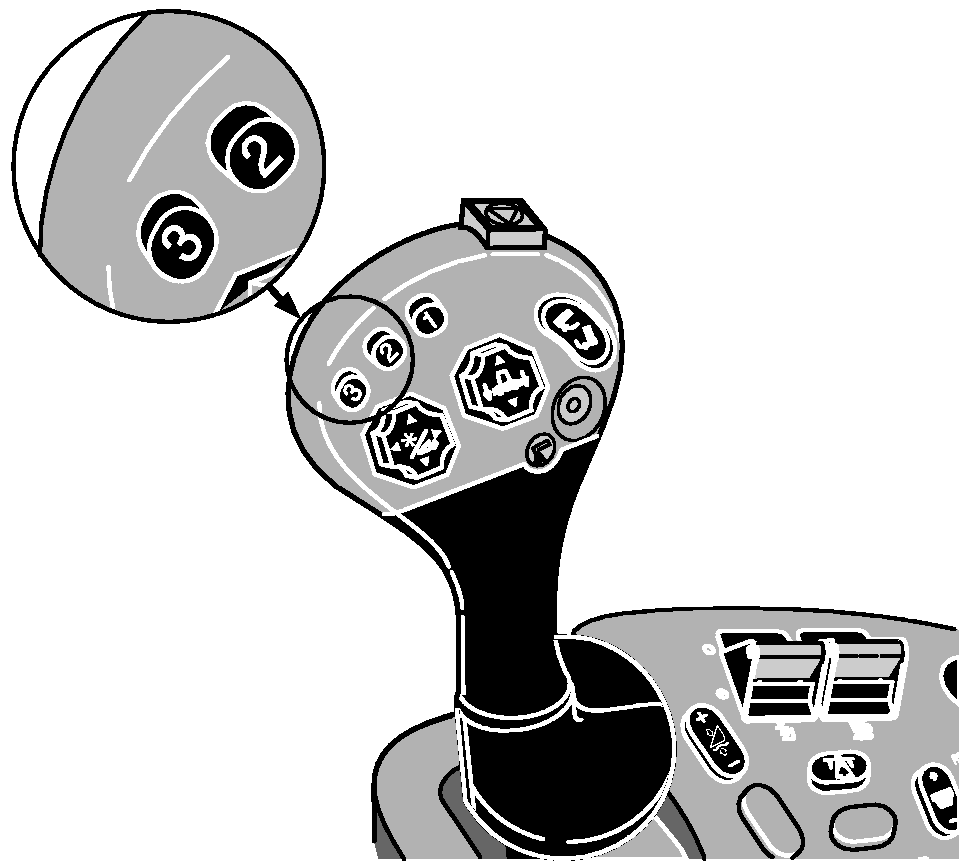

Press button 2 or 3 on multi-function handle to activate AutoTrac.
This will initiate assisted steering.
In order to activate system following criteria must be met:
-
Road Transport Switch is in field position.
-
Header is engaged.
-
Multi-function handle is forward.
-
Vehicle speed is greater than 1.0 km/h (0.6 mph).
-
Vehicle speed is less than 20 km/h (12 mph).
-
Vehicle heading is within 45° of desired track.
-
Off track error is within 40 % of track spacing.
-
Operator is seated.
-
TCM is on. (See Setup TCM for more information.)
CAUTION:
Always turn off (Deactivate) AutoTrac system before entering a roadway. Do not attempt to turn on (Activate) AutoTrac system while transporting on a roadway. To turn off AutoTrac, from RUN - TRACKING screen, toggle STEER button until OFF is displayed. (See DEACTIVATING SYSTEM for complete details on deactivating AutoTrac.)
