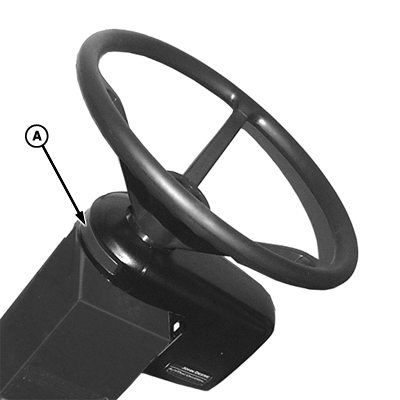

A-Resume Switch
B--

C--
D--

E-Steer
F-3D, SF2 Signal / Shift Track, Mark Point

G-Return

CAUTION: While AutoTrac is active operator is responsible for steering at end of path and collision avoidance.

After system has been ENABLED, operator must manually change system to ACTIVE status when steering assistance is desired.

Press resume switch (A). This will initiate assisted steering.

In order to activate system following criteria must be met:

• Vehicle speed is greater than 0.5 km/h (0.3 mph).

• Forward vehicle speed is less than

  Tractor - 30 km/h (18.6 mph)

  Sprayer - 37 km/h (23 mph)

  Combine - 22 km/h (13.6 mph)

• Reverse vehicle speed is less than 10 km/h (6.0 mph).
• Vehicle within 80° of desired track.
• Operator is seated.
• In reverse AutoTrac will remain active for 45 seconds. After 45 seconds the machine must be put in a forward gear before reverse will activate again.
• Machine within 40% of track spacing.
• AutoTrac knows direction of travel.

OUO6050,0001F30 -19-18OCT06-1/2

CAUTION: Always turn off (Deactivate) AutoTrac system before entering a roadway. Do not attempt to turn on (Activate) AutoTrac system while transporting on a roadway. To turn off AutoTrac, from RUN -

TRACKING screen toggle STEER button until OFF is displayed. (See Deactivating System for complete details on deactivating AutoTrac.)
