Once tractor is at end of row operator must turn system to next pass. By turning steering wheel, AutoTrac is deactivated. Operator must turn onto next track.

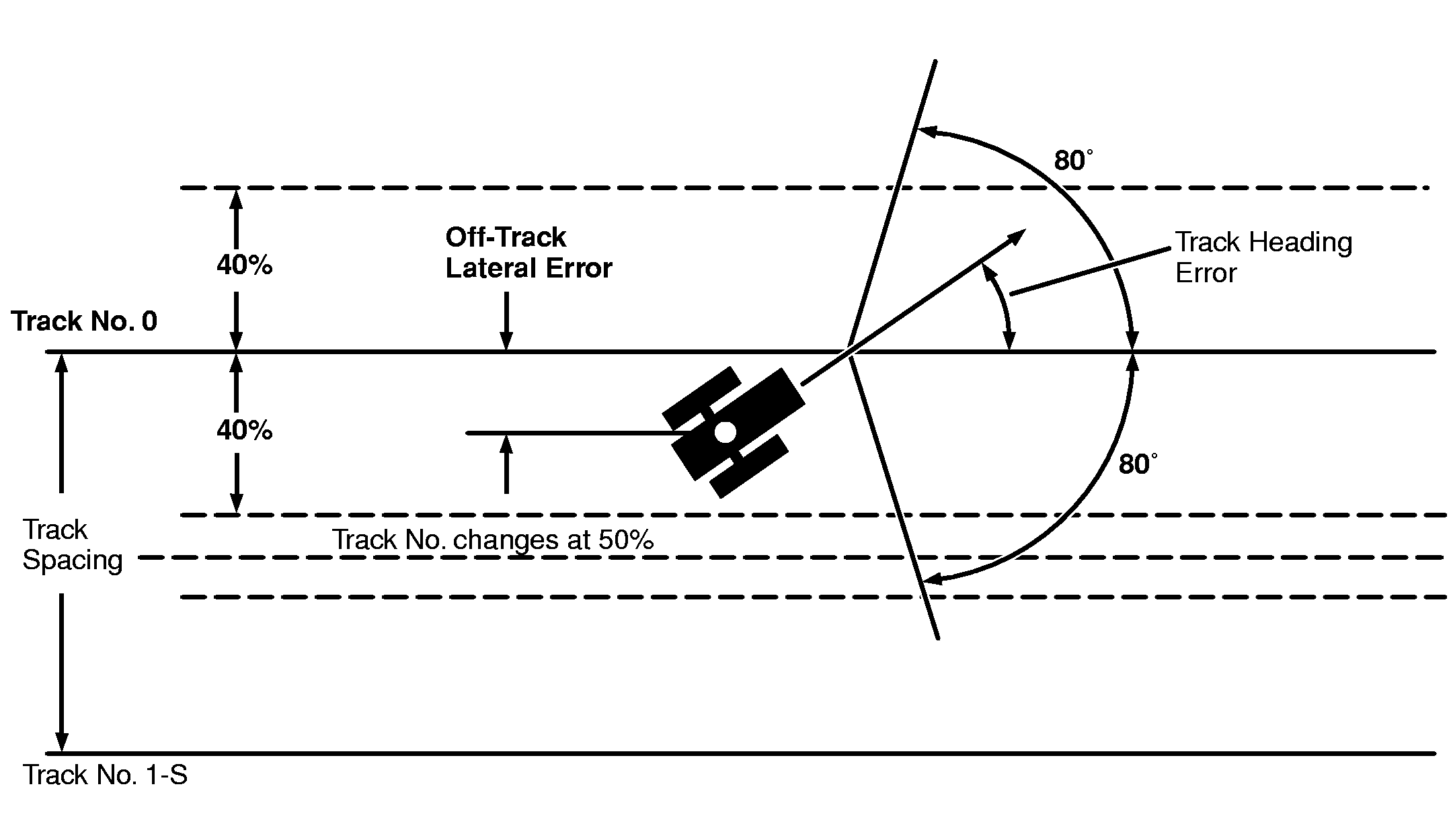

AutoTrac can be activated by pressing resume switch only after following conditions are met:

1. System is enabled (steering ON on RUN screen).
2. The machine is within 40% of track spacing.
3. Track heading is within 80° of track.

OUO6050,0001F32 -19-18OCT06-1/1
