INFO - DIAGNOSTIC - PAGE 1

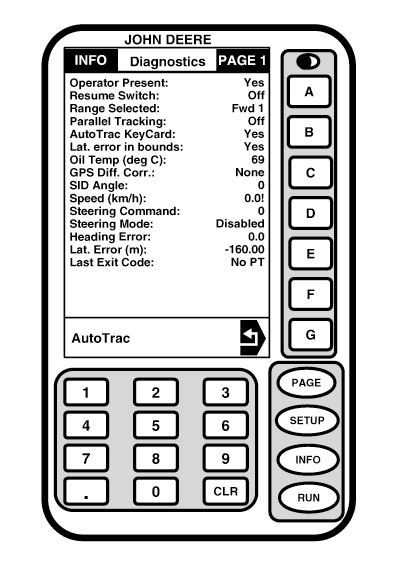

Screen:
INFO - DIAGNOSTICS - PAGE 1
Press:
INFO >> AUTOTRAC >> DIAGNOSTICS
1.
Turn ignition key to ACCESSORY\RUN position but DO NOT start engine.
2.
Go to INFO - DIAGNOSTICS - PAGE 1.
3.
Verify the following functions:
-
Insert keycard in mobile processor.
-
OPERATOR PRESENT displays YES and NO. Sit on seat, then stand up for 7 seconds to test operator presence switch.
-
RESUME SWITCH displays OFF and ON. Depress resume switch in front of hydro handle.
-
RANGE SELECTED displays FWD, PARK, and REV. Move hydro handle from forward position to park and reverse.
A-Operator Present, Resume Switch, Range Selected
B-Parallel Tracking, AutoTrac KeyCard, Lat. Error in Bounds
C-Oil Temp., GPS Differential Correction, SID Angle
D-Speed, Steering Command, Steering Mode
E-Heading Error, Lat. Error, Last Exit Code
F--
G-Return
|
|
