Devices

Screen: INFO - DEVICES

Press: INFO >> KEYCARD >> DEVICES ON CAN BUS

A-Devices on CAN Bus
B-Product Keys
C-Program Target
D-Target Languages
E-Diagnostics
F--
G-Return

OUO6050,0001F3B -19-29NOV06-1/8

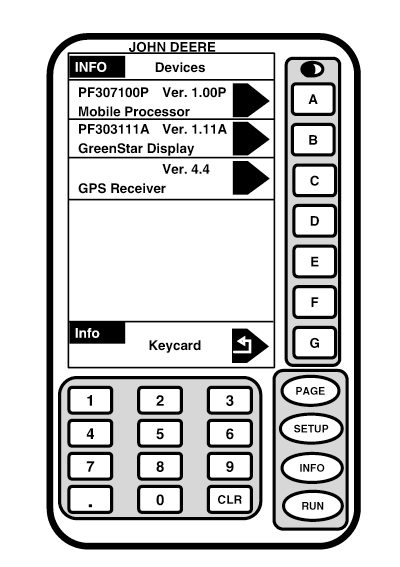

This screen shows devices currently connected to CAN bus. To access information on MOBILE PROCESSOR, GREENSTAR DISPLAY or GPS RECEIVER press desired selection button.

A-Mobile Processor Version
B-GreenStar Display Version
C-GPS Receiver Version
D--
E--
F--
G-Return

OUO6050,0001F3B -19-29NOV06-2/8

Screen: INFO - DEVICE INFO - PAGE 1

Screen: INFO - DEVICE INFO - PAGE 2

Press: INFO >> KEYCARD >> DEVICES ON CAN BUS >> MOBILE PROCESSOR

A-Mobile Processor, Device Part Number
B-Software Part Number, Software Version Number
C-Hardware Version Number, Loader Version Number
D-Serial Number, Equipment Type Number
E-Loader Part Number, Hardware Compat Version Number
F--
G-Return

OUO6050,0001F3B -19-29NOV06-3/8

NOTE: Press PAGE button to toggle between screens.

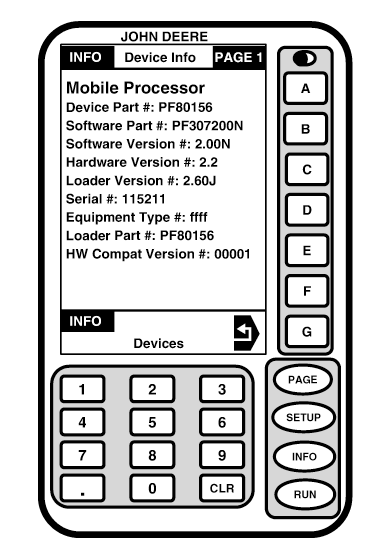

These screens show detailed information on mobile processor.

Device Part # -current part number for mobile processor.

Software Part # -current software part number for mobile processor.

Software Version # -current software version being used by mobile processor.

Hardware Version # -current hardware version being used by mobile processor.

Loader Version # -current loader software being used by mobile processor.

Serial # -current serial number of mobile processor.

Equipment Type # -unique identifier for application and is for factory use only.

Loader Part # -current loader software part number.

HW Compat Version # -for factory use only.

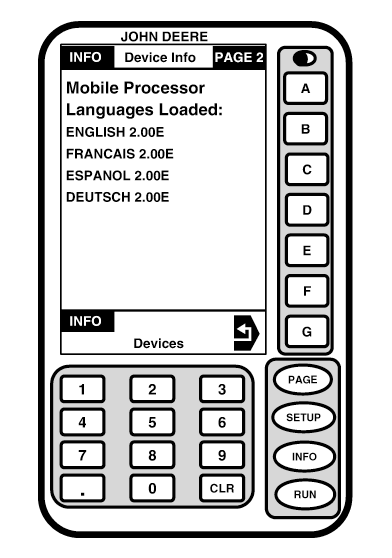

Languages Loaded -languages and version number currently loaded on processor.

A-Mobile Processor
B-Languages Loaded: English
C-Francais, Espanol
D-Deutsch
E--
F--
G-Return

OUO6050,0001F3B -19-29NOV06-4/8

Screen: INFO - DEVICE INFO - PAGE 1

Screen: INFO - DEVICE INFO - PAGE 2

Press: INFO >> KEYCARD >> DEVICES ON CAN BUS >> GREENSTAR DISPLAY

A-GreenStar Display, Device Part Number
B-Software Part Number, Software Version Number
C-Hardware Version Number, Loader Version Number
D-Serial Number, Equipment Type Number
E-Loader Part Number, HW Compat Version Number
F--
G-Return

OUO6050,0001F3B -19-29NOV06-5/8

NOTE: Press PAGE button to toggle between screens.

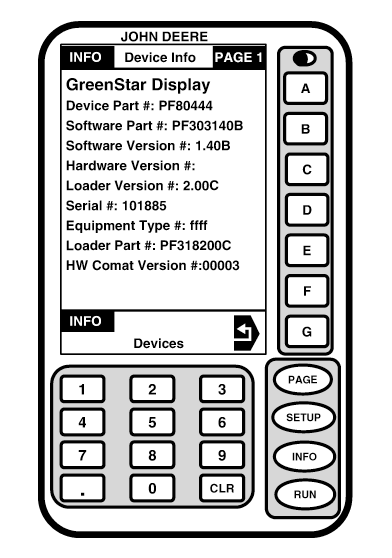

These screens show detailed information on GreenStar display.

Display Part # - Current part number for processor.

Software Part # - Current software part number being used by display.

Software Version # - Current software version being used by display.

Hardware Version # - Current hardware version being used.

Loader Version # - Current loader software being used by display.

Serial # - Current serial number of display.

Equipment Type # - Unique identifier for application and is for factory use only.

Loader Part # - Current loader software part number.

HW Compat Version # - For factory use only.

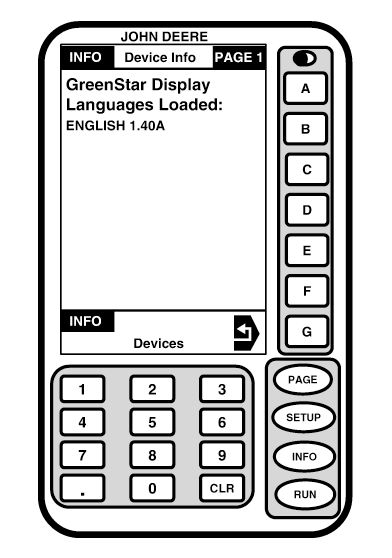

Languages Loaded - Languages and version number currently loaded on display.

A-Mobile Processor
B-Languages Loaded: English
C--
D--
E--
F--
G-Return

OUO6050,0001F3B -19-29NOV06-6/8

Screen: INFO - DEVICE INFO - PAGE 1

Screen: INFO - DEVICE INFO - PAGE 2

Press: INFO >> KEYCARD >> DEVICES ON CAN BUS >> GPS RECEIVER

A-GPS Receiver, Device Part Number
B-Software Part Number, Software Version Number
C-Hardware Version Number, Loader Version Number
D-Serial Number, Equipment Type Number
E-Loader Part Number, HW Compat Version Number
F--
G-Return

OUO6050,0001F3B -19-29NOV06-7/8

NOTE: Press PAGE button to toggle between screens.

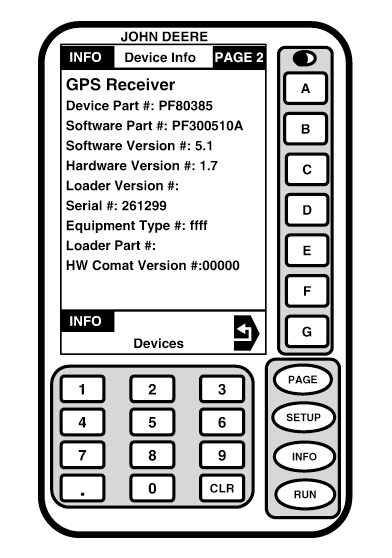

These screens show detailed information on GPS receiver.

Device Part # - Part number of GPS receiver.

Software Part # - Current software part number for GPS receiver.

Software Version # - Current software version being used by GPS receiver.

Hardware Version # - Current hardware version being used by GPS receiver.

Serial # - Current serial number of GPS receiver.

Equipment Type # - Unique identifier for application and is for factory use only.

Loader Part Number - Current loader software part number.

HW Compat Version # - For factory use only.

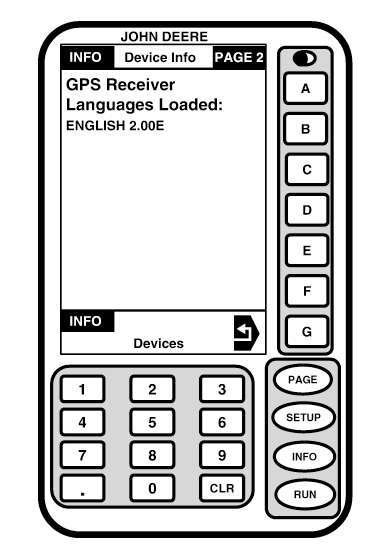

Languages Loaded - Languages and version number currently loaded on processor.

A-Mobile Processor
B-Languages Loaded: English
C--
D--
E--
F--
G-Return
