Program Target

Screen: INFO - PROGRAM TARGET

Press: INFO >> KEYCARD >> PROGRAM TARGET

A-Devices on CAN Bus
B-Product Keys
C-Program Target
D-Target Languages
E-Diagnostics
F--
G-Return

OUO6050,0001F3D -19-18OCT06-1/2

NOTE: The number of programs displayed on program target screen depends upon how many programs are loaded on KeyCard.

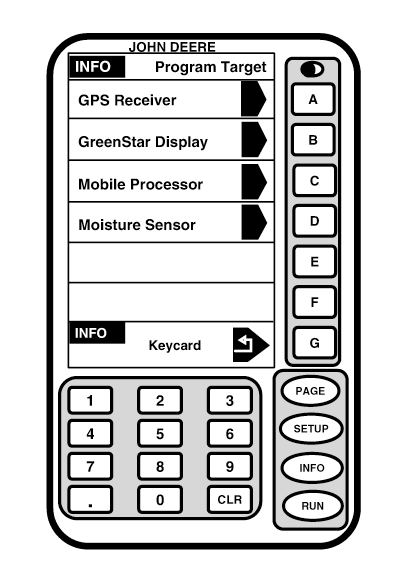

This screen allows operator to update software for mobile processor, display, GPS receiver, or moisture sensor. (See Re-programming To A Guidance System section for details).

A-GPS Receiver
B-GreenStar Display
C-Mobile Processor
D-Moisture Sensor
E--
F--
G-Return

OUO6050,0001F3D -19-18OCT06-2/2
