Diagnostics

Screen: INFO - DIAGNOSTICS

Press: INFO >> KEYCARD >> DIAGNOSTICS


A-Devices on CAN Bus
B-Product Keys
C-Program Target
D-Target Languages
E-Diagnostics
F--
G-Return

PC9643

OUO6050,0001F3E -19-18OCT06-1/2

This screen can be used to help troubleshoot system if a problem occurs.

  • High Voltage/Low Voltage

    High and low voltage as recorded by CAN bus.

  • Selected Layer/Bus Off Count

    Selected CAN bus layer.

  • Hardware Version/Serial Number

    Current hardware version and serial number of mobile processor.

  • Build

    Build number and build date of mobile processor software.

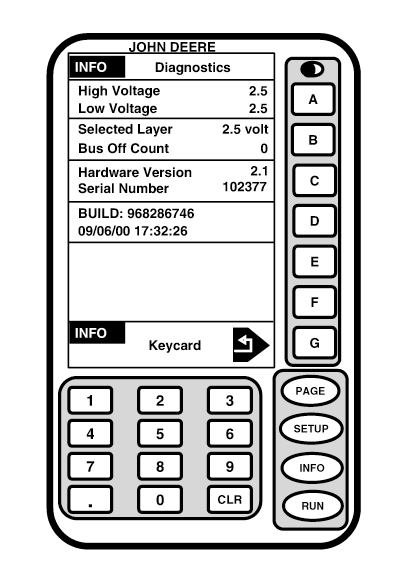

A-High Voltage / Low Voltage
B-Selected Layer / Bus Off Count
C-Hardware Version / Serial Number
D-Build Number / Build Date
E--
F--
G-Return

PC9499

OUO6050,0001F3E -19-18OCT06-2/2
