Display

Screen: INFO - DISPLAY - PAGE 1

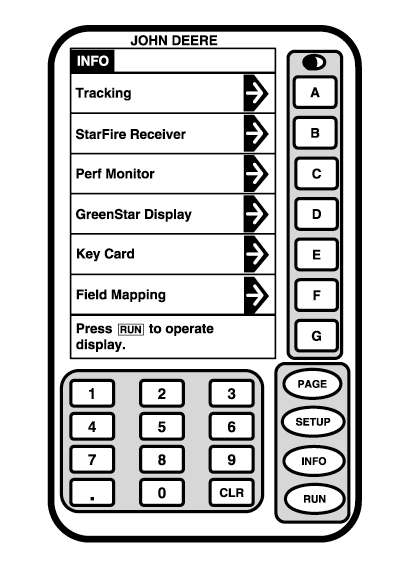

Press: INFO >> GREENSTAR DISPLAY

A-Tracking
B-StarFire Receiver
C-Perf Monitor
D-GreenStar Display
E-KeyCard
F-Field Mapping
G-Press Run to Operate Display

OUO6050,0001F40 -19-18OCT06-1/2

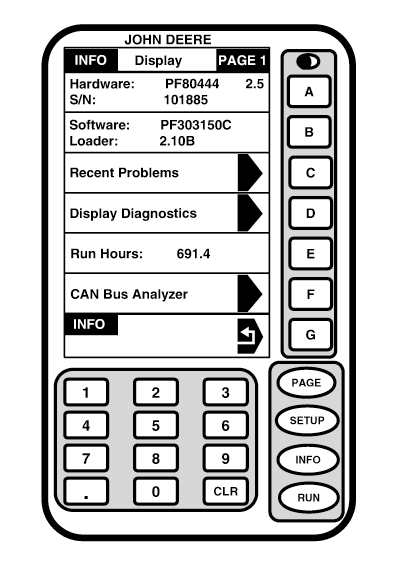

This screen shows detailed information about display. This information will help troubleshoot display if a problem occurs.

• Hardware/Serial Number

  This cell shows part number and serial number of display. It also shows CAN Bus Voltage being used by system (either 2.5 or 4.5).

• Software/Loader

  Software part number being used by display. This cell also shows version number of loader program being used by system.

• Run Hours

  This block shows current usage hours for display.

A-Hardware Number / Serial Number
B-Software Number / Loader Number
C-Recent Problems
D-Display Diagnostics
E-Run Hours
F-CAN Bus Analyzer
G-Return

OUO6050,0001F40 -19-18OCT06-2/2
